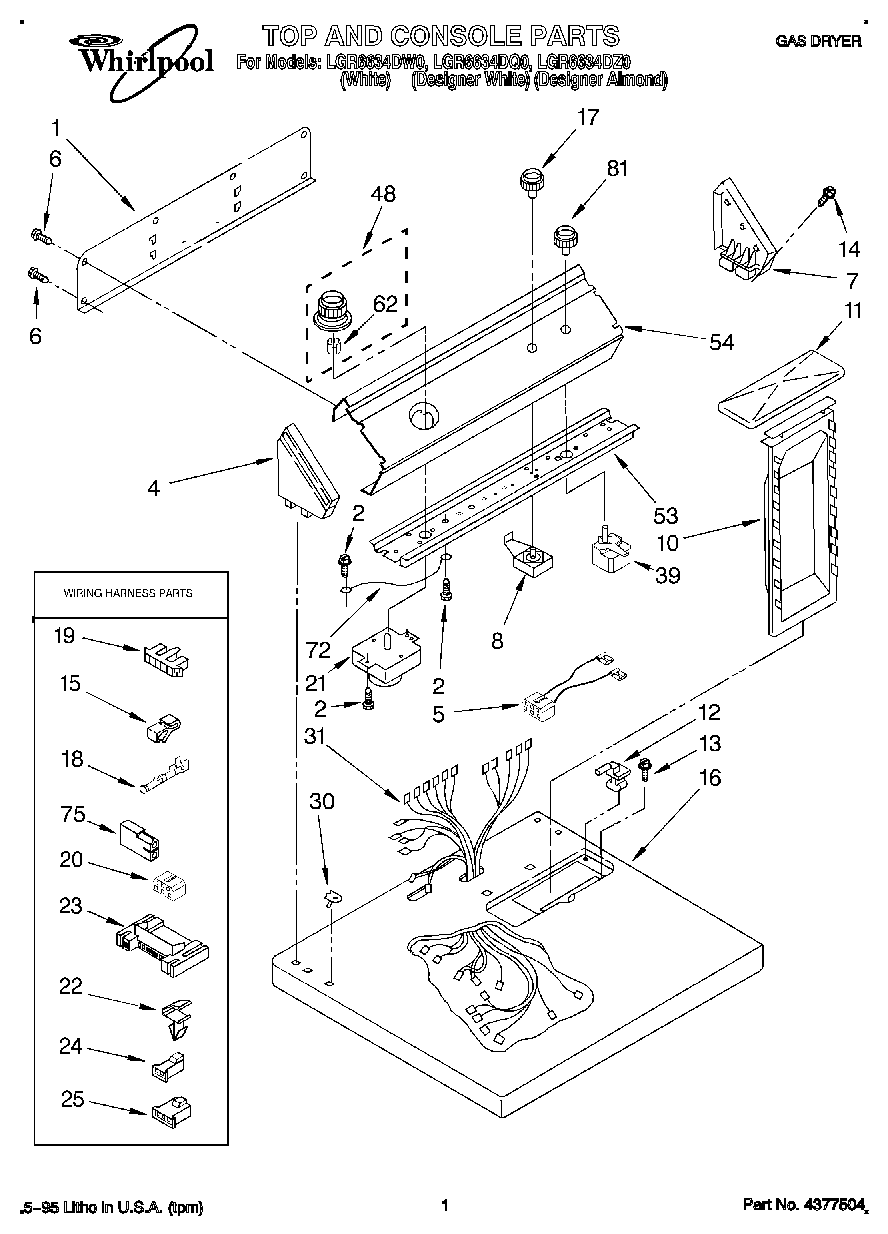

LGR6634DQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Installation
	Guide, Use & Care
	Almond (Uncut)
	Dryer
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Label, Wiring Diagram
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.)
5	8283286 Whirlpool Wire Harness
6	WP693995 Whirlpool Screw
7	Cap, End (R.H.) (White)
7	Cap, End (R.H.)
7	Cap, End (R.H.) (Almond)
8	3399638 Whirlpool Switch
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	Clip, Retainer
16	Top (White)
16	Top (Almond)
17	3957797 Whirlpool Knob
17	WP3957796 Whirlpool Knob
17	KNOB
18	WP94614 Whirlpool Terminal
19	Connector, Timer
20	Block, Disconnect
21	WP3976568 Whirlpool Timer
22	WP3394427 Whirlpool Clip
23	3395683 Whirlpool Connector
24	Connector, 2-Position (Gas Valve)
25	Connector, 3-Position (Gas Valve)
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	WP3395382 Whirlpool Push To Start Switch
48	WP3957752 Whirlpool Knob
48	3957753 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (LGR6634DQ1)
54	Panel, Control (LGR6634DW1)
54	Panel, Control (LGR6634DZ1)
62	WP688805 Whirlpool Spring Clip
72	Wire, Ground
75	Receptacle, Latching (2-Way) (Uses Terminal 94614)
81	WP3957800 Whirlpool Knob
81	Knob, Push To Start
