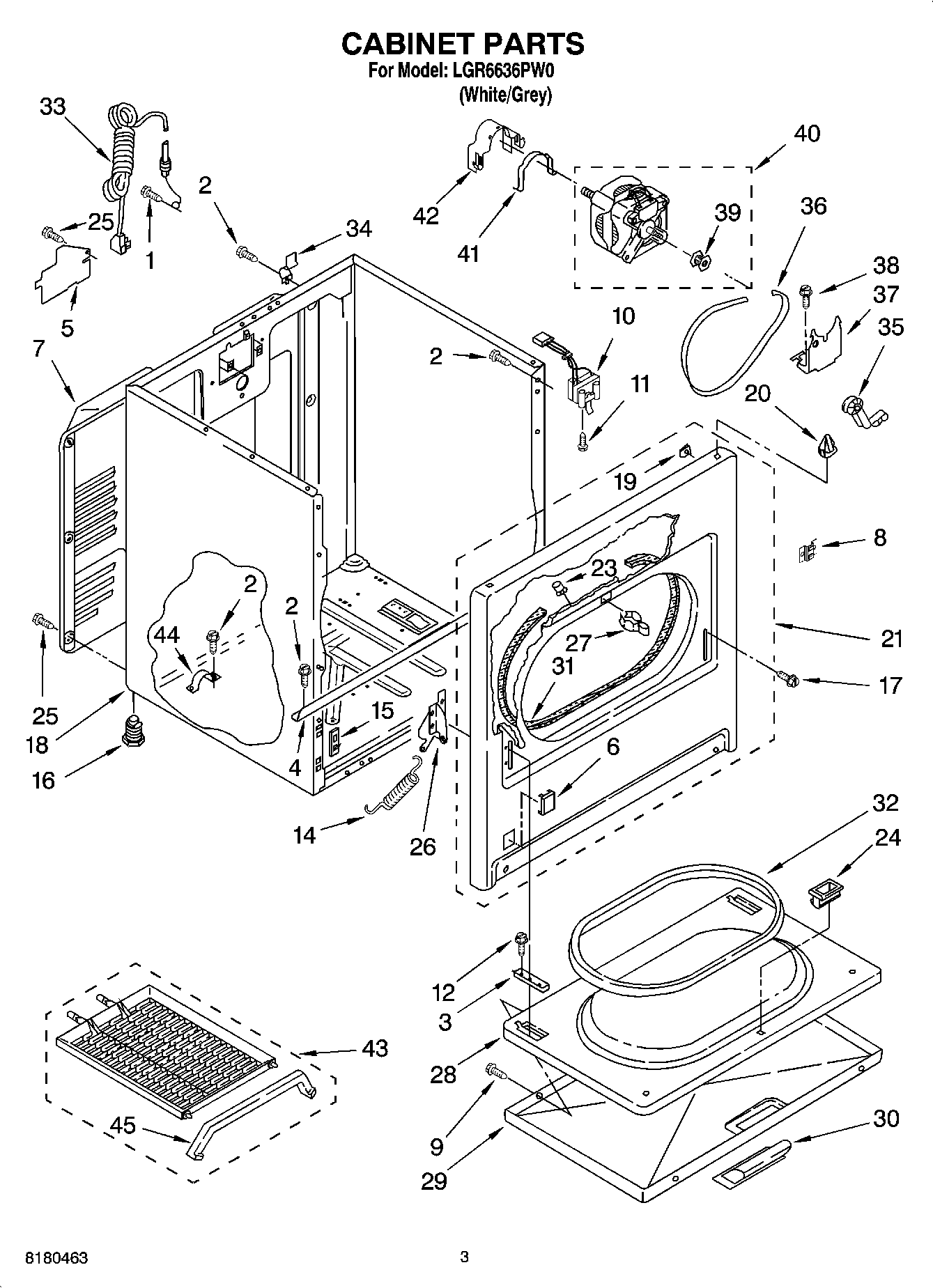

LGR6636PW0 02 – CABINET PARTS
Written by
in
LGR6636PW0 02 – CABINET PARTS
Products
Position
Product
1
W10850756 Whirlpool Screw
2
SCREW
3
W11252547 Whirlpool Clip Assembly
4
Bracket, Cabinet
5
W11539855 Whirlpool Refrigerator Pump
6
Plug, Front Panel (White)
7
280043 Whirlpool Rear Panel
8
8546676 Whirlpool Clip
9
WP694091 Whirlpool Screw
10
WP3406107 Whirlpool Dryer Door Switch
11
WP3395530 Whirlpool Screw
12
WP308685 Whirlpool Microwave Screw
14
8541401 Whirlpool Door Spring
15
W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16
49621 Whirlpool Leveling Feet
17
Screw, 10-32 x 1/2
18
8533643 Whirlpool Dryer White Cabinet
19
WP98234 Whirlpool Nut
20
WP18776 Whirlpool Lock
21
279740 Whirlpool Panel Primary with O/S2
23
279220 Whirlpool Clip
24
WP3389441 Whirlpool Door Catch
25
WP693995 Whirlpool Screw
26
WP8066057 Whirlpool Door Hinge
26
WP8066056 Whirlpool Door Hinge
27
279570 Whirlpool Dryer Door Latch Kit
28
WP695737 Whirlpool Door
29
WP3393549 Whirlpool Door Assembly
30
WP348721 Whirlpool Handle
31
W11035878 Whirlpool Bearing and Seal
32
W10906683 Whirlpool Door Seal
33
W11222083 Whirlpool Power Cord
34
WP8066217 Whirlpool Hinge
35
WP691366 Whirlpool Dryer Idler Pulley Assembly
36
341241 Whirlpool Dryer Drum Belt
37
WP348780 Whirlpool Base
38
3400500 Whirlpool Screw
39
WP8066184 Whirlpool Dryer Motor Pulley
40
279827 Whirlpool Dryer Drive Motor
41
WP660658 Whirlpool Clamp
42
WP3404162 Whirlpool Clamp
43
3406839 Whirlpool Drying Rack
44
341029 Whirlpool Clamp
45
Bracket, Dryer Rack
←
