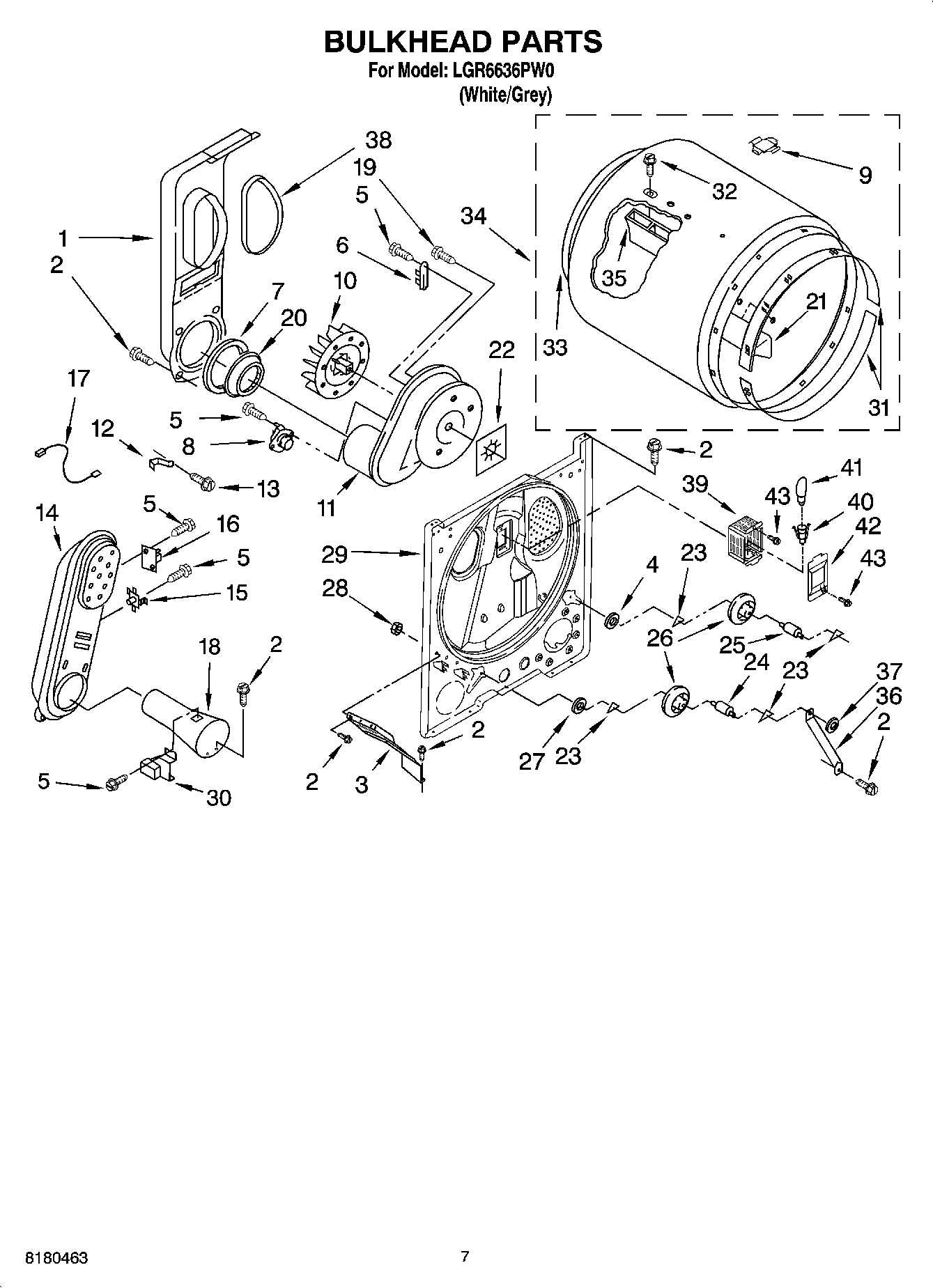

LGR6636PW0 04 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	SCREW
3	W11398682 Whirlpool Bracket
4	WP3388703 Whirlpool Washer
5	WP90767 Whirlpool Screw
6	WP3392519 Whirlpool Dryer Thermal Fuse
7	W11415783 Whirlpool Seal
8	WP3387134 Whirlpool Dryer Cycling Thermostat
9	8066086 Whirlpool Plug
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	WP489463 Whirlpool Refrigerator Screw
14	279980 Whirlpool Box
16	W11050897 Whirlpool Dryer High Limit Thermostat
17	WP3401707 Whirlpool Wire Assembly
18	WP8066049 Whirlpool Funnel Assembly
19	WP488729 Whirlpool Refrigerator Door Screw
20	W11233063 Whirlpool Shield Assembly
21	WP3403636 Whirlpool Drum Baffle
22	Seal, Blower
23	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
24	SHAFT SUPPORT ROLLER DRYER
25	SHAFT SUPPORT ROLLER DRYER
26	349241T Whirlpool Dryer Drum Support Roller Kit
27	WP348197 Whirlpool Washer Assembly
28	WP3359452 Whirlpool Nut
29	W10828431 Whirlpool Oven Bulkhead
30	WP338906 Whirlpool Dryer Gas Sensor
31	279441 Whirlpool Front Bearing Ring
32	WPW10109200 Whirlpool Screw
33	W10612022 Whirlpool Felt Seal
34	W10899578 Whirlpool Dryer Drum Assembly
35	BAFFLE-DRM
36	W11684613 Whirlpool Bracket
37	WP90296 Whirlpool Clip
38	SEAL
39	3977373 Whirlpool Bracket
40	W11700522 Whirlpool Socket
41	WP22002263 Whirlpool Dryer 10W Light Bulb
42	W11226088 Whirlpool Lens Assembly
