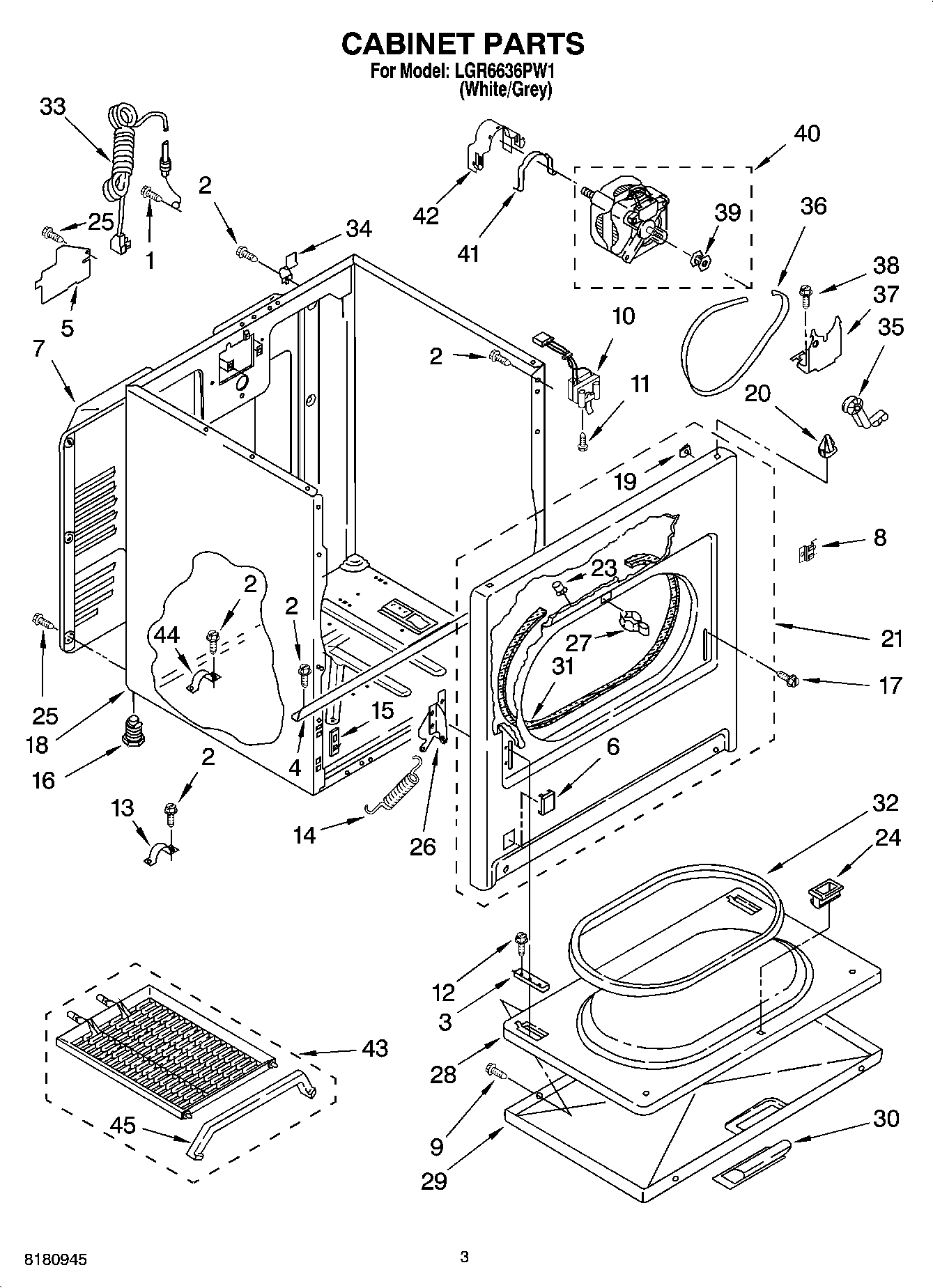

LGR6636PW1 02 – CABINET PARTS

Products

PositionProduct
1W10850756 Whirlpool Screw
2SCREW
3W11252547 Whirlpool Clip Assembly
4Bracket, Cabinet
5W11539855 Whirlpool Refrigerator Pump
6Plug, Front Panel (White)
7280043 Whirlpool Rear Panel
88546676 Whirlpool Clip
9WP694091 Whirlpool Screw
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
12WP308685 Whirlpool Microwave Screw
13341029 Whirlpool Clamp
148541401 Whirlpool Door Spring
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
17Screw, 10-32 x 1/2
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21279740 Whirlpool Panel Primary with O/S2
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
25WP693995 Whirlpool Screw
26WP8066057 Whirlpool Door Hinge
26WP8066056 Whirlpool Door Hinge
27279570 Whirlpool Dryer Door Latch Kit
28WP695737 Whirlpool Door
29WP3393549 Whirlpool Door Assembly
30WP348721 Whirlpool Handle
31W11035878 Whirlpool Bearing and Seal
32W10906683 Whirlpool Door Seal
33W11222083 Whirlpool Power Cord
34WP8066217 Whirlpool Hinge
35WP691366 Whirlpool Dryer Idler Pulley Assembly
36341241 Whirlpool Dryer Drum Belt
37WP348780 Whirlpool Base
383400500 Whirlpool Screw
39WP8066184 Whirlpool Dryer Motor Pulley
40279827 Whirlpool Dryer Drive Motor
41WP660658 Whirlpool Clamp
42WP3404162 Whirlpool Clamp
433406839 Whirlpool Drying Rack
45Bracket, Dryer Rack
