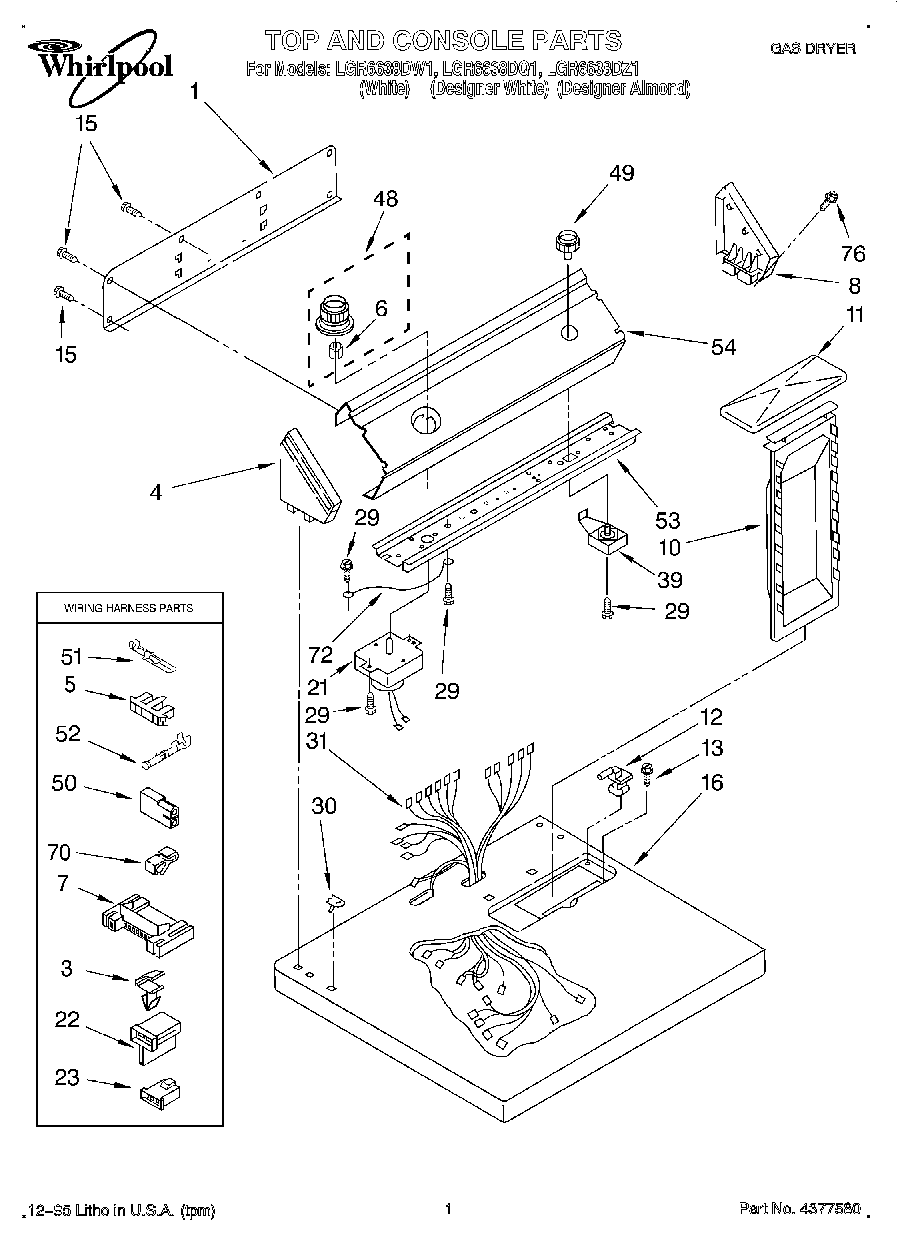

LGR6638DW1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Label, Wiring Diagram
	Guide, Use & Care
	Dryer
	Instructions, Installation
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
1	Panel, Rear Console
3	WP3394427 Whirlpool Clip
4	Cap, End (L.H.)
4	Cap, End (L.H.)
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (White)
5	Connector, Timer
6	WP688805 Whirlpool Spring Clip
7	3395683 Whirlpool Connector
8	Cap, End (R.H.)
8	Cap, End (R.H.) (White)
8	Cap, End (R.H.)
8	Cap, End (R.H.) (Almond)
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
15	WP693995 Whirlpool Screw
16	Top (Almond)
16	Top (White)
21	WP3976569 Whirlpool Timer
22	WP3403499 Whirlpool Connector
23	WP3403498 Whirlpool Connector
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	WP3395382 Whirlpool Push To Start Switch
48	WP3957752 Whirlpool Knob
48	3957753 Whirlpool Knob
48	Timer Knob Assembly
49	Knob, Push To Start
49	WP3957800 Whirlpool Knob
49	Knob, Push To Start
50	Receptacle, Latching (2-Way) (Uses Terminal 94614)
51	WP596797 Whirlpool Terminal
52	WP94614 Whirlpool Terminal
53	Bracket, Control
54	WPL ARI157029A
54	Panel, Control (LGR6638DZ0)
54	Panel, Control (LGR6638DQ0)
54	Panel, Control (LGR6638DW0)
70	Clip, Retainer
72	Wire, Ground
76	WP388326 Whirlpool Screw
