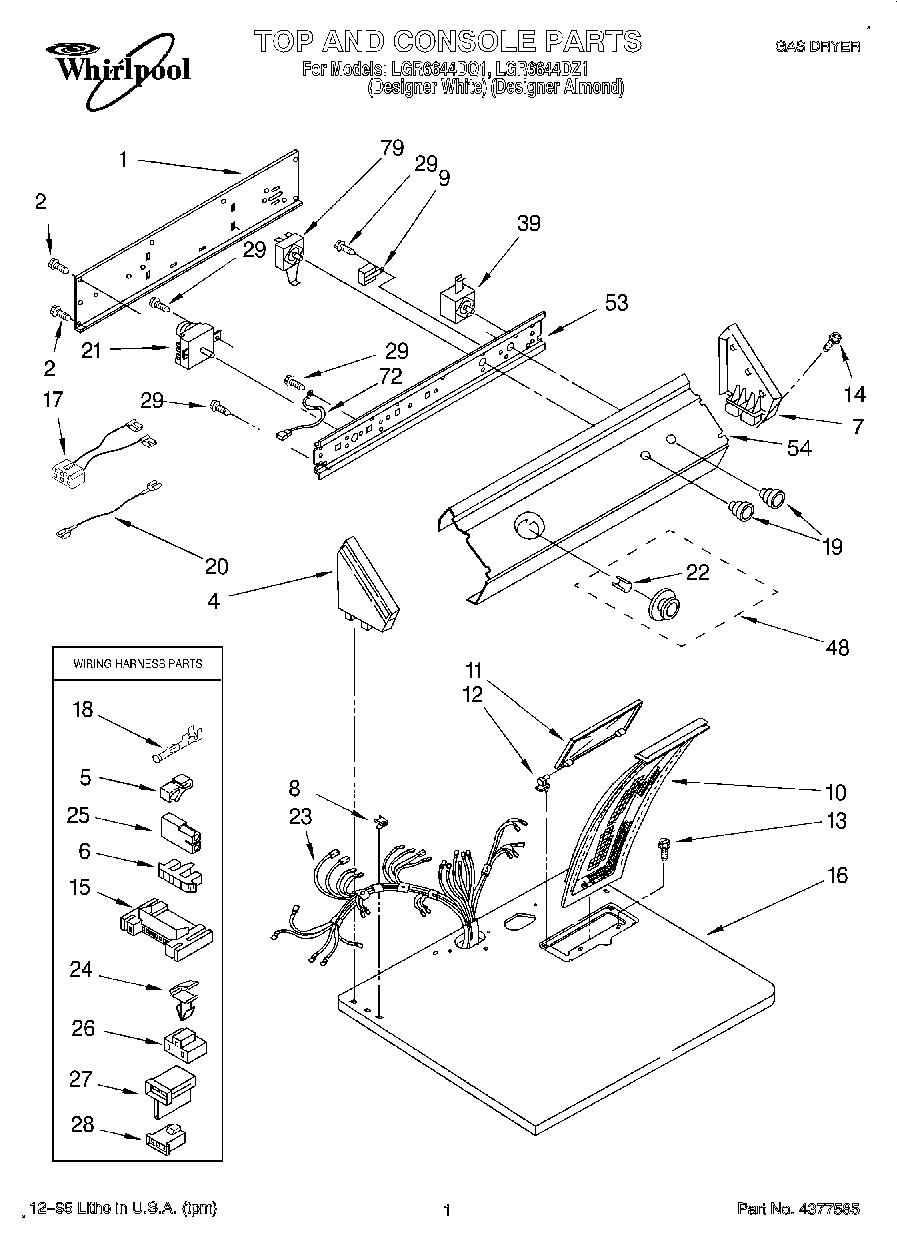

LGR6644DZ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Label, Wiring Diagram
Instructions, Installation
Guide, Use & Care
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
Dryer
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
1Panel, Rear Console
2WP693995 Whirlpool Screw
4Cap, End (L.H.)
4Cap, End (L.H.) (Almond)
5Clip, Retainer
6Connector, Timer
7Cap, End (R.H.)
7Cap, End (R.H.) (Almond)
8WP357213 Whirlpool Hinge Stopper
9WP694419 Whirlpool Buzzer Adjuster
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
153395683 Whirlpool Connector
16Top (Almond)
16Top (White)
178539893 Whirlpool Wire Harness
18WP94614 Whirlpool Terminal
19WP3957796 Whirlpool Knob
193957797 Whirlpool Knob
20Wire, Jumper (Black)
21WP3976574 Whirlpool Timer
22WP688805 Whirlpool Spring Clip
23Harness, Wiring
24WP3394427 Whirlpool Clip
25Receptacle, Latching (2-Way) (Uses Terminal 94614)
263401144 Whirlpool Connector
27WP3403499 Whirlpool Connector
28WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
39WP3398095 Whirlpool Dryer Start Relay
48WP3957752 Whirlpool Knob
483957753 Whirlpool Knob
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Almond)
72Wire, Ground
79WP3399639 Whirlpool Switch
