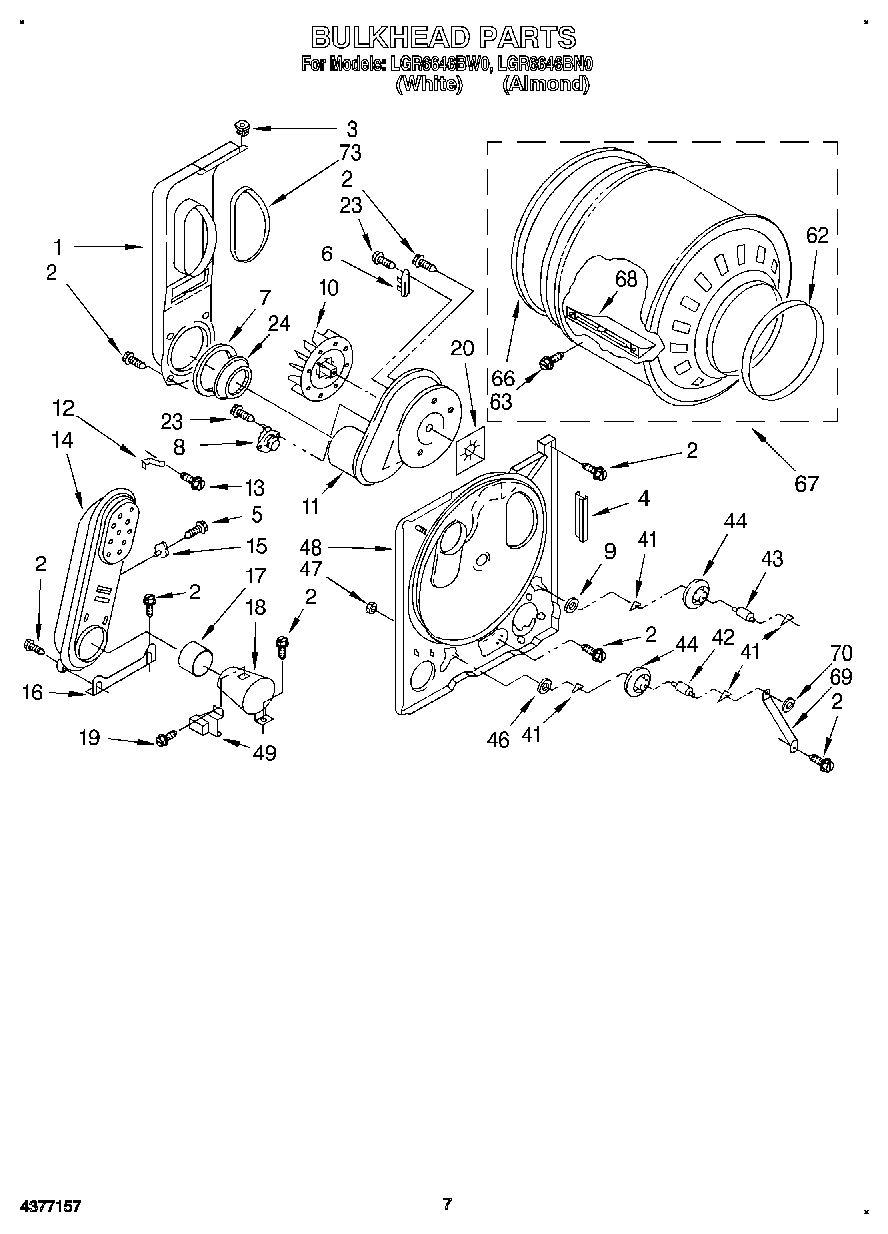

LGR6646BN0 04 – BULKHEAD

LGR6646BN0 04 – BULKHEAD

Written by

in

LGR6646BN0 04 – BULKHEAD

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
2SCREW
398460 Whirlpool Nut
4686889 Whirlpool Pad
5WP90767 Whirlpool Screw
6WP3392519 Whirlpool Dryer Thermal Fuse
7W11415783 Whirlpool Seal
8WP3387134 Whirlpool Dryer Cycling Thermostat
9WP3388703 Whirlpool Washer
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
15W11568973 Whirlpool Thermostat Fix
16Support, Heater Box
18279900 Whirlpool Box O/S1
19WP3390631 Whirlpool Screw
20Seal, Blower
23WP965173 Whirlpool Dishwasher Screw
24W11233063 Whirlpool Shield Assembly
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48Bulkhead
49WP338906 Whirlpool Dryer Gas Sensor
62WP3394509 Whirlpool Bearing Ring
63WPW10109200 Whirlpool Screw
66Seal, Rear Drum
67Drum Assembly
68WP342847 Whirlpool Drum Baffle
69Bracket, Support
70WP90296 Whirlpool Clip
73Seal
