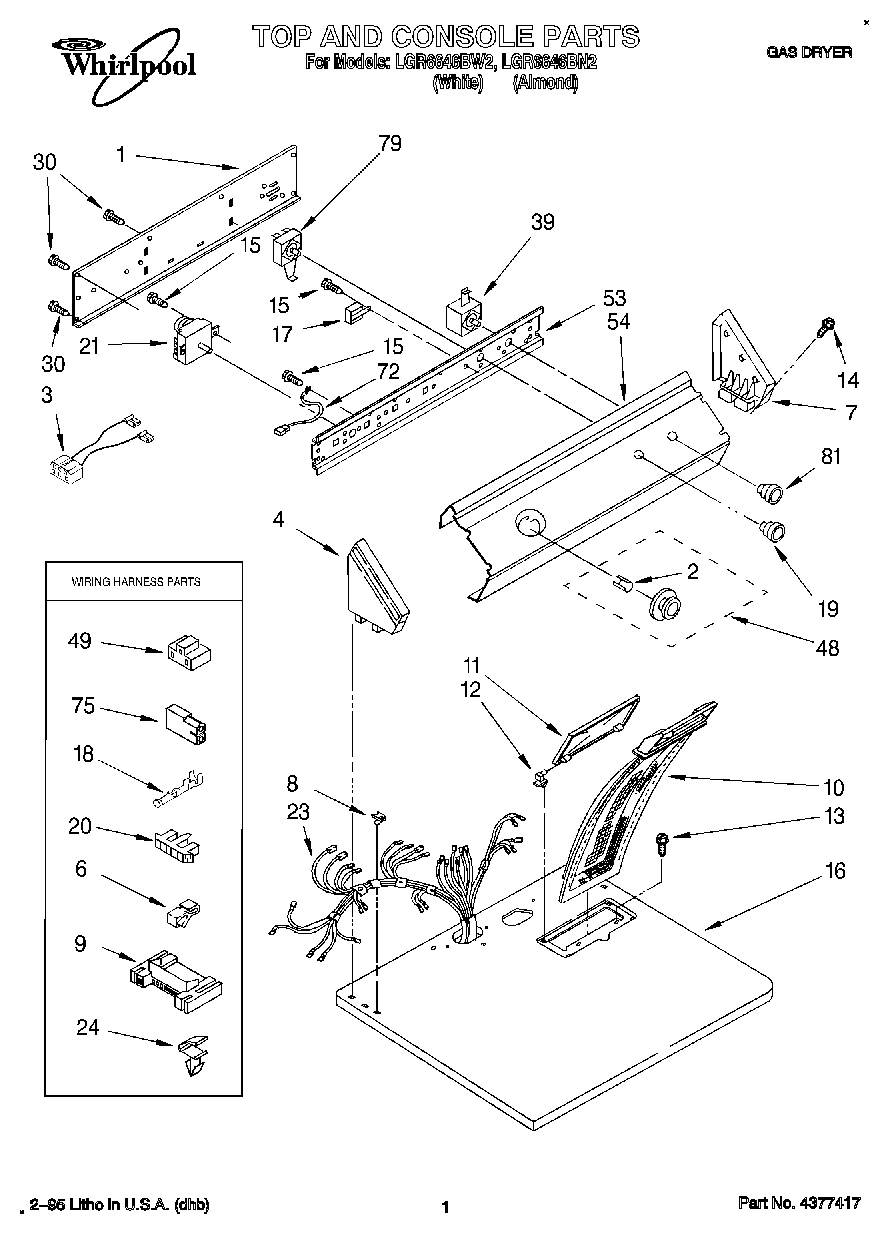

LGR6646BN2 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGR6646BN2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGR6646BN2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Label, Wiring Diagram
Almond (Uncut)
Dryer
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
Instructions, Installation
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
Guide, Use & Care
1Panel, Rear Console
2WP688805 Whirlpool Spring Clip
38539893 Whirlpool Wire Harness
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.) (White)
6Clip, Retainer
7Cap, End (R.H.) (Almond)
7Cap, End (R.H.) (White)
8WP357213 Whirlpool Hinge Stopper
93395683 Whirlpool Connector
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WPW10139210 Whirlpool Screw
16Top (White)
16Top (Almond)
17WP694419 Whirlpool Buzzer Adjuster
18WP94614 Whirlpool Terminal
19KNOB
20Connector, Timer
21WP3976574 Whirlpool Timer
23Harness, Wiring
24WP3394427 Whirlpool Clip
30WP693995 Whirlpool Screw
39WP3398094 Whirlpool Push To Start Switch
48WP3957752 Whirlpool Knob
493401144 Whirlpool Connector
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Almond)
72Wire, Ground
75Receptacle, Latching (2-Way) (Uses Terminal 94614)
79WP3399639 Whirlpool Switch
81Knob, Push To Start
