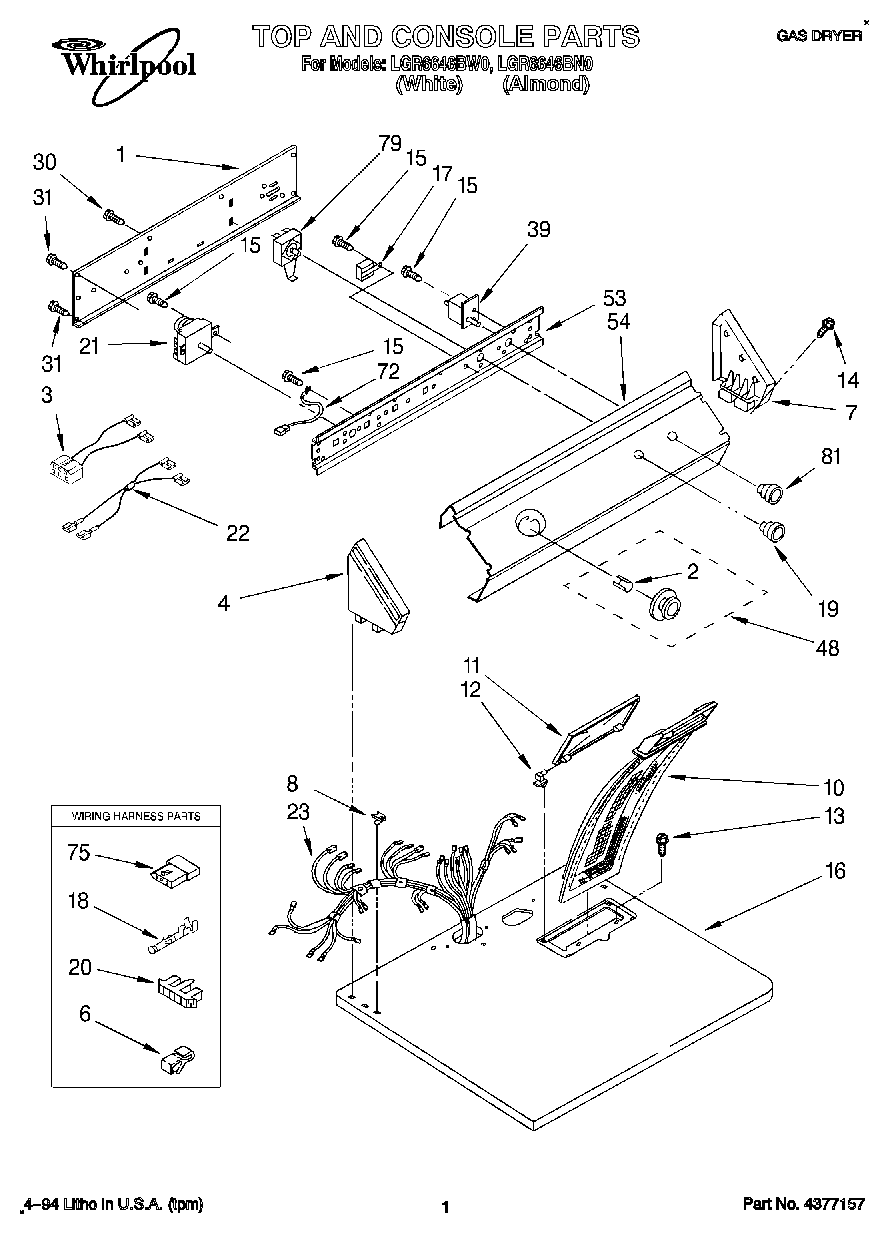

LGR6646BW0 01 – TOP AND CONSOLE, LIT/OPTIONAL
Written by
in
LGR6646BW0 01 – TOP AND CONSOLE, LIT/OPTIONAL
Products
Position
Product
350930 Whirlpool White Spray Paint
Almond (Uncut)
Instructions, Installation
Leveler (Thinner)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
Guide, Use & Care
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Dryer
350938 Whirlpool Spray Gun
Label, Wiring Di
1
Panel, Rear Console
2
WP688805 Whirlpool Spring Clip
3
8539893 Whirlpool Wire Harness
4
Cap, End (L.H.) (Almond)
4
Cap, End (L.H.) (White)
6
Clip, Retainer
7
Cap, End (R.H.) (Almond)
7
Cap, End (R.H.) (White)
8
WP357213 Whirlpool Hinge Stopper
10
WP349639 Whirlpool Lint Filter
11
Cover, Lint Screen (Almond)
11
Cover, Lint Screen (White)
12
WPW10044470 Whirlpool Hinge Assembly
12
WPW10044480 Whirlpool Hinge Assembly
13
W11693756 Whirlpool Screw Assembly
14
WP388326 Whirlpool Screw
15
WPW10139210 Whirlpool Screw
16
Top (White)
16
Top (Almond)
17
WP694419 Whirlpool Buzzer Adjuster
18
WP94614 Whirlpool Terminal
19
KNOB
20
Connector, Timer
21
WP3396047 Whirlpool Timer
22
Wire Jumper Assembly
23
Harness, Wiring
30
WP693995 Whirlpool Screw
31
WP489069 Whirlpool Compactor Screw
39
Relay, Push-To-Start
48
WP3957752 Whirlpool Knob
53
Bracket, Control
54
Panel, Control (White)
54
Panel, Control (Almond)
72
Wire, Ground
75
Receptacle, 3-Way Terminal (Use W/94614)
79
WP3399639 Whirlpool Switch
81
Knob, Push To Start
←
