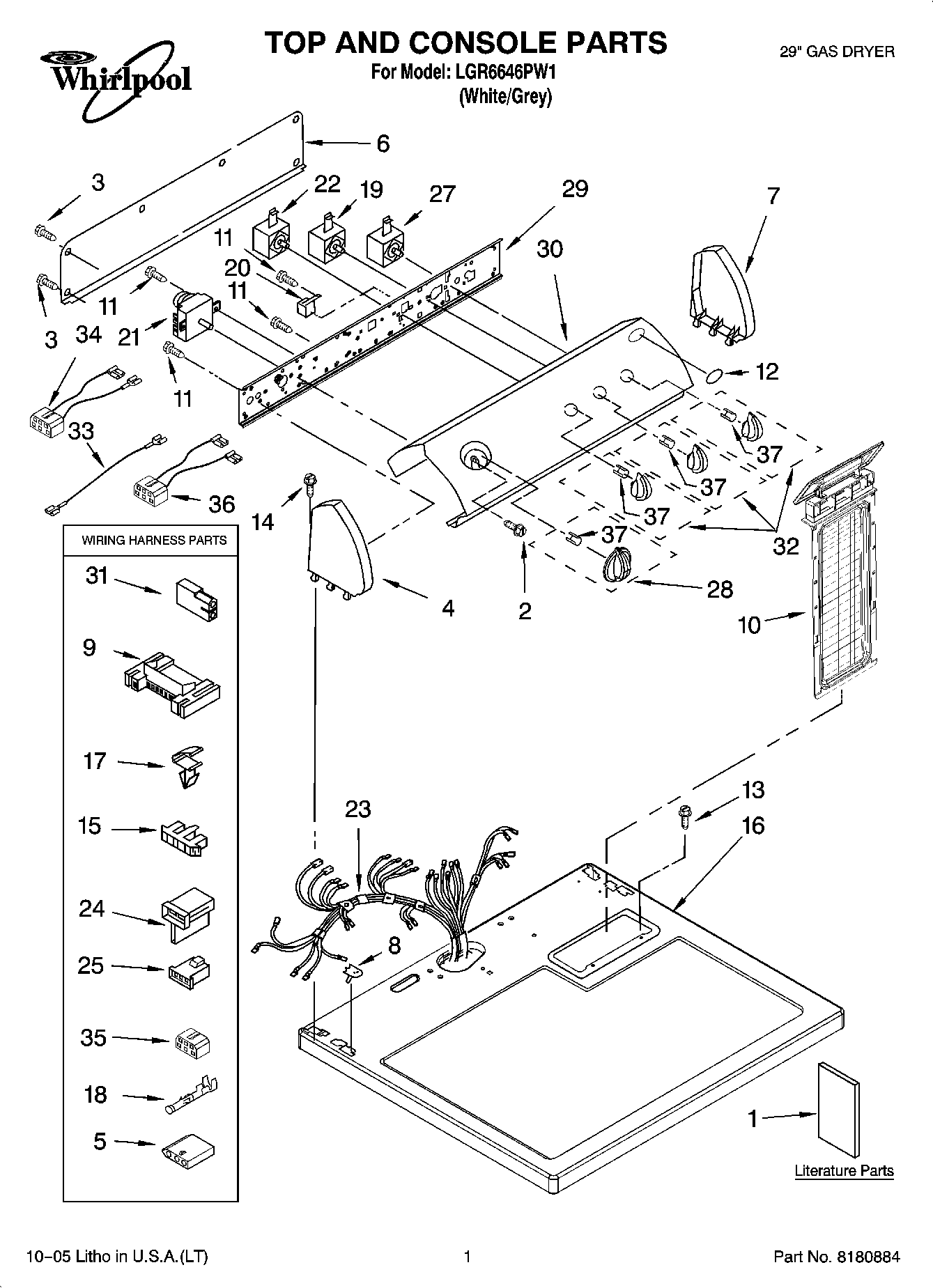

LGR6646PW1 01 – TOP AND CONSOLE PARTS

LGR6646PW1 01 – TOP AND CONSOLE PARTS

Written by

in

LGR6646PW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1Sheet, Cycle Feature
1DO-IT-YOURSELF REPAIR MANUALS
1WPL 677818
1Instructions, Installation
1Use & Care Guide
1Following May Be Purchased
23400859 Whirlpool Screw
3WP693995 Whirlpool Screw
53936144 Whirlpool Connector
6W10103406 Whirlpool Rear Panel
7W10820038 Whirlpool Endcap
8WP357213 Whirlpool Hinge Stopper
93395683 Whirlpool Connector
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP90767 Whirlpool Screw
12WPL 3400985
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15Connector, Timer
16Top
17WP3394427 Whirlpool Clip
18WP94614 Whirlpool Terminal
19WP3405156 Whirlpool Switch
20WP694419 Whirlpool Buzzer Adjuster
21WP8299766 Whirlpool Timer Assembly
22WP3399639 Whirlpool Switch
238299879 Whirlpool Wire Harness
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
27WP3398095 Whirlpool Dryer Start Relay
28WPL 8544957
29Bracket, Control
30Panel, Control (Includes Illus. 12)
31Receptacle, Latching (2-Way) (Uses Terminal 94614)
32WPL 8544937
33Wire, Jumper (Black)
343397695 Whirlpool Wire Harness
35Block, Disconnect
368539893 Whirlpool Wire Harness
37WP8536939 Whirlpool Spring Clip
