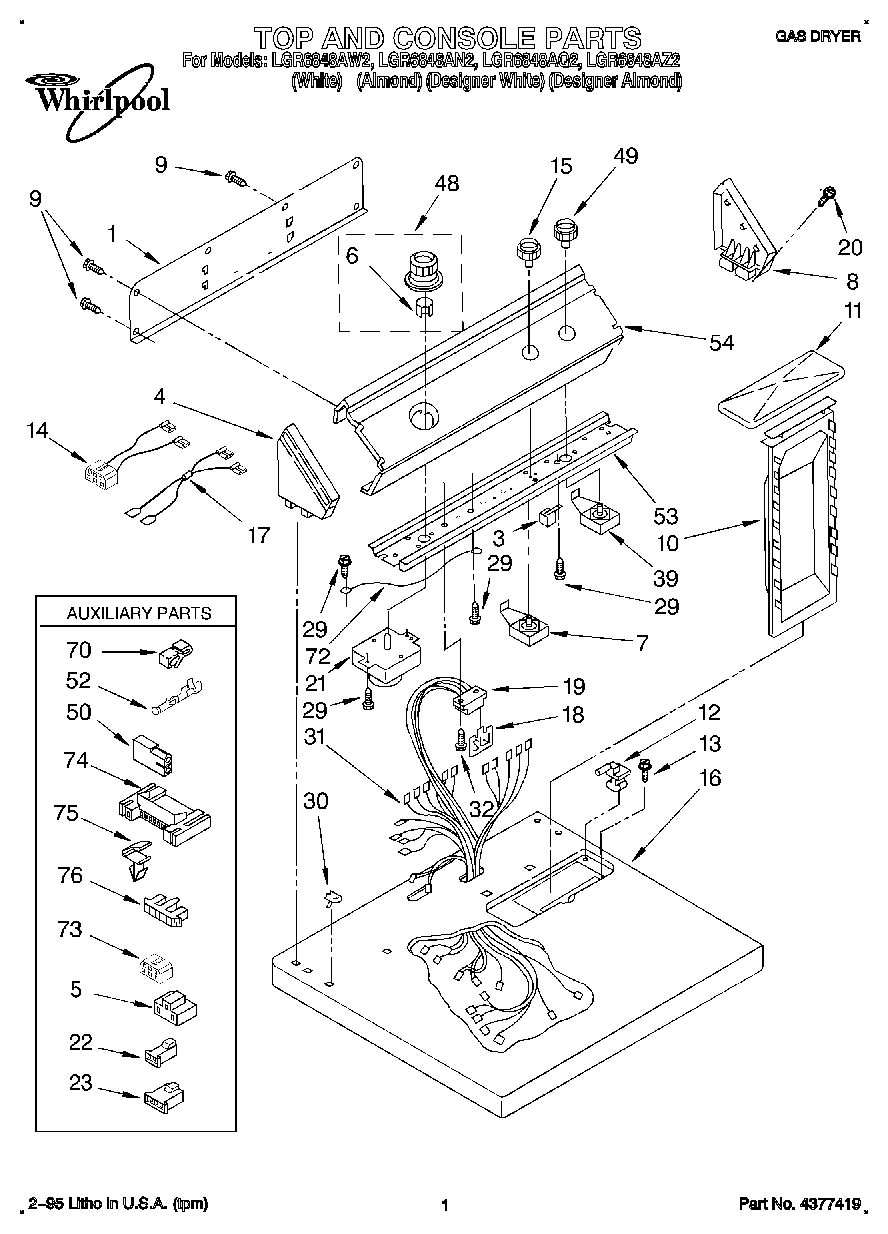

LGR6848AQ2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Guide, Use & Care
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
Instructions, Installation
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Dryer
350938 Whirlpool Spray Gun
WPL LIT3401725
Almond (Uncut)
1Panel, Rear Console
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.) (White)
53401144 Whirlpool Connector
6WP688805 Whirlpool Spring Clip
7WP3399639 Whirlpool Switch
8Cap, End (R.H.) (Almond)
8Cap, End (R.H.) (White)
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
148539893 Whirlpool Wire Harness
15WP3957796 Whirlpool Knob
15KNOB
153957797 Whirlpool Knob
16Top (Almond)
16Top (White)
17Wire Jumper Assembly
18WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
193391885 Whirlpool Connector
20WP388326 Whirlpool Screw
21WP3397273 Whirlpool Timer
22Connector, 2-Position (Gas Valve)
23Connector, 3-Position (Gas Valve)
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32SCREW
39WP3398094 Whirlpool Push To Start Switch
48WP3957752 Whirlpool Knob
483957753 Whirlpool Knob
49Knob, Push To Start
49WP3957800 Whirlpool Knob
50Receptacle, Latching (2-Way) (Uses Terminal 94614)
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control FOR MODEL (LGR6
54Panel, Control FOR MODEL (LGR6848AQ2)
54Panel, Control (Almond)
54Panel, Control (White)
70Clip, Retainer
72Wire, Ground
73Block, Disconnect
743395683 Whirlpool Connector
75WP3394427 Whirlpool Clip
76Connector, Timer
