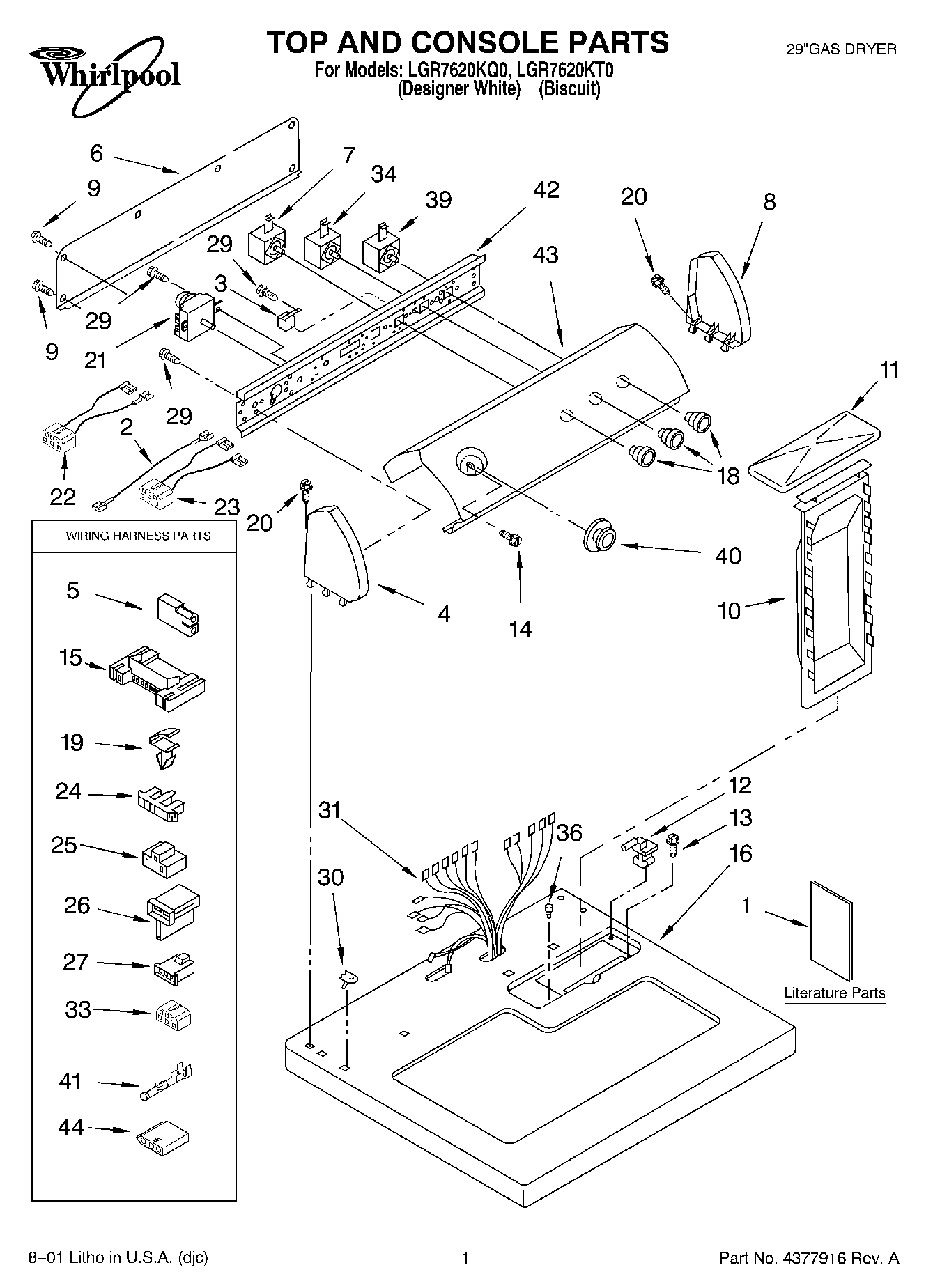

LGR7620KT0 01 – TOP AND CONSOLE, LITERATURE

LGR7620KT0 01 – TOP AND CONSOLE, LITERATURE

Written by

in

LGR7620KT0 01 – TOP AND CONSOLE, LITERATURE

Products

PositionProduct
Dryer
1WPL LIT3406692
1Literature Parts (Instructions, Installation)
1Literature Parts (Guide, Use & Care)
2Wire, Jumper (Black)
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (BIscuit)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
7WP3399639 Whirlpool Switch
8WPL 8271362
8W10820038 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
11Cover, Lint Screen (Biscuit)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
16Top (Biscuit)
18WP3957799 Whirlpool Knob
183957797 Whirlpool Knob
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP8299766 Whirlpool Timer Assembly
223397695 Whirlpool Wire Harness
238539893 Whirlpool Wire Harness
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
33Block, Disconnect
34WP3405156 Whirlpool Switch
36Bumper, Lint Lid
39WP3398095 Whirlpool Dryer Start Relay
40WP3957755 Whirlpool Knob
40WP3957754 Whirlpool Knob Assembly
41WP94614 Whirlpool Terminal
42Bracket, Control
43WPL 3977870
43P
444392901 Whirlpool Biscuit Spray Paint
44PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
44350930 Whirlpool White Spray Paint
44KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
443406839 Whirlpool Drying Rack
44350938 Whirlpool Spray Gun
444392065 Whirlpool Dryer Maintenance Kit
44799344 Whirlpool Refrigerator Paint
4472017 Whirlpool Appliance Touch-Up Paint White
444392899 Whirlpool Biscuit Touch-Up Paint
443936144 Whirlpool Connector
