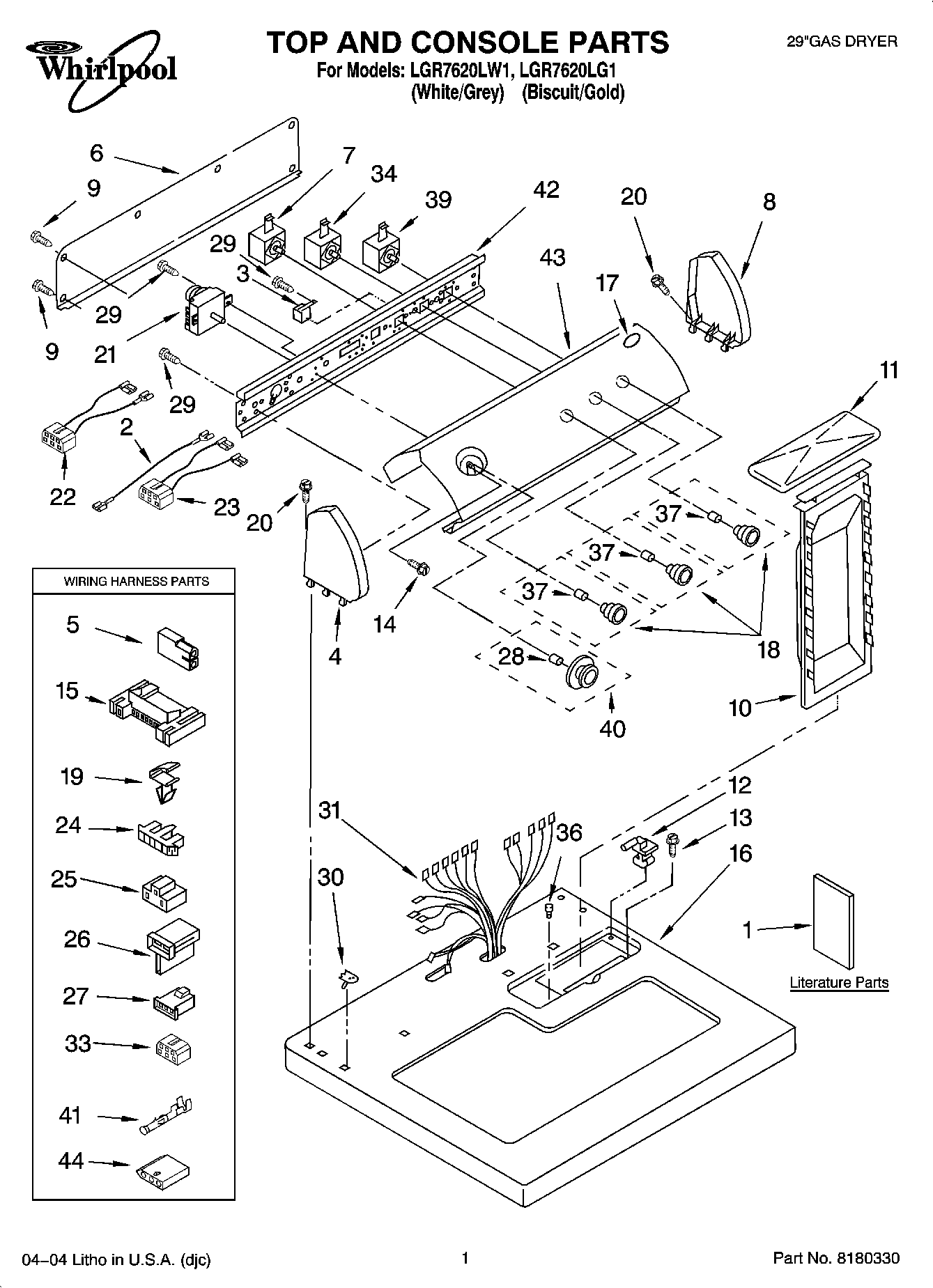

LGR7620LG1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Dryer
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions)
1Literature Parts (Wiring Diagram)
1Literature Parts (Sheet, Cycle Feature)
2Wire, Jumper (Black)
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (BIscuit)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
7WP3399639 Whirlpool Switch
8W10820038 Whirlpool Endcap
8WPL 8271362
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
11Cover, Lint Screen (Biscuit)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top (Biscuit)
16Top
17Medallion
18KNOB
18WPL 8538958
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP8299766 Whirlpool Timer Assembly
223397695 Whirlpool Wire Harness
238539893 Whirlpool Wire Harness
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
28WP688805 Whirlpool Spring Clip
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
318299879 Whirlpool Wire Harness
33Block, Disconnect
34WP3405156 Whirlpool Switch
36Bumper, Lint Lid
37WP8536939 Whirlpool Spring Clip
39WP3398095 Whirlpool Dryer Start Relay
40Timer Knob Assembly (Biscuit)
40WP8557455 Whirlpool Knob Timer
41WP94614 Whirlpool Terminal
42Bracket, Control
43WPL 8532615
43WPL 8532616
44WPL ARI157042A
44350938 Whirlpool Spray Gun
44PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
44350930 Whirlpool White Spray Paint
444392899 Whirlpool Biscuit Touch-Up Paint
443406839 Whirlpool Drying Rack
444392065 Whirlpool Dryer Maintenance Kit
44KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
4472017 Whirlpool Appliance Touch-Up Paint White
44W11224254 Whirlpool Test Kit
44799344 Whirlpool Refrigerator Paint
444392901 Whirlpool Biscuit Spray Paint
443936144 Whirlpool Connector
