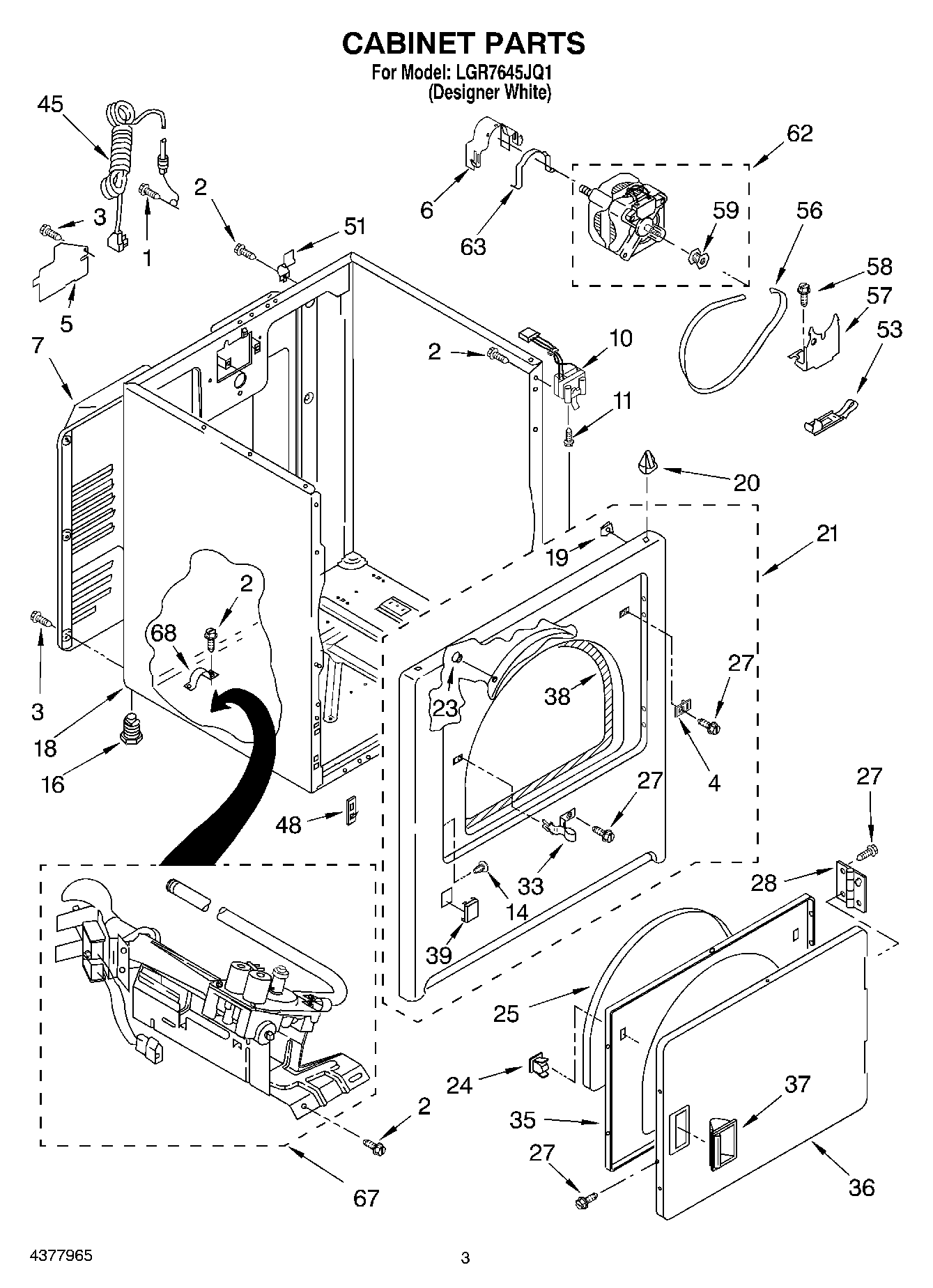

| 1 | W10850756 Whirlpool Screw |
| 2 | SCREW |
| 3 | WP693995 Whirlpool Screw |
| 4 | WP3403630 Whirlpool Plug |
| 5 | W11539855 Whirlpool Refrigerator Pump |
| 6 | WP3404162 Whirlpool Clamp |
| 7 | 280043 Whirlpool Rear Panel |
| 10 | WP3406107 Whirlpool Dryer Door Switch |
| 11 | WP3395530 Whirlpool Screw |
| 14 | WP3404413 Whirlpool Plug |
| 16 | 49621 Whirlpool Leveling Feet |
| 18 | Cabinet (Includes Illus. Nos. 5, 7, 15, 16 & 57) (White) |
| 19 | WP98234 Whirlpool Nut |
| 20 | WP18776 Whirlpool Lock |
| 21 | Front Panel Assembly |
| 23 | 279220 Whirlpool Clip |
| 24 | 279570 Whirlpool Dryer Door Latch Kit |
| 25 | SEAL-DOOR DRYER |
| 27 | WP488627 Whirlpool Refrigerator Screw |
| 28 | WPW10362431 Whirlpool Hinge Assembly |
| 33 | W11429589 Whirlpool Strike |
| 35 | WP3402341 Whirlpool Door |
| 36 | W10861227 Whirlpool Door Assembly |
| 37 | WP3405184 Whirlpool White Door Handle |
| 38 | W11035878 Whirlpool Bearing and Seal |
| 39 | Plug, Front Panel (White) |
| 45 | W11222083 Whirlpool Power Cord |
| 48 | W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip |
| 51 | WP8066217 Whirlpool Hinge |
| 53 | WP691366 Whirlpool Dryer Idler Pulley Assembly |
| 56 | 341241 Whirlpool Dryer Drum Belt |
| 57 | WP348780 Whirlpool Base |
| 58 | 3400500 Whirlpool Screw |
| 59 | WP8066184 Whirlpool Dryer Motor Pulley |
| 62 | 279827 Whirlpool Dryer Drive Motor |
| 63 | WP660658 Whirlpool Clamp |
| 67 | W10823508 Whirlpool Gas Burner |
| 68 | 341029 Whirlpool Clamp |
