LGR7646AN1 01 – TOP AND CONSOLE, LIT/OPTIONAL
Written by
in

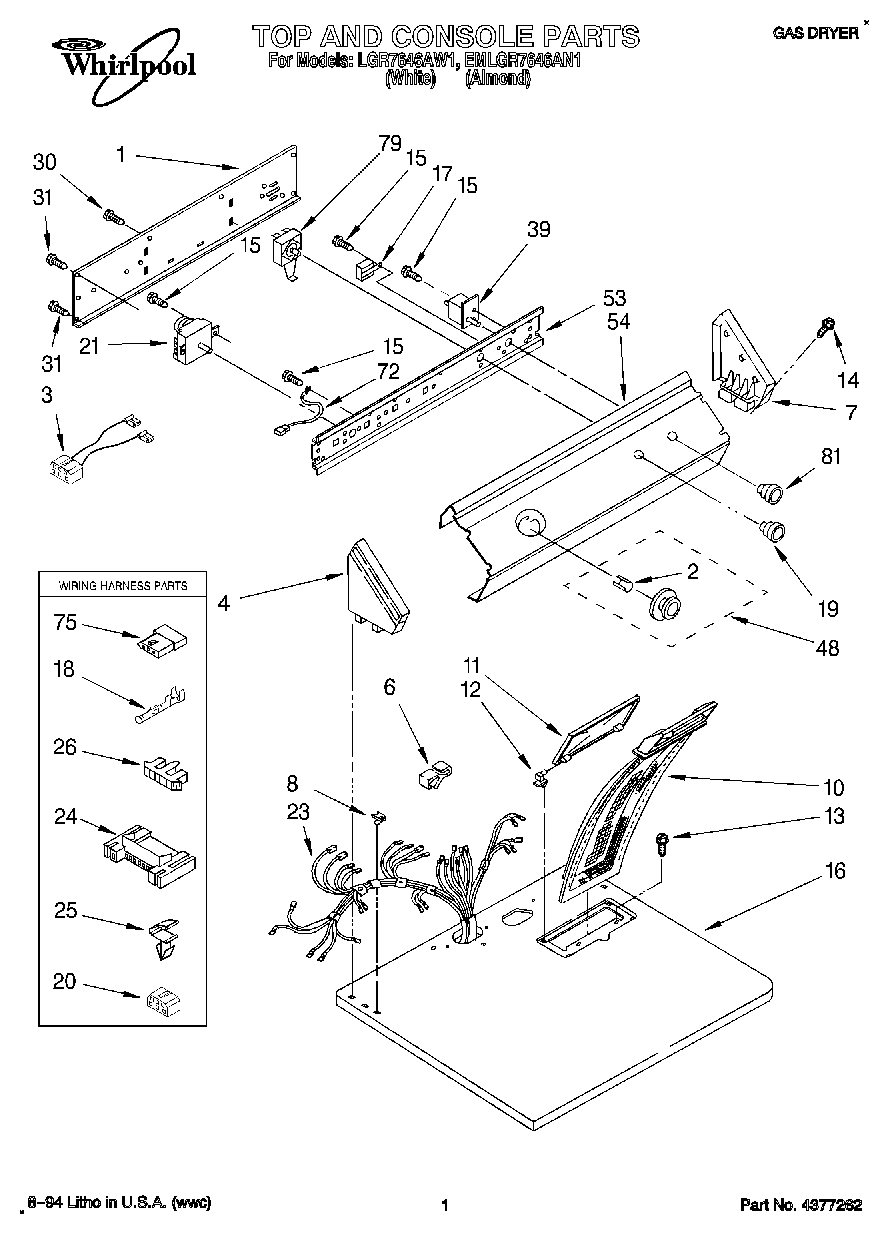

LGR7646AN1 01 – TOP AND CONSOLE, LIT/OPTIONAL
Products
Position
Product
350930 Whirlpool White Spray Paint
Guide, Use & Care
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
Instructions, Installation
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Label, Wiring Diagram
350938 Whirlpool Spray Gun
Dryer
Almond (Uncut)
1
Panel, Rear Console
2
WP688805 Whirlpool Spring Clip
3
8539893 Whirlpool Wire Harness
4
Cap, End (L.H.) (White)
4
Cap, End (L.H.) (Almond)
6
Clip, Retainer
7
Cap, End (R.H.) (Almond)
7
Cap, End (R.H.) (White)
8
WP357213 Whirlpool Hinge Stopper
10
WP349639 Whirlpool Lint Filter
11
Cover, Lint Screen (White)
11
Cover, Lint Screen (Almond)
12
WPW10044480 Whirlpool Hinge Assembly
12
WPW10044470 Whirlpool Hinge Assembly
13
W11693756 Whirlpool Screw Assembly
14
WP388326 Whirlpool Screw
15
WPW10139210 Whirlpool Screw
16
Top (Almond)
16
Top (White)
17
WP694419 Whirlpool Buzzer Adjuster
18
WP94614 Whirlpool Terminal
19
KNOB
20
Block, Disconnect
21
WP3976574 Whirlpool Timer
23
Harness, Wiring
24
3395683 Whirlpool Connector
25
WP3394427 Whirlpool Clip
26
Connector, Timer
30
WP693995 Whirlpool Screw
31
WP489069 Whirlpool Compactor Screw
39
Relay, Push-To-Start
48
WP3957752 Whirlpool Knob
53
Bracket, Control
54
Panel, Control (White)
54
Panel, Control (Almond)
72
Wire, Ground
75
Receptacle, 3-Way Terminal (Use W/94614)
79
WP3399639 Whirlpool Switch
81
Knob, Push To Start
←
