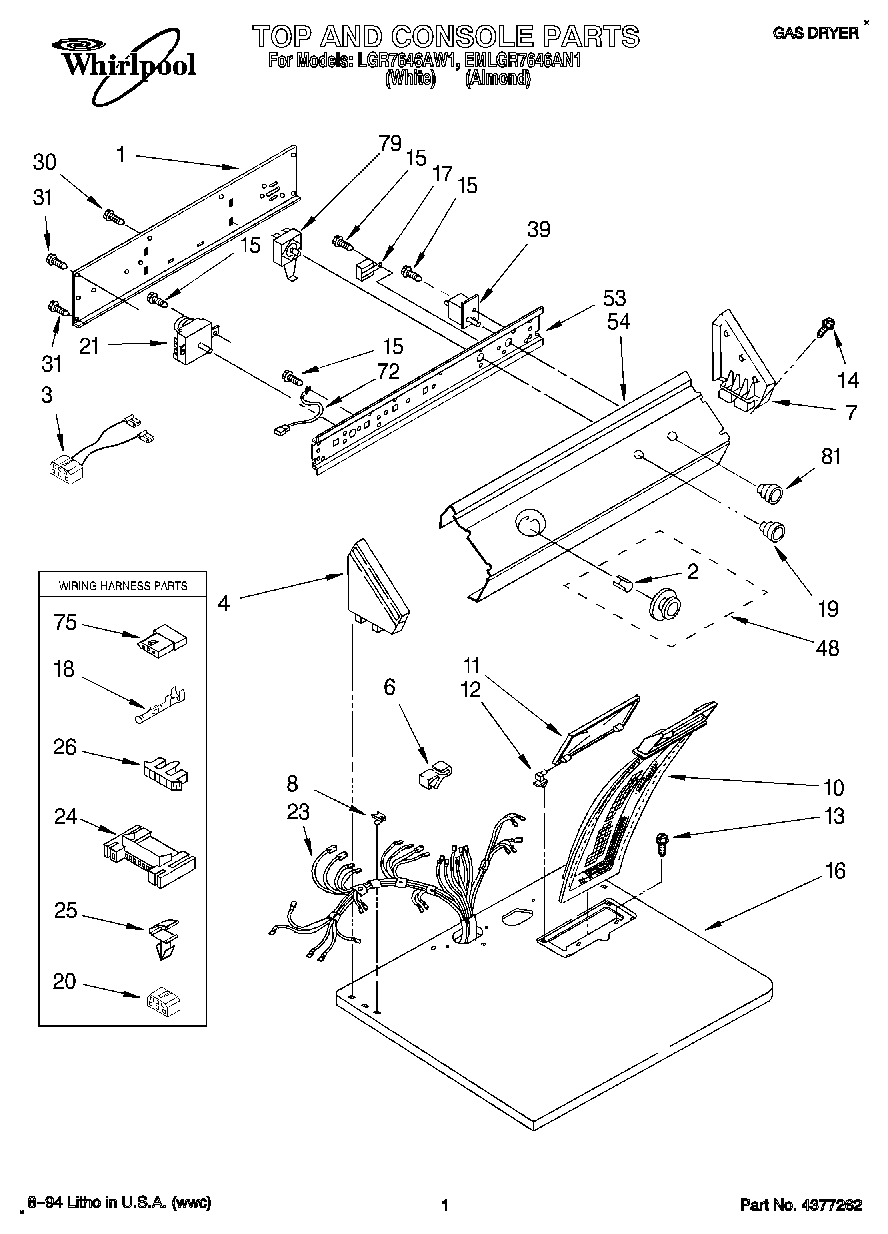

LGR7646AW1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Guide, Use & Care
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Instructions, Installation
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	Label, Wiring Diagram
	350938 Whirlpool Spray Gun
	Dryer
	Almond (Uncut)
1	Panel, Rear Console
2	WP688805 Whirlpool Spring Clip
3	8539893 Whirlpool Wire Harness
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Almond)
6	Clip, Retainer
7	Cap, End (R.H.) (Almond)
7	Cap, End (R.H.) (White)
8	WP357213 Whirlpool Hinge Stopper
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	WPW10139210 Whirlpool Screw
16	Top (Almond)
16	Top (White)
17	WP694419 Whirlpool Buzzer Adjuster
18	WP94614 Whirlpool Terminal
19	KNOB
20	Block, Disconnect
21	WP3976574 Whirlpool Timer
23	Harness, Wiring
24	3395683 Whirlpool Connector
25	WP3394427 Whirlpool Clip
26	Connector, Timer
30	WP693995 Whirlpool Screw
31	WP489069 Whirlpool Compactor Screw
39	Relay, Push-To-Start
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
72	Wire, Ground
75	Receptacle, 3-Way Terminal (Use W/94614)
79	WP3399639 Whirlpool Switch
81	Knob, Push To Start
