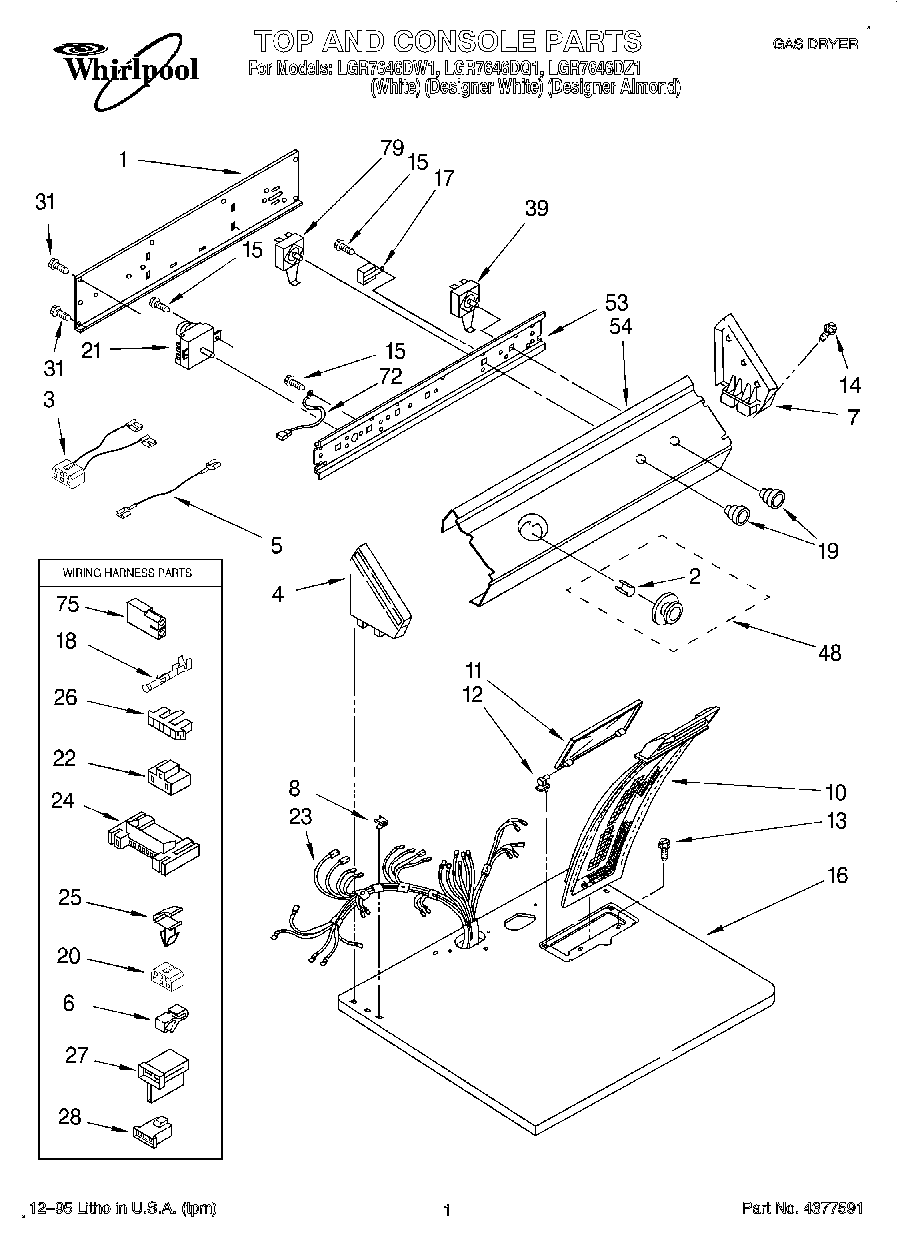

LGR7646DZ1 01 – TOP AND CONSOLE, LIT/OPTIONAL
Written by
in
LGR7646DZ1 01 – TOP AND CONSOLE, LIT/OPTIONAL
Products
Position
Product
350930 Whirlpool White Spray Paint
Guide, Use & Care
Label, Wiring Diagram
Dryer
Instructions, Installation
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
1
Panel, Rear Console
2
WP688805 Whirlpool Spring Clip
3
8539893 Whirlpool Wire Harness
4
Cap, End (L.H.) (White)
4
Cap, End (L.H.)
4
Cap, End (L.H.) (Almond)
5
Wire, Jumper (Black)
6
Clip, Retainer
7
Cap, End (R.H.) (White)
7
Cap, End (R.H.) (Almond)
7
Cap, End (R.H.)
8
WP357213 Whirlpool Hinge Stopper
10
WP349639 Whirlpool Lint Filter
11
Cover, Lint Screen (Almond)
11
Cover, Lint Screen (White)
12
WPW10044470 Whirlpool Hinge Assembly
12
WPW10044480 Whirlpool Hinge Assembly
13
W11693756 Whirlpool Screw Assembly
14
WP388326 Whirlpool Screw
15
WPW10139210 Whirlpool Screw
16
Top (Almond)
16
Top (White)
17
WP694419 Whirlpool Buzzer Adjuster
18
WP94614 Whirlpool Terminal
19
WP3957796 Whirlpool Knob
19
3957797 Whirlpool Knob
19
KNOB
20
Block, Disconnect
21
WP3976574 Whirlpool Timer
22
3401144 Whirlpool Connector
23
Harness, Wiring
24
3395683 Whirlpool Connector
25
WP3394427 Whirlpool Clip
26
Connector, Timer
27
WP3403499 Whirlpool Connector
28
WP3403498 Whirlpool Connector
31
WP693995 Whirlpool Screw
39
WP3398095 Whirlpool Dryer Start Relay
48
WP3957752 Whirlpool Knob
48
3957753 Whirlpool Knob
53
Bracket, Control
54
WPL 3399034
54
Panel, Control (MODEL) (L
54
WPL 3399033
72
Wire, Ground
75
Receptacle, Latching (2-Way) (Uses Terminal 94614)
79
WP3399639 Whirlpool Switch
←
