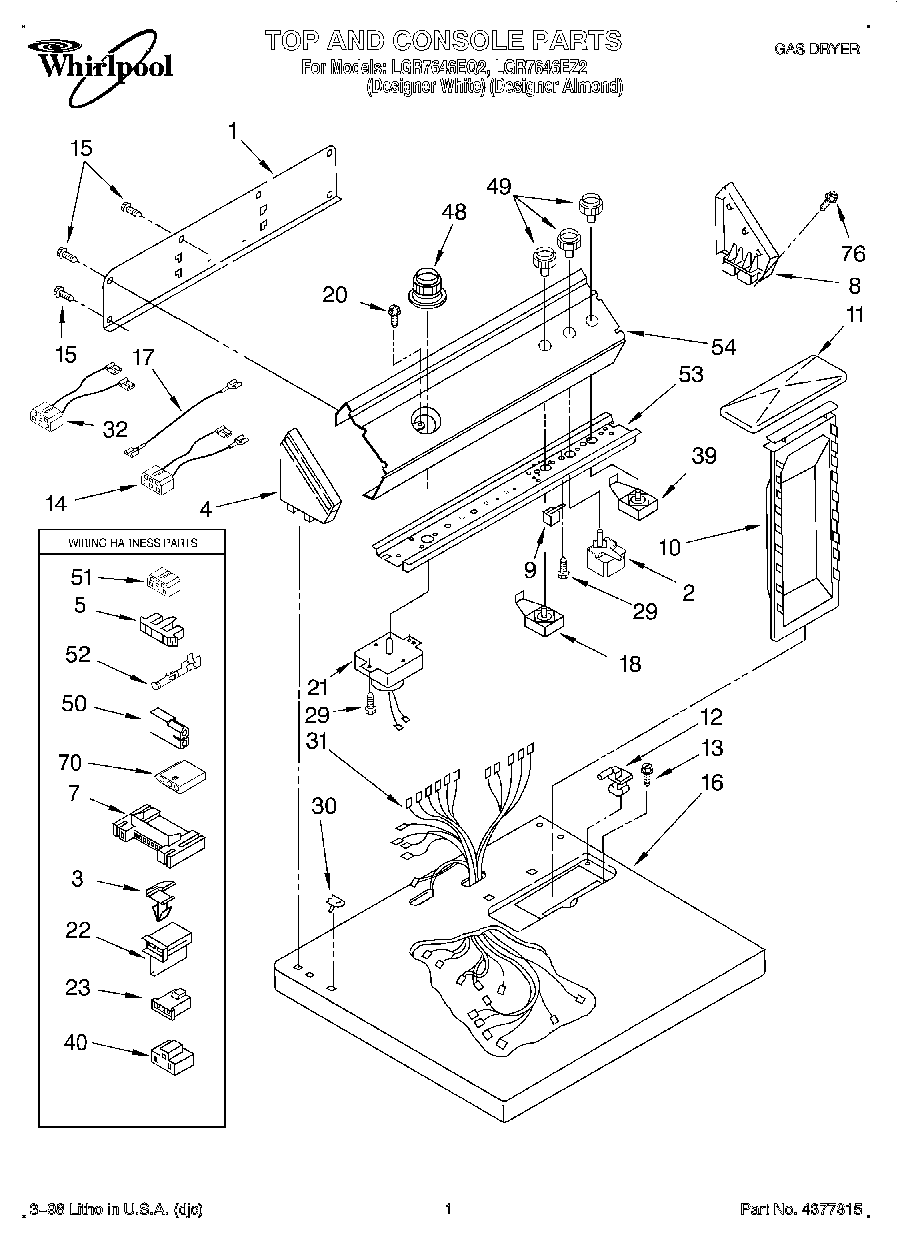

LGR7646EQ2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Dryer
Almond (Uncut)
WPL LIT3406692
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Instructions, Installation
350938 Whirlpool Spray Gun
WPL LIT3406071
1Panel, Rear Console
2WP3405156 Whirlpool Switch
3WP3394427 Whirlpool Clip
4Cap, End (L.H.)
4Cap, End (L.H.) (Almond)
5Connector, Timer
73395683 Whirlpool Connector
8Cap, End (R.H.) (Almond)
8Cap, End (R.H.)
9WP694419 Whirlpool Buzzer Adjuster
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143397695 Whirlpool Wire Harness
15WP693995 Whirlpool Screw
16Top (White)
16Top (Almond)
17Wire, Jumper (Black)
18WP3399639 Whirlpool Switch
203400859 Whirlpool Screw
21WP3976580 Whirlpool Timer
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
328539893 Whirlpool Wire Harness
39WP3398095 Whirlpool Dryer Start Relay
403401144 Whirlpool Connector
48WP3957752 Whirlpool Knob
483957753 Whirlpool Knob
493957797 Whirlpool Knob
49WP3957796 Whirlpool Knob
50Receptacle, Latching (2-Way) (Uses Terminal 94614)
51Block, Disconnect
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Almond)
703936144 Whirlpool Connector
76WP388326 Whirlpool Screw
