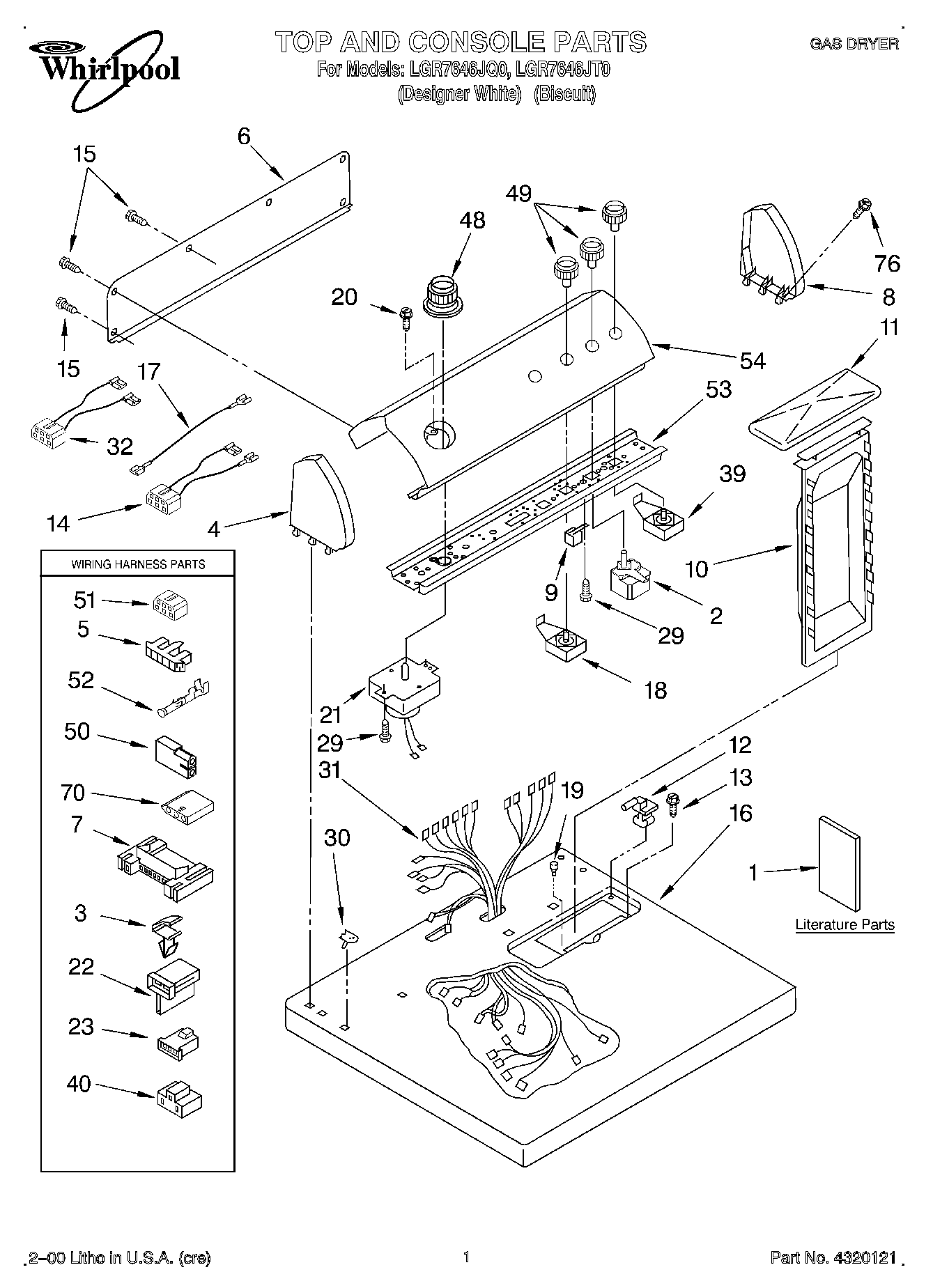

LGR7646JT0 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGR7646JT0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGR7646JT0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
Dryer
1WPL LIT3406692
1Literature Parts (Guide, Use & Care)
1Instructions, Installation
2WP3405156 Whirlpool Switch
3WP3394427 Whirlpool Clip
4Cap, End (L.H.) (BIscuit)
5Connector, Timer
6W10103406 Whirlpool Rear Panel
73395683 Whirlpool Connector
8WPL 8271362
8W10820038 Whirlpool Endcap
9WP694419 Whirlpool Buzzer Adjuster
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143397695 Whirlpool Wire Harness
15WP693995 Whirlpool Screw
16Top
16Top (Biscuit)
17Wire, Jumper (Black)
18WP3399639 Whirlpool Switch
19Bumper, Lint Lid
203400859 Whirlpool Screw
21WP8299766 Whirlpool Timer Assembly
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
328539893 Whirlpool Wire Harness
39WP3398095 Whirlpool Dryer Start Relay
403401144 Whirlpool Connector
48WP3957755 Whirlpool Knob
48WP3957754 Whirlpool Knob Assembly
493957797 Whirlpool Knob
49WP3957799 Whirlpool Knob
50Receptacle, Latching (2-Way) (Uses Terminal 94614)
51Block, Disconnect
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
54WPL 3977822
703936144 Whirlpool Connector
76WP388326 Whirlpool Screw
764392899 Whirlpool Biscuit Touch-Up Paint
76799344 Whirlpool Refrigerator Paint
764392901 Whirlpool Biscuit Spray Paint
7672017 Whirlpool Appliance Touch-Up Paint White
76350938 Whirlpool Spray Gun
76PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
76350930 Whirlpool White Spray Paint
