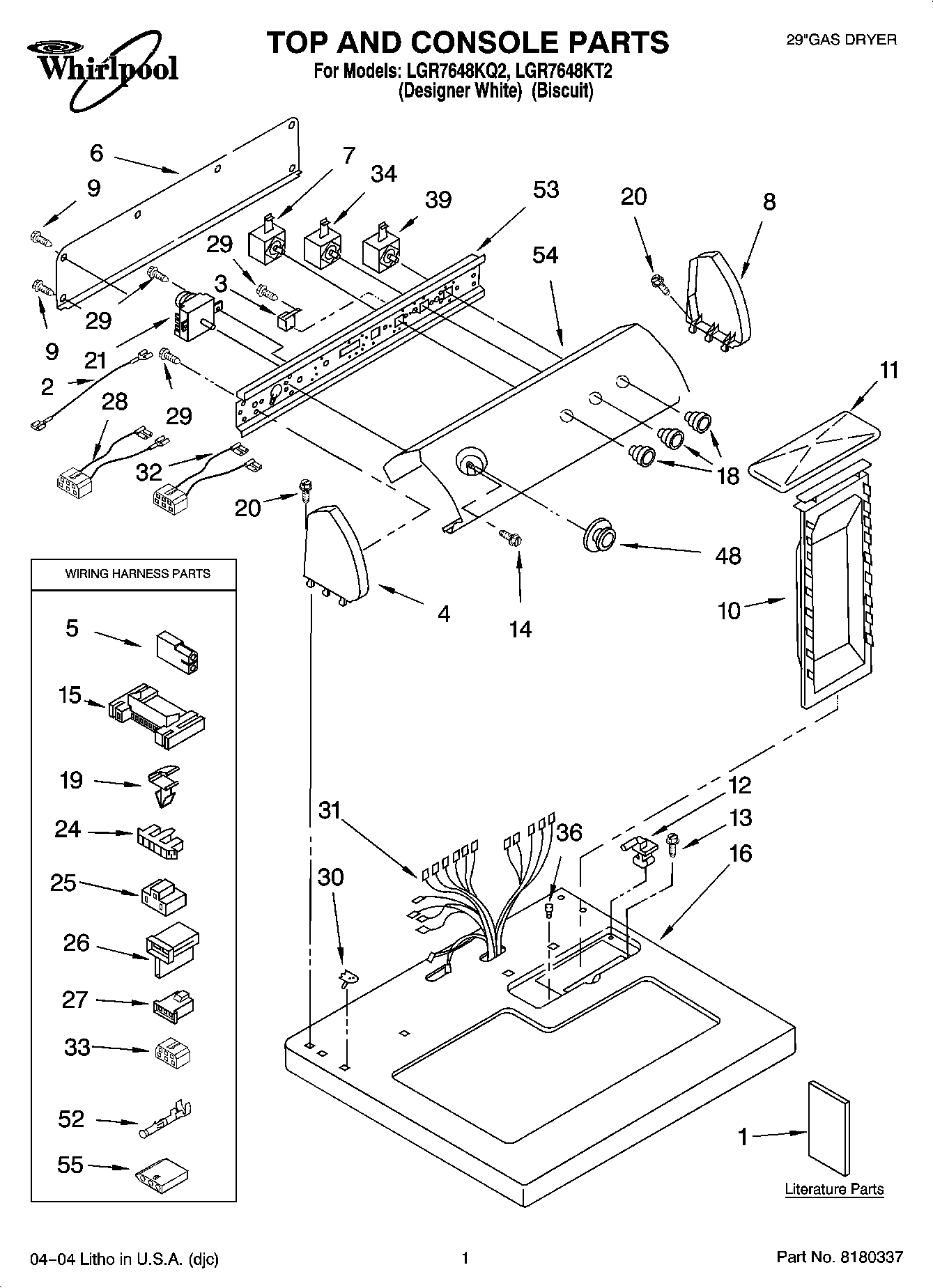

LGR7648KT2 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Dryer
1	Literature Parts (Sheet, Cycle Feature)
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2	Wire, Jumper (Black)
3	WP694419 Whirlpool Buzzer Adjuster
4	Cap, End (L.H.) (BIscuit)
5	Receptacle, Latching (2-Way) (Uses Terminal 94614)
6	W10103406 Whirlpool Rear Panel
7	WP3399639 Whirlpool Switch
8	W10820038 Whirlpool Endcap
8	WPL 8271362
9	WP693995 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Biscuit)
11	Cover, Lint Screen
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top (Biscuit)
16	Top
18	WP3957799 Whirlpool Knob
18	3957797 Whirlpool Knob
19	WP3394427 Whirlpool Clip
20	WP388326 Whirlpool Screw
21	WP8299766 Whirlpool Timer Assembly
24	Connector, Timer
25	3401144 Whirlpool Connector
26	WP3403499 Whirlpool Connector
27	WP3403498 Whirlpool Connector
28	3397695 Whirlpool Wire Harness
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	8299879 Whirlpool Wire Harness
32	8539893 Whirlpool Wire Harness
33	Block, Disconnect
34	WP3405156 Whirlpool Switch
36	Bumper, Lint Lid
39	WP3398095 Whirlpool Dryer Start Relay
48	WP3957754 Whirlpool Knob Assembly
48	WP3957755 Whirlpool Knob
52	WP94614 Whirlpool Terminal
53	Bracket, Control
54	WPL 3977852
54	Pa
55	WPL ARI157051A
55	350938 Whirlpool Spray Gun
55	W11224254 Whirlpool Test Kit
55	4392065 Whirlpool Dryer Maintenance Kit
55	3936144 Whirlpool Connector
55	4392901 Whirlpool Biscuit Spray Paint
55	KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
55	4392899 Whirlpool Biscuit Touch-Up Paint
55	72017 Whirlpool Appliance Touch-Up Paint White
55	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
55	799344 Whirlpool Refrigerator Paint
55	350930 Whirlpool White Spray Paint
55	3406839 Whirlpool Drying Rack
