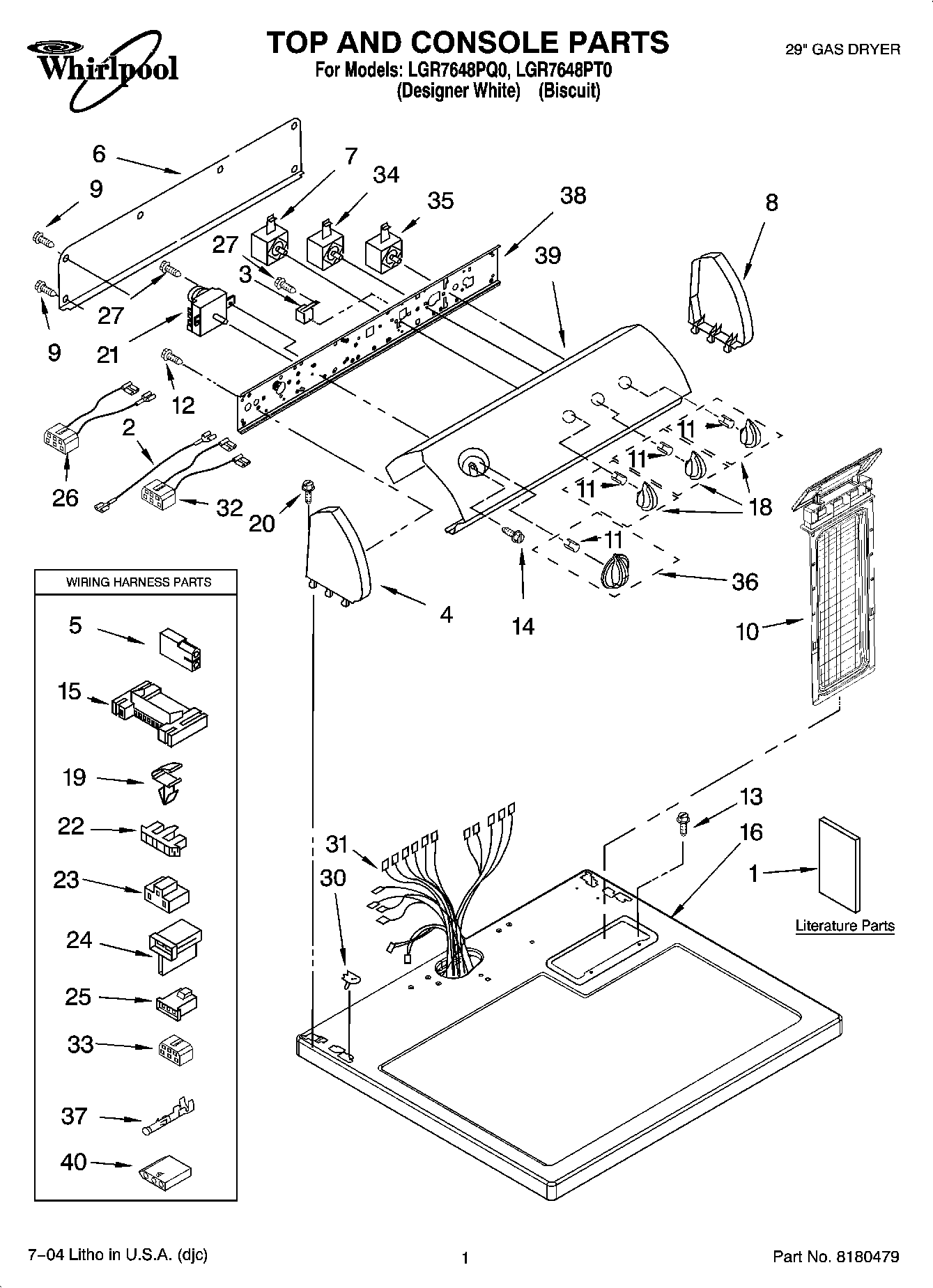

LGR7648PT0 01 – TOP AND CONSOLE PARTS

LGR7648PT0 01 – TOP AND CONSOLE PARTS

Written by

in

LGR7648PT0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Use & Care Guide
1Instructions, Installation
1Sheet, Cycle Feature
1Wiring Diagram
1WPL 677818
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2Wire, Jumper (Black)
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (BIscuit)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
7WP3399639 Whirlpool Switch
8W10820038 Whirlpool Endcap
8WPL 8271362
9WP693995 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
10Screen, Lint (Biscuit)
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
16Top
18WPL 8544936
18WPL 8544935
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP8299766 Whirlpool Timer Assembly
22Connector, Timer
233401144 Whirlpool Connector
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
263397695 Whirlpool Wire Harness
27WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
318299879 Whirlpool Wire Harness
328539893 Whirlpool Wire Harness
33Block, Disconnect
34WP3405156 Whirlpool Switch
35WP3398095 Whirlpool Dryer Start Relay
36W10756270 Whirlpool Dryer Timer Knob
36Timer Knob Assembly (Biscuit)
37WP94614 Whirlpool Terminal
38Bracket, Control
39Panel, Control (White)
39Panel, Contr
403936144 Whirlpool Connector
