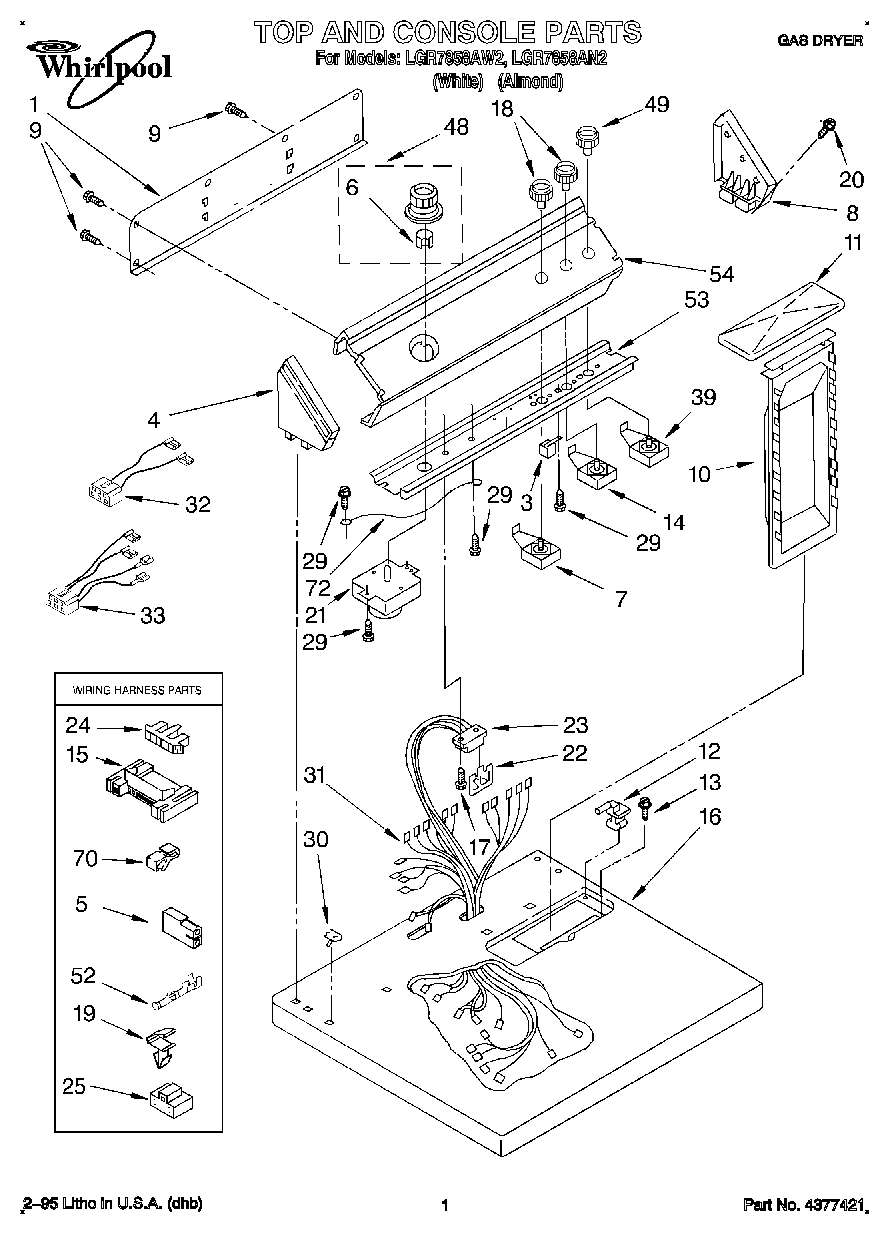

LGR7858AW2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Dryer
	WPL LIT3401725
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Instructions, Installation
	72017 Whirlpool Appliance Touch-Up Paint White
	Guide, Use & Care
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
1	Panel, Rear Console
3	WP694419 Whirlpool Buzzer Adjuster
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (White)
5	Receptacle, Latching (2-Way) (Uses Terminal 94614)
6	WP688805 Whirlpool Spring Clip
7	WP3399640 Whirlpool Switch
8	Cap, End (R.H.) (White)
8	Cap, End (R.H.) (Almond)
9	WP693995 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Switch, Finish Guard
15	3395683 Whirlpool Connector
16	Top (Almond)
16	Top (White)
17	SCREW
18	KNOB
19	WP3394427 Whirlpool Clip
20	WP388326 Whirlpool Screw
21	WP3397273 Whirlpool Timer
22	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
23	3391885 Whirlpool Connector
24	Connector, Timer
25	3401144 Whirlpool Connector
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Gas
32	Wire-Jumper Assembly
33	Wire, Jumper (Guard/Signal)
39	WP3398094 Whirlpool Push To Start Switch
48	WP3957752 Whirlpool Knob
49	Knob, Push To Start
52	WP94614 Whirlpool Terminal
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
70	Clip, Retainer
72	Wire, Ground
