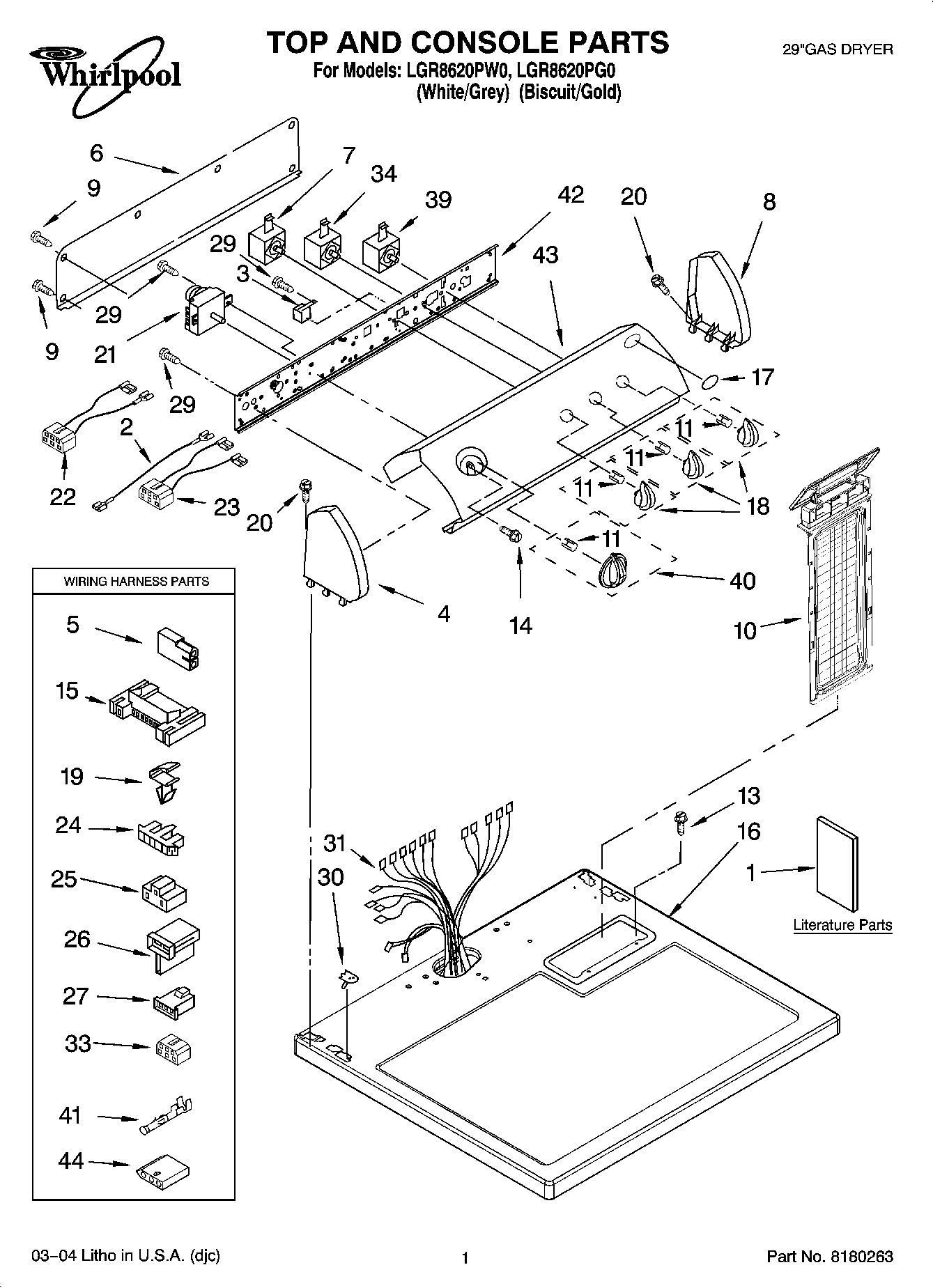

LGR8620PG0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Dryer
1Literature Parts (Wiring Diagram)
1Literature Parts (Sheet, Cycle Feature)
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
2Wire, Jumper (Black)
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (BIscuit)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
7WP3399639 Whirlpool Switch
8WPL 8271362
8W10820038 Whirlpool Endcap
9WP693995 Whirlpool Screw
10Screen, Lint (Biscuit)
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
16Top
17WPL 3400985
18WPL 8544937
18WPL 8544938
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP8299766 Whirlpool Timer Assembly
223397695 Whirlpool Wire Harness
238539893 Whirlpool Wire Harness
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
318299879 Whirlpool Wire Harness
33Block, Disconnect
34WP3405156 Whirlpool Switch
39WP3398095 Whirlpool Dryer Start Relay
40WPL 8544958
40WPL 8544957
41WP94614 Whirlpool Terminal
42Bracket, Control
43WPL 8545980
43Panel, Control (Includes Illus. 17) (Sil
443936144 Whirlpool Connector
44WPL ARI157064A
444392065 Whirlpool Dryer Maintenance Kit
44350930 Whirlpool White Spray Paint
44799344 Whirlpool Refrigerator Paint
44350938 Whirlpool Spray Gun
443406839 Whirlpool Drying Rack
4472017 Whirlpool Appliance Touch-Up Paint White
444392899 Whirlpool Biscuit Touch-Up Paint
444392901 Whirlpool Biscuit Spray Paint
44KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
44PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
44W11224254 Whirlpool Test Kit
