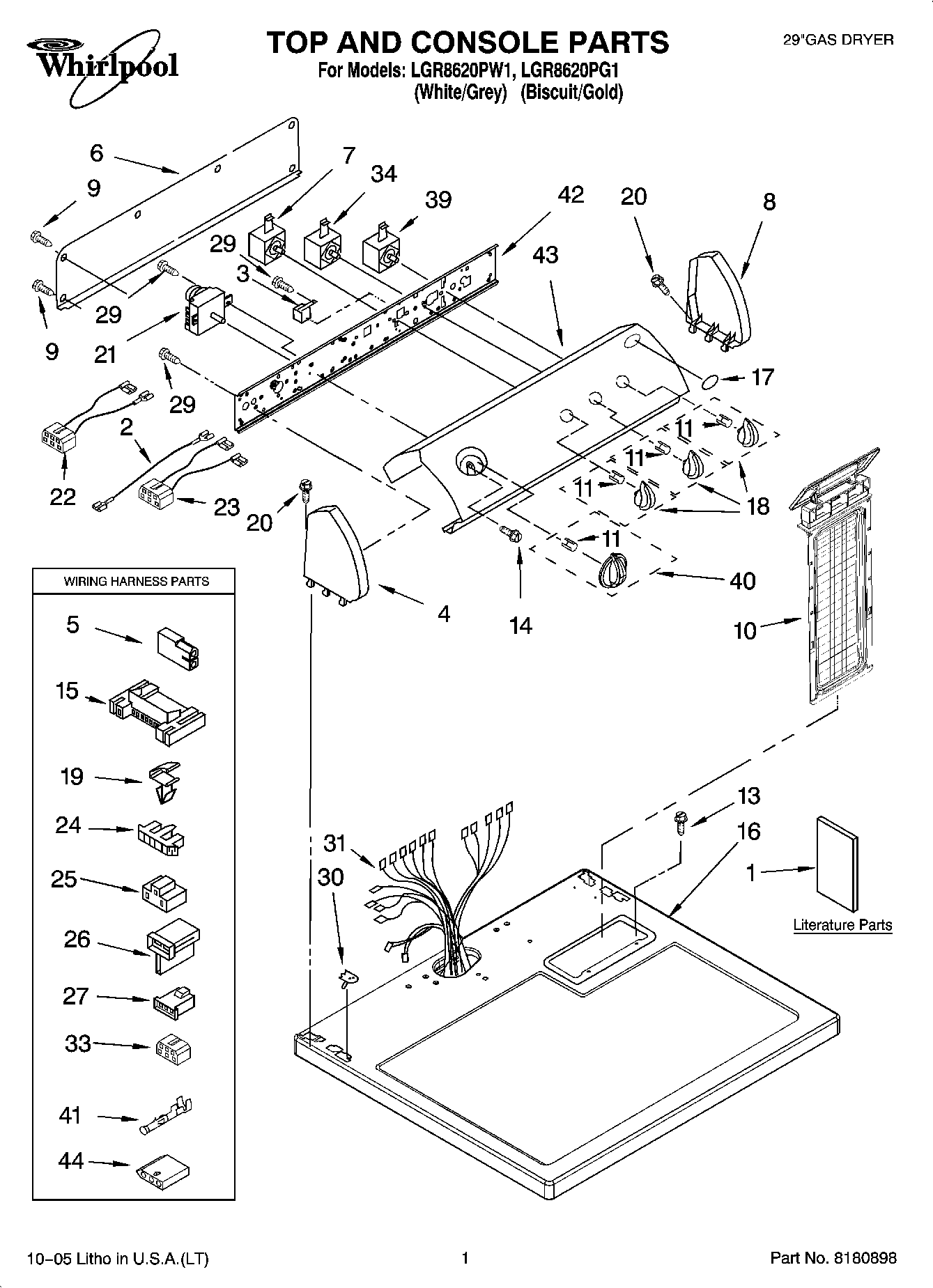

LGR8620PG1 01 – TOP AND CONSOLE PARTS

LGR8620PG1 01 – TOP AND CONSOLE PARTS

Written by

in

LGR8620PG1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1Sheet, Cycle Feature
1Instructions, Installation
1Use & Care Guide
1WPL 677818
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2Wire, Jumper (Black)
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (BIscuit)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
7WP3399639 Whirlpool Switch
8WPL 8271362
8W10820038 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
10Screen, Lint (Biscuit)
11WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
16Top
17WPL 3400985
18WPL 8544938
18WPL 8544937
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP8299766 Whirlpool Timer Assembly
223397695 Whirlpool Wire Harness
238539893 Whirlpool Wire Harness
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
29WP90767 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
318299879 Whirlpool Wire Harness
33Block, Disconnect
34WP3405156 Whirlpool Switch
39WP3398095 Whirlpool Dryer Start Relay
40WPL 8544957
40WPL 8544958
41WP94614 Whirlpool Terminal
42Bracket, Control
43Panel, Control (Includes Illus. 17) (Sil
43WPL 8545980
443936144 Whirlpool Connector
