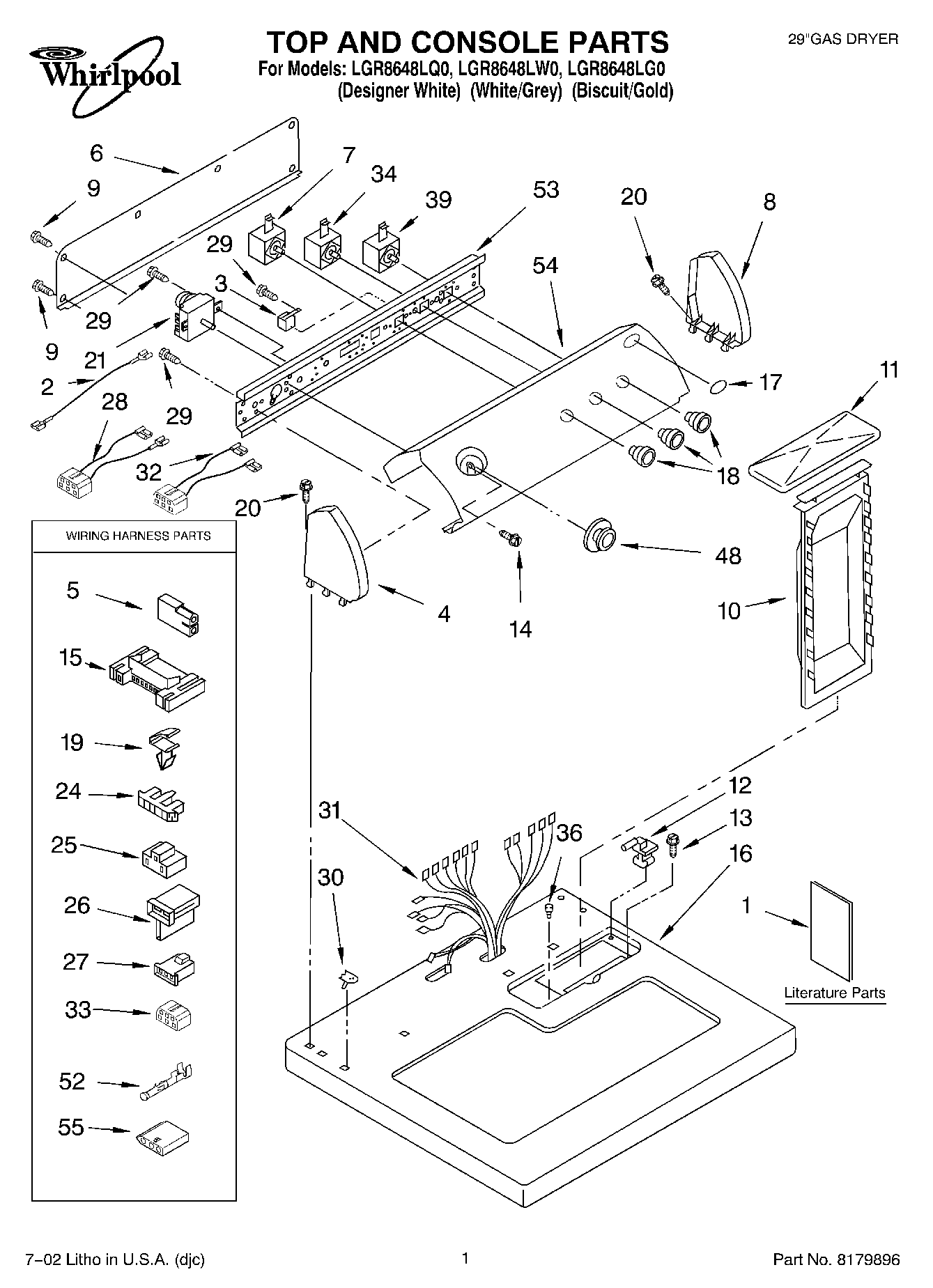

LGR8648LW0 01 – TOP AND CONSOLE, LITERATURE

LGR8648LW0 01 – TOP AND CONSOLE, LITERATURE

Written by

in

LGR8648LW0 01 – TOP AND CONSOLE, LITERATURE

Products

PositionProduct
Dryer
1Literature Parts (Wiring Diagram)
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
2Wire, Jumper (Black)
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (BIscuit)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
7WP3399639 Whirlpool Switch
8WPL 8271362
8W10820038 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
11Cover, Lint Screen (Biscuit)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top (Biscuit)
16Top
17Medallion
18WP3957799 Whirlpool Knob
18KNOB
18WPL 8316545
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP8299766 Whirlpool Timer Assembly
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
283397695 Whirlpool Wire Harness
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
318299879 Whirlpool Wire Harness
328539893 Whirlpool Wire Harness
33Block, Disconnect
34WP3405156 Whirlpool Switch
36Bumper, Lint Lid
39WP3398095 Whirlpool Dryer Start Relay
48WP8557455 Whirlpool Knob Timer
48WPL 8316549
48WP3957754 Whirlpool Knob Assembly
52WP94614 Whirlpool Terminal
53Bracket, Control
54WPL 8532643
54WPL 8532628
54WPL 8532627
5572017 Whirlpool Appliance Touch-Up Paint White
554392901 Whirlpool Biscuit Spray Paint
55350930 Whirlpool White Spray Paint
554392899 Whirlpool Biscuit Touch-Up Paint
553406839 Whirlpool Drying Rack
55799344 Whirlpool Refrigerator Paint
554392065 Whirlpool Dryer Maintenance Kit
55PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
55KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
55W11224254 Whirlpool Test Kit
553936144 Whirlpool Connector
55350938 Whirlpool Spray Gun
