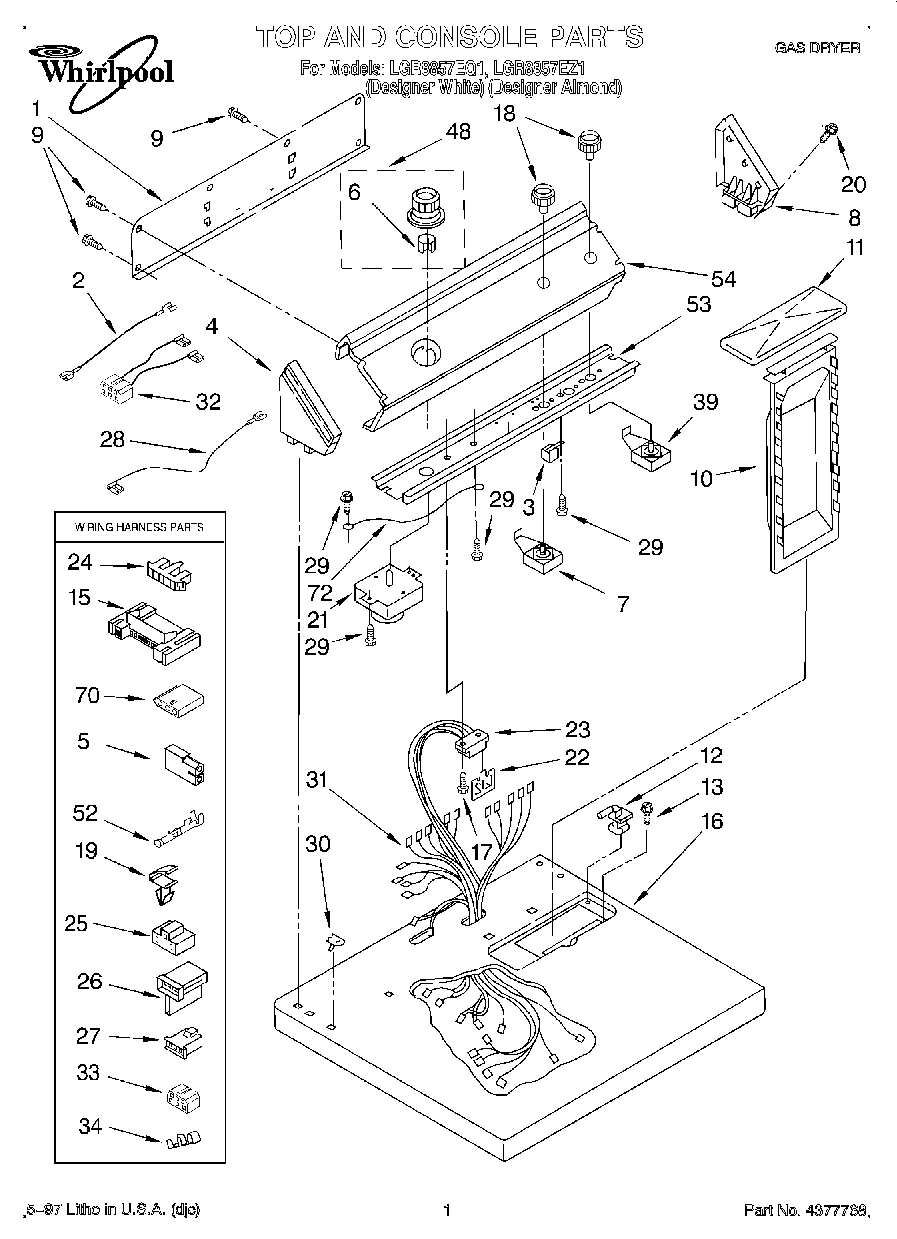

LGR8857EQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGR8857EQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGR8857EQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Label, Warning
Dryer
Instructions, Installation
WPL LIT3406699
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
WPL LIT3406071
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
1Panel, Rear Console
2Wire, Jumper (Black)
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.)
4Cap, End (L.H.) (Almond)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6WP688805 Whirlpool Spring Clip
7WP3399640 Whirlpool Switch
8Cap, End (R.H.)
8Cap, End (R.H.) (Almond)
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
153395683 Whirlpool Connector
16Top (White)
16Top (Almond)
17SCREW
18WP3957796 Whirlpool Knob
183957797 Whirlpool Knob
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP3976570 Whirlpool Timer
22WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
233391885 Whirlpool Connector
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
28Wire, Jumper (White)
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Gas
32Wire-Jumper Assembly
33Block, Disconnect
34W10113937 Whirlpool Clamp
39WP3398095 Whirlpool Dryer Start Relay
48WP3957752 Whirlpool Knob
483957753 Whirlpool Knob
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Almond)
70Connector (Door Switch)
72Wire, Ground
