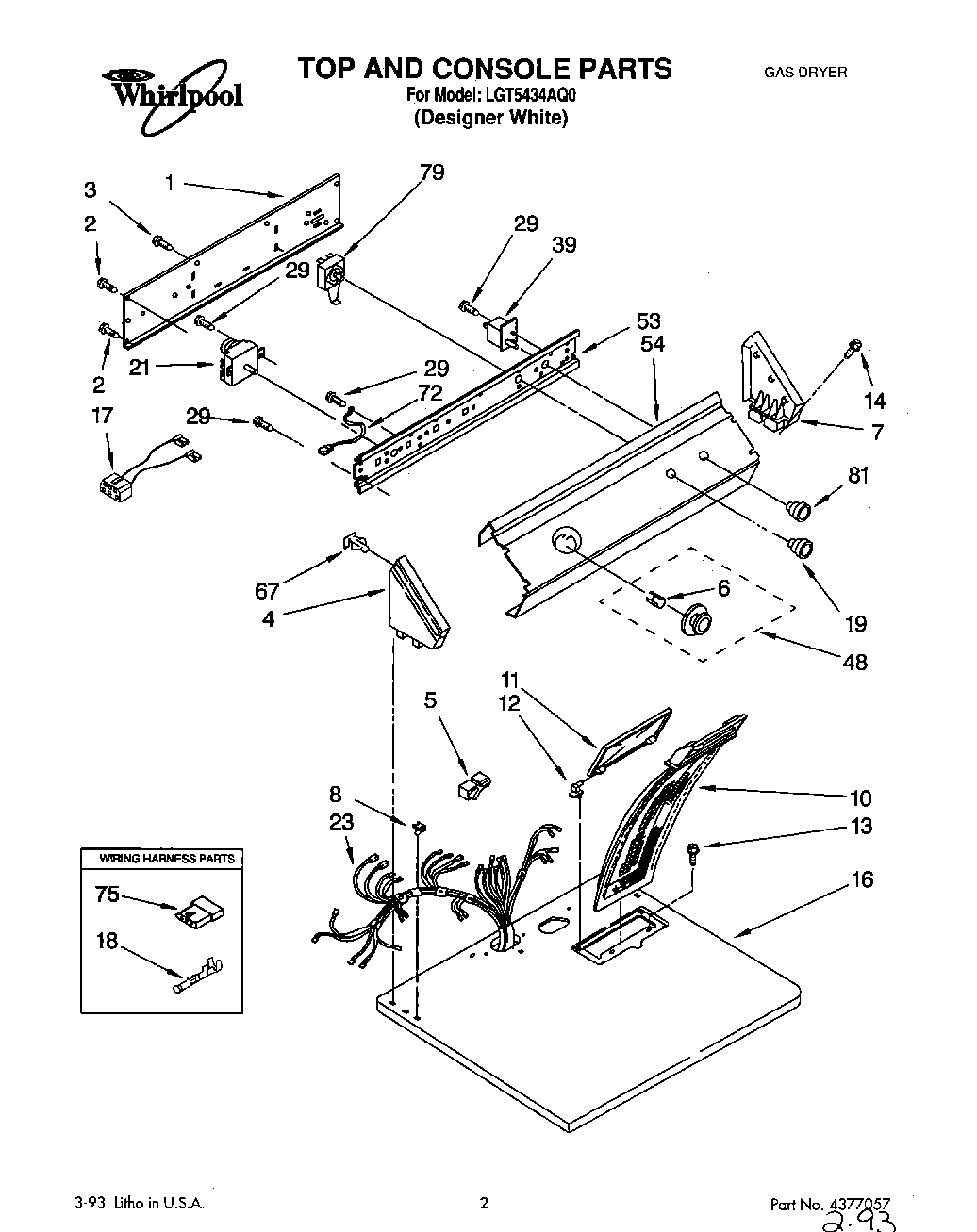

LGT5434AQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Use & Care Guide
	Instructions, Installation
	List, Service Parts
	Dryer
	Leveler (Thinner)
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	WP489069 Whirlpool Compactor Screw
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.) (White)
5	Clip, Retainer
6	WP688805 Whirlpool Spring Clip
7	Cap, End (R.H.) (White)
8	WP357213 Whirlpool Hinge Stopper
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
16	Top (White)
17	8283286 Whirlpool Wire Harness
18	WP94614 Whirlpool Terminal
19	WP3957796 Whirlpool Knob
21	WP3396215 Whirlpool Timer
23	Harness, Wiring
29	WPW10139210 Whirlpool Screw
39	Switch, Push-To-Start
39	(Alt.)
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control
67	WP689559 Whirlpool Nut
72	Wire, Ground
75	Receptacle, 3-Way Terminal (Use W/94614)
79	Switch, Temperature
81	WP3957800 Whirlpool Knob
