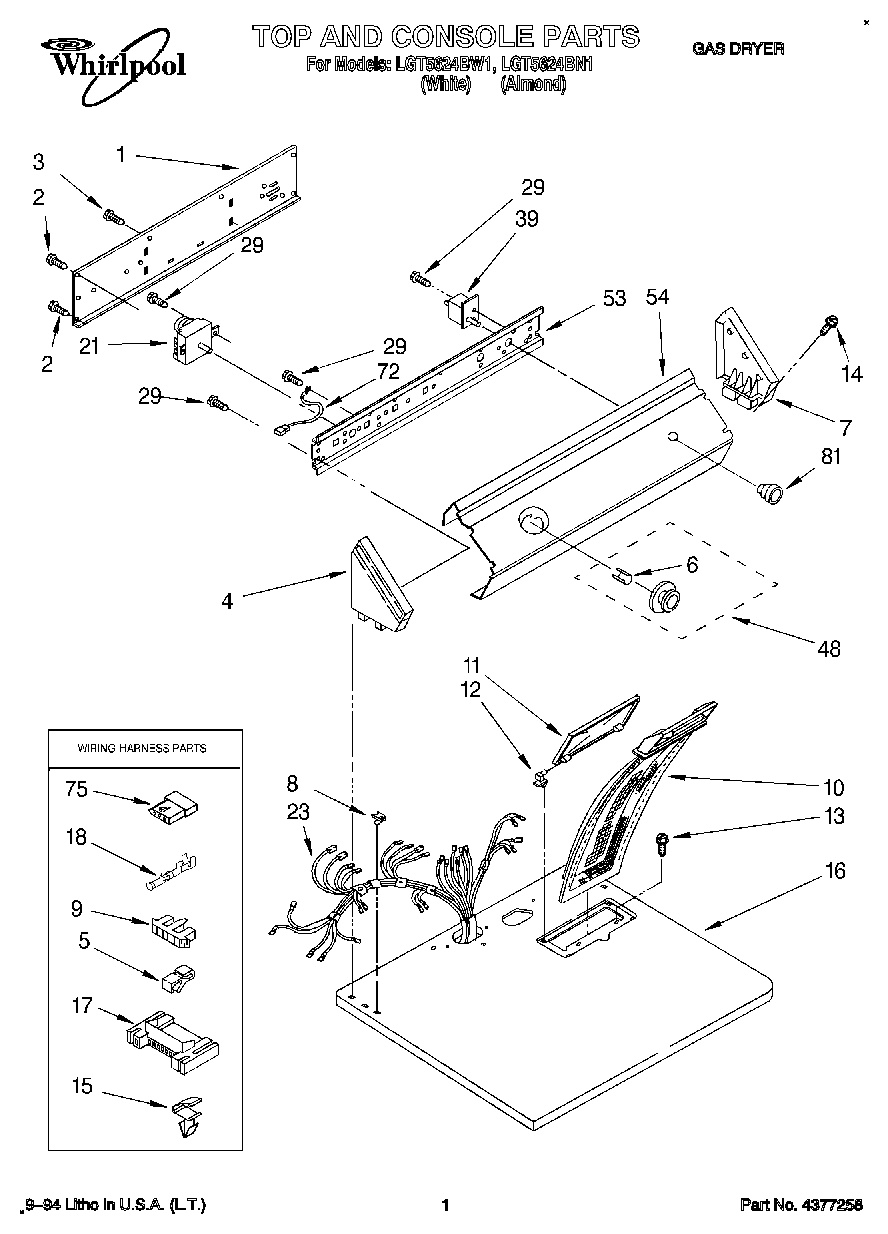

LGT5624BN1 01 – TOP AND CONSOLE, LIT/OPTIONAL
Written by
in
LGT5624BN1 01 – TOP AND CONSOLE, LIT/OPTIONAL
Products
Position
Product
350930 Whirlpool White Spray Paint
Dryer
Label, Wiring Diagram
Guide, Use & Care
Instructions, Installation
Almond (Uncut)
Leveler (Thinner)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
1
Panel, Rear Console
2
WP489069 Whirlpool Compactor Screw
3
WP693995 Whirlpool Screw
4
Cap, End (L.H.) (White)
4
Cap, End (L.H.) (Almond)
5
Clip, Retainer
6
WP688805 Whirlpool Spring Clip
7
Cap, End (R.H.) (White)
7
Cap, End (R.H.) (Almond)
8
WP357213 Whirlpool Hinge Stopper
9
Connector, Timer
10
339392V Whirlpool Dryer Lint Filter Screen
11
Cover, Lint Screen (Almond)
11
Cover, Lint Screen (White)
12
WPW10044480 Whirlpool Hinge Assembly
12
WPW10044470 Whirlpool Hinge Assembly
13
W11693756 Whirlpool Screw Assembly
14
WP388326 Whirlpool Screw
15
WP3394427 Whirlpool Clip
16
Top (White)
16
Top (Almond)
17
3395683 Whirlpool Connector
18
WP94614 Whirlpool Terminal
21
WP3976568 Whirlpool Timer
23
Harness, Wiring
29
WPW10139210 Whirlpool Screw
39
(Alt.)
39
WP3395382 Whirlpool Push To Start Switch
48
WP3957752 Whirlpool Knob
53
Bracket, Control
54
Panel, Control (Almond)
54
Panel, Control (White)
72
Wire, Ground
75
Receptacle, 3-Way Terminal (Use W/94614)
81
Knob, Push-To-Start
←
