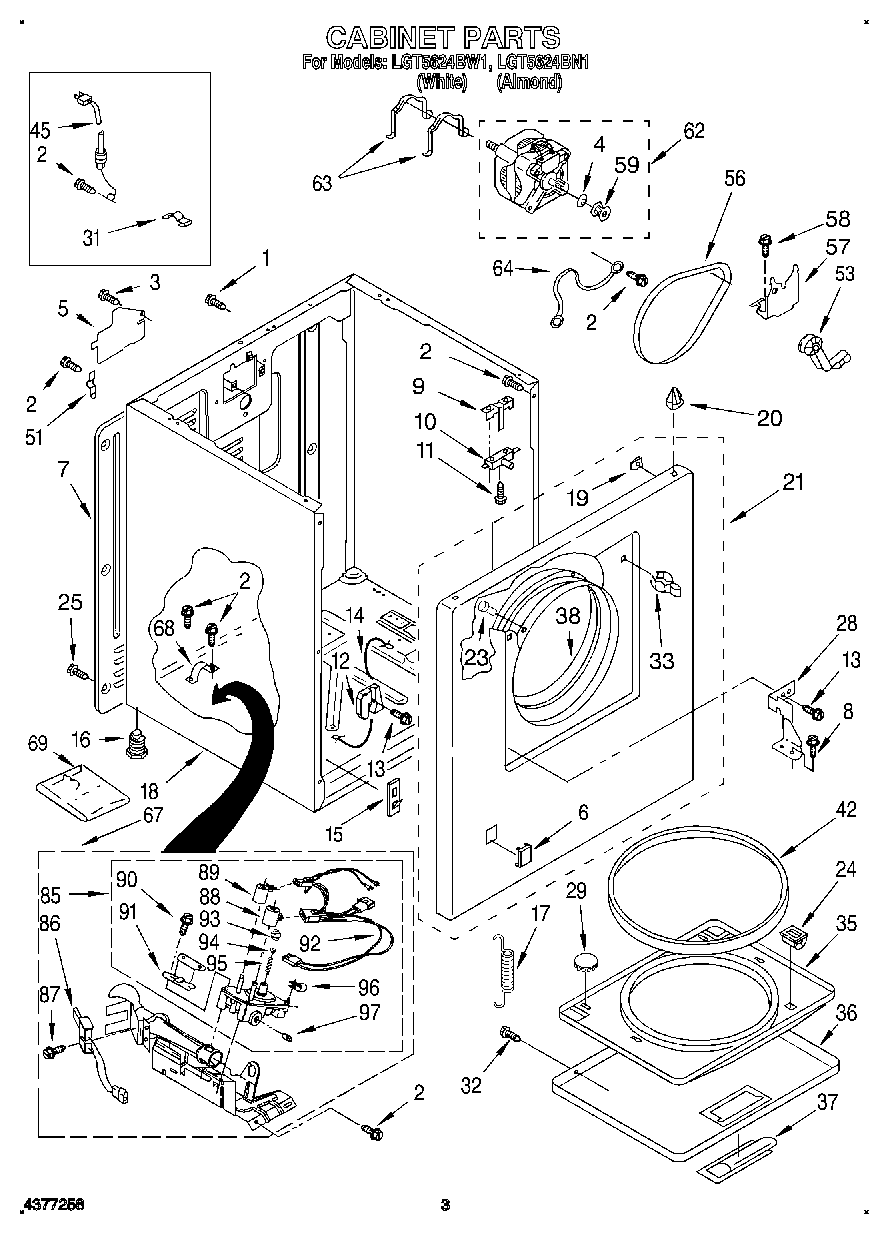

| 1 | W10850756 Whirlpool Screw |
| 2 | SCREW |
| 3 | WP693995 Whirlpool Screw |
| 4 | WP3393657 Whirlpool Belt Retainer |
| 5 | W11539855 Whirlpool Refrigerator Pump |
| 6 | Plug, Front Panel (White) |
| 6 | Plug, Front Panel (Almond) |
| 7 | 280040 Whirlpool Rear Panel |
| 8 | WP488627 Whirlpool Refrigerator Screw |
| 9 | WP691581 Whirlpool Actuator |
| 10 | W10820036 Whirlpool Door Switch Kit |
| 11 | WP98129 Whirlpool Screw |
| 12 | GUIDE |
| 12 | Guide, Cable (R.H.) |
| 13 | WP90767 Whirlpool Screw |
| 14 | Cable, Door (2) |
| 15 | W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip |
| 16 | 49621 Whirlpool Leveling Feet |
| 17 | WP337186 Whirlpool Door Spring |
| 18 | Cabinet (White (Includes Illus. Nos. 5, 7, 16, 41, and 57)) |
| 18 | Cabinet (Includes Illus. Nos.5,7,16,41, And 57.) (Almond) |
| 19 | WP98234 Whirlpool Nut |
| 20 | WP18776 Whirlpool Lock |
| 21 | Front Panel Assembly (White) |
| 21 | Front Panel Assembly (Almond) |
| 23 | 279220 Whirlpool Clip |
| 24 | 279570 Whirlpool Dryer Door Latch Kit |
| 25 | WP489069 Whirlpool Compactor Screw |
| 28 | WP238460 Whirlpool Hinge |
| 28 | Hinge, Door (R.H.) |
| 29 | WP660975 Whirlpool Button Plug |
| 31 | 8528351 Whirlpool Clip |
| 32 | WP694091 Whirlpool Screw |
| 35 | Door, Rear |
| 36 | Door, Front (Almond) |
| 36 | Door, Front (White) |
| 37 | Handle, Door (Almond) |
| 37 | WP348721 Whirlpool Handle |
| 38 | 279264 Whirlpool Bearing and Seal Kit |
| 42 | W11613302 Whirlpool Door Seal |
| 45 | W11222083 Whirlpool Power Cord |
| 51 | WP8066217 Whirlpool Hinge |
| 53 | WP691366 Whirlpool Dryer Idler Pulley Assembly |
| 56 | 341241 Whirlpool Dryer Drum Belt |
| 57 | WP348780 Whirlpool Base |
| 58 | 3400500 Whirlpool Screw |
| 59 | WP8066184 Whirlpool Dryer Motor Pulley |
| 62 | 279827 Whirlpool Dryer Drive Motor |
| 63 | WP660658 Whirlpool Clamp |
| 64 | Wire, Ground (Motor) |
| 67 | Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown) |
| 68 | 341029 Whirlpool Clamp |
| 69 | 49572A Whirlpool Dryer Propane Gas Conversion Kit |
| 85 | 279923 Whirlpool Gas Valve |
| 86 | 279311 Whirlpool Dryer Flat Igniter with Bracket |
| 87 | WPW10366705 Whirlpool Screw |
| 88 | 279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit |
| 90 | 694421 Whirlpool Screw Assembly |
| 91 | 694538 Whirlpool Bracket |
| 92 | WP3401850 Whirlpool Wire Harness |
| 93 | WP694424 Whirlpool Limiter |
| 94 | WP694423 Whirlpool Regulator |
| 95 | WP694422 Whirlpool Spring |
| 96 | WPL 694510 |
| 97 | W10295523 Whirlpool Plug |
