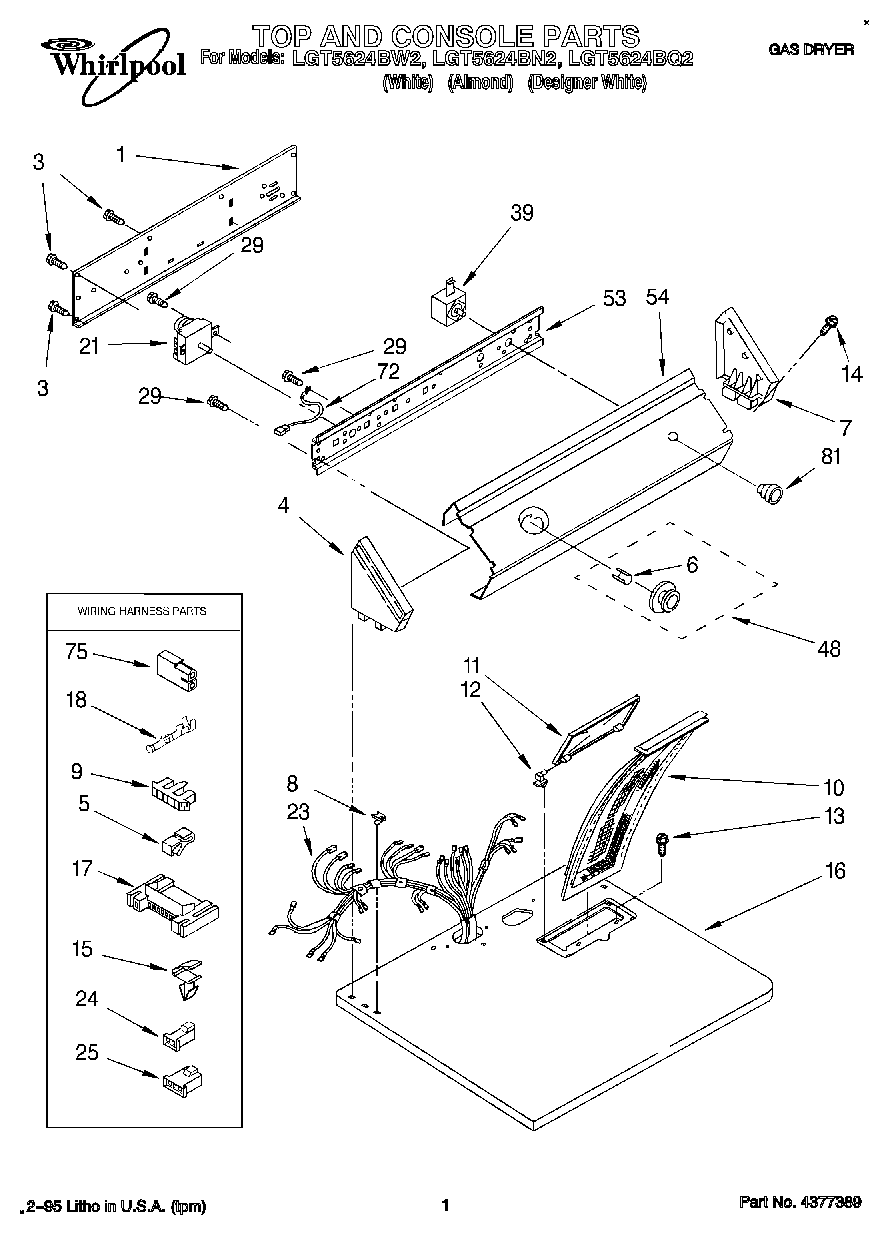

LGT5624BN2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Label, Wiring Diagram
	Dryer
	Instructions, Installation
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	350938 Whirlpool Spray Gun
	Guide, Use & Care
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
1	Panel, Rear Console
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (White)
5	Clip, Retainer
6	WP688805 Whirlpool Spring Clip
7	Cap, End (R.H.) (Almond)
7	Cap, End (R.H.) (White)
8	WP357213 Whirlpool Hinge Stopper
9	Connector, Timer
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	WP3394427 Whirlpool Clip
16	Top (Almond)
16	Top (White)
17	3395683 Whirlpool Connector
18	WP94614 Whirlpool Terminal
21	WP3976568 Whirlpool Timer
23	Harness, Wiring
24	Connector, 2-Position (Gas Valve)
25	Connector, 3-Position (Gas Valve)
29	WPW10139210 Whirlpool Screw
39	WP3395382 Whirlpool Push To Start Switch
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (Almond)
54	Panel, Control (White)
54	Panel, Control (Designer White)
72	Wire, Ground
75	Receptacle, Latching (2-Way) (Uses Terminal 94614)
81	Knob, Push-To-Start
81	WP3957800 Whirlpool Knob
