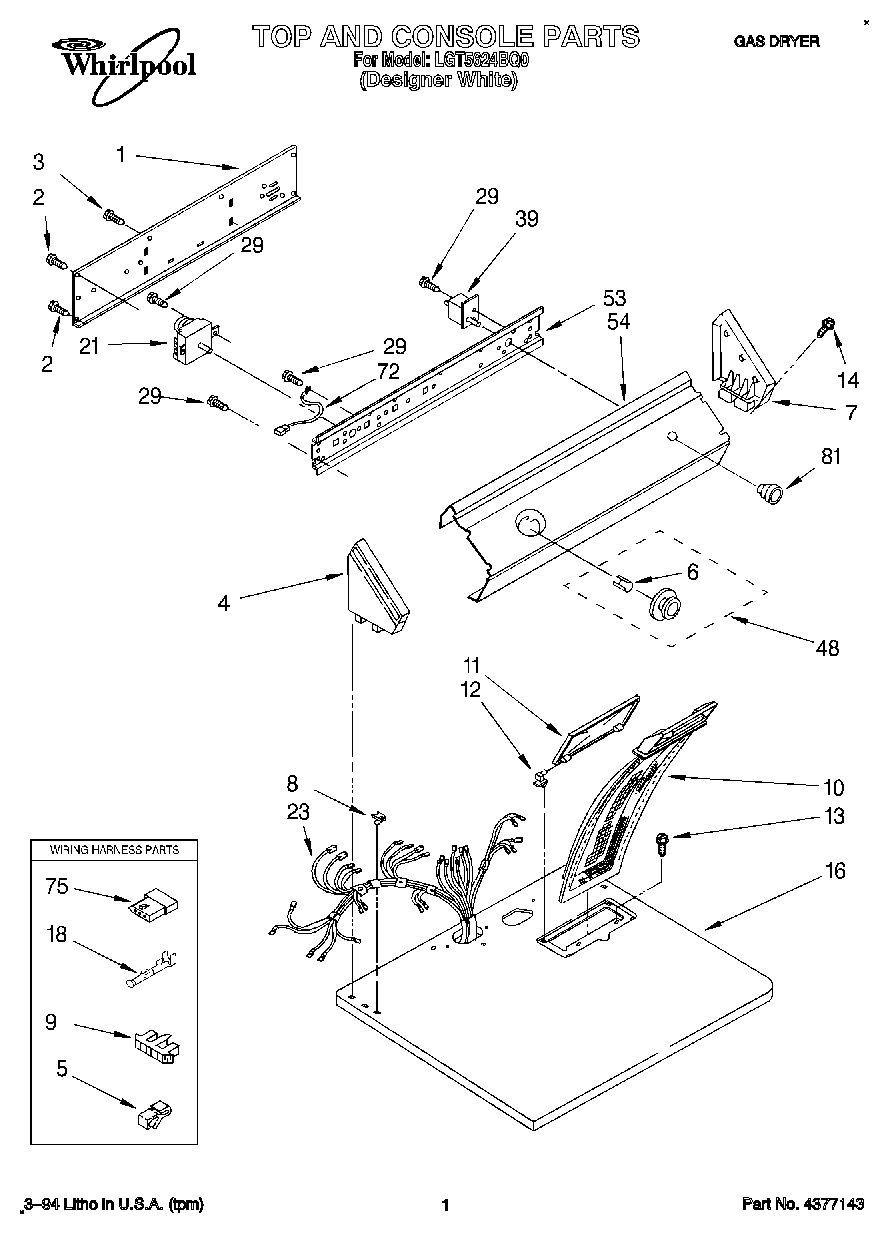

LGT5624BQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Dryer
Label, Wiring Diagram
Guide, Use & Care
Instructions, Installation
Leveler (Thinner)
799344 Whirlpool Refrigerator Paint
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
1Panel, Rear Console
2WP489069 Whirlpool Compactor Screw
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (White)
5Clip, Retainer
6WP688805 Whirlpool Spring Clip
7Cap, End (R.H.) (White)
8WP357213 Whirlpool Hinge Stopper
9Connector, Timer
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
16Top (White)
21WP3976568 Whirlpool Timer
23Harness, Wiring
29WPW10139210 Whirlpool Screw
39Switch, Push-To-Start
39(Alt.)
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control (Designer White)
72Wire, Ground
75WP94614 Whirlpool Terminal
75Receptacle, 3-Way Terminal (Use W/94614)
81WP3957800 Whirlpool Knob
