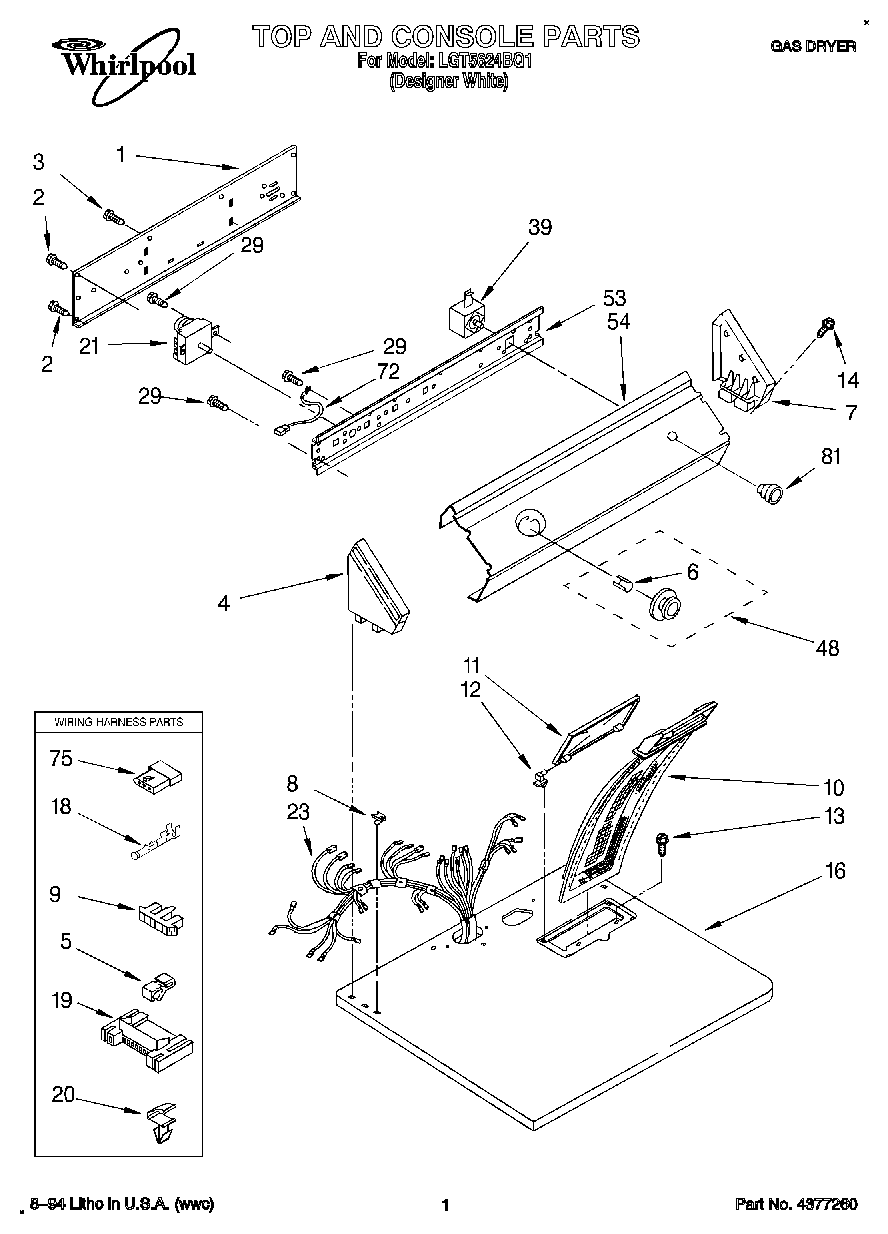

LGT5624BQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGT5624BQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGT5624BQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Guide, Use & Care
Instructions, Installation
Dryer
799344 Whirlpool Refrigerator Paint
Label, Wiring Diagram
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
1Panel, Rear Console
2WP489069 Whirlpool Compactor Screw
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (White)
5Clip, Retainer
6WP688805 Whirlpool Spring Clip
7Cap, End (R.H.) (White)
8WP357213 Whirlpool Hinge Stopper
9Connector, Timer
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
16Top (White)
18WP94614 Whirlpool Terminal
193395683 Whirlpool Connector
20WP3394427 Whirlpool Clip
21WP3976568 Whirlpool Timer
23Harness, Wiring
29WPW10139210 Whirlpool Screw
39WP3395382 Whirlpool Push To Start Switch
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control (Designer White)
72Wire, Ground
75Receptacle, 3-Way Terminal (Use W/94614)
81WP3957800 Whirlpool Knob
