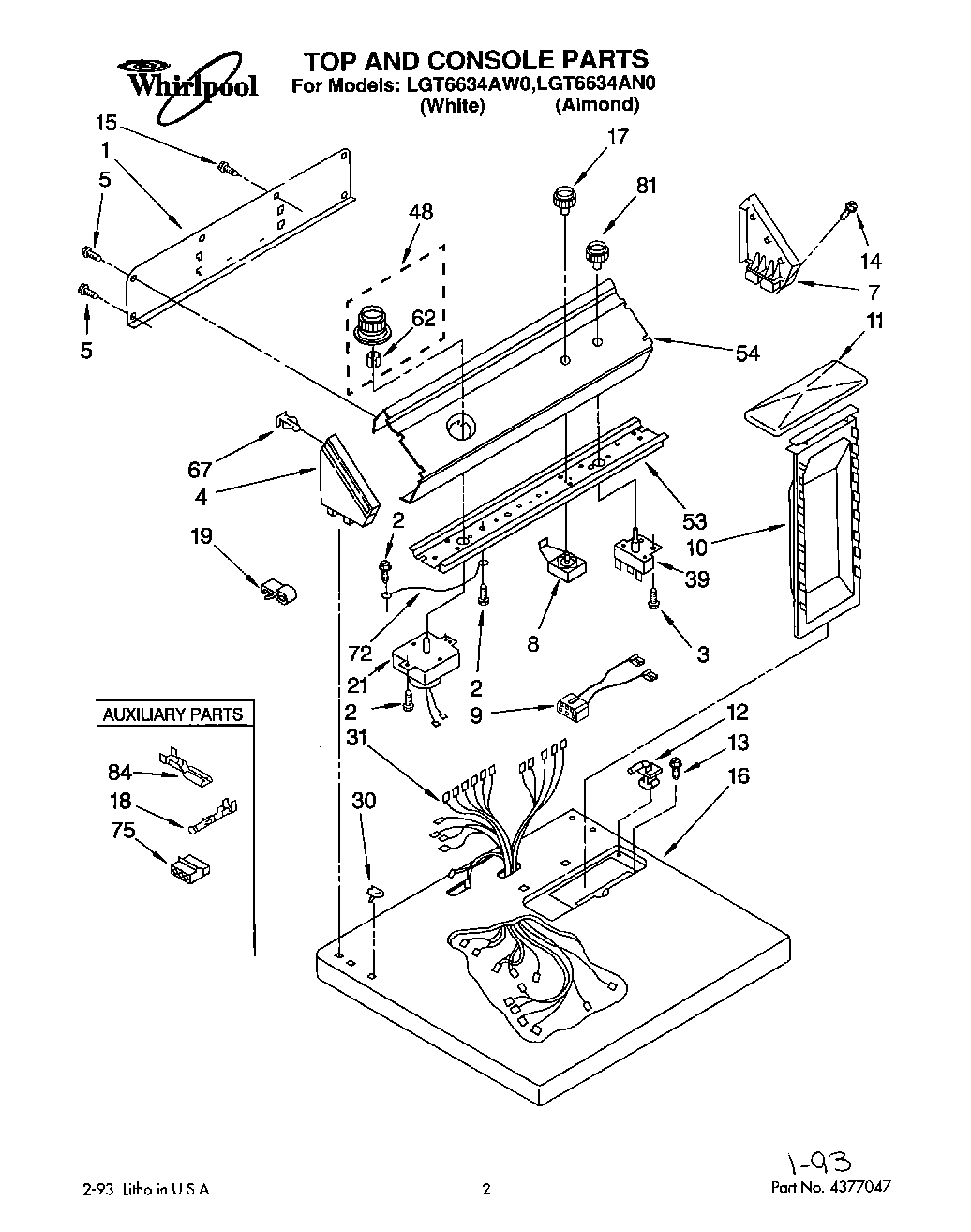

LGT6634AN0 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	Guide, Use & Care
	799344 Whirlpool Refrigerator Paint
	Leveler (Thinner)
	72017 Whirlpool Appliance Touch-Up Paint White
	List, Service Parts
	Dryer
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	Instructions, Installation
1	Panel, Rear Console
2	WPW10139210 Whirlpool Screw
3	WP488729 Whirlpool Refrigerator Door Screw
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Almond)
5	WP489069 Whirlpool Compactor Screw
7	Cap, End (R.H.) (White)
7	Cap, End (R.H.) (Almond)
8	Switch, Temperature
9	8283286 Whirlpool Wire Harness
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	WP693995 Whirlpool Screw
16	Top (White)
16	Top (Almond)
17	KNOB
18	WP94614 Whirlpool Terminal
19	Clip, Retainer
21	WP3976568 Whirlpool Timer
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	Switch, Push-To-Start
39	(Alt.)
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
75	Receptacle, 3-Way Terminal (Use W/94614)
81	Knob, Push-To-Start
84	WP596797 Whirlpool Terminal
