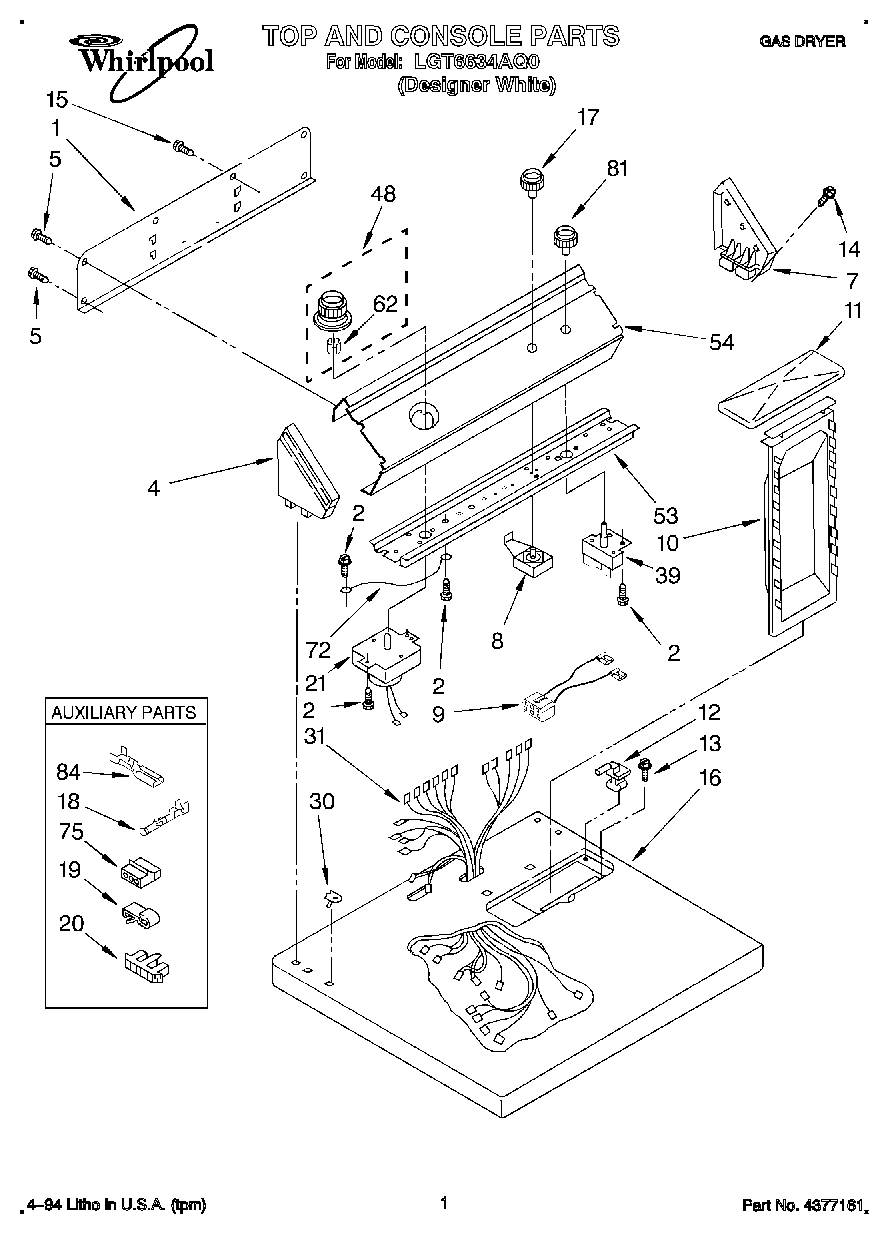

LGT6634AQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Dryer
	Guide, Use & Care
	Instructions, Installation
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	Label, Wiring Diagram
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
1	Panel, Rear Console
2	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.) (White)
5	WP489069 Whirlpool Compactor Screw
7	Cap, End (R.H.) (White)
8	Switch, Temperature
9	8283286 Whirlpool Wire Harness
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	WP693995 Whirlpool Screw
16	Top (White)
17	WP3957796 Whirlpool Knob
18	WP94614 Whirlpool Terminal
19	Clip, Retainer
20	Connector, Timer
21	WP3976568 Whirlpool Timer
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	(Alt.)
39	Switch, Push-To-Start
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (White)
62	WP688805 Whirlpool Spring Clip
72	Wire, Ground
75	Receptacle, 3-Way Terminal (Use W/94614)
81	WP3957800 Whirlpool Knob
84	WP596797 Whirlpool Terminal
