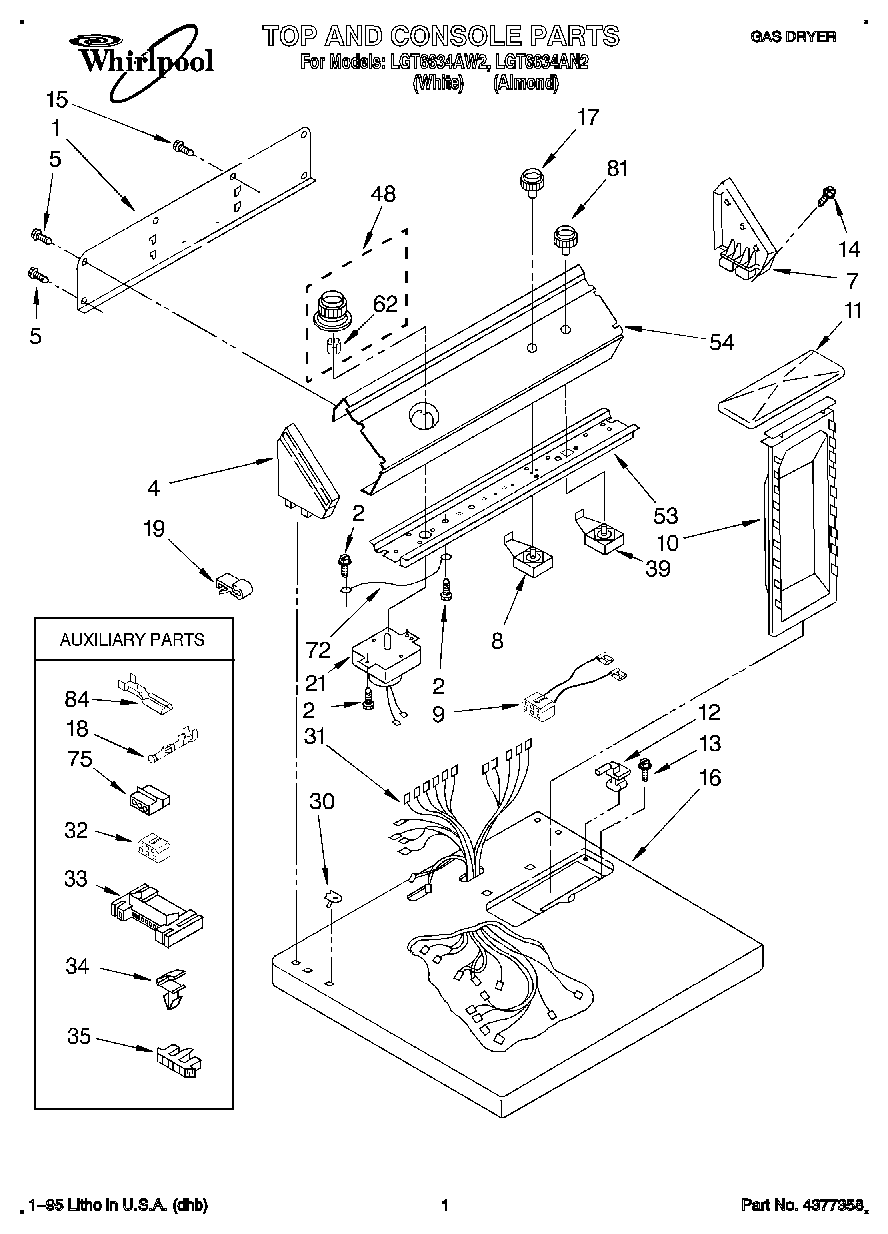

LGT6634AW2 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGT6634AW2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGT6634AW2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Dryer
Instructions, Installation
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
Label, Wiring Diagram
72017 Whirlpool Appliance Touch-Up Paint White
Guide, Use & Care
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
1Panel, Rear Console
2WPW10139210 Whirlpool Screw
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Almond)
5WP489069 Whirlpool Compactor Screw
7Cap, End (R.H.) (Almond)
7Cap, End (R.H.) (White)
8Switch, Temperature
98283286 Whirlpool Wire Harness
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WP693995 Whirlpool Screw
16Top (Almond)
16Top (White)
17KNOB
19Clip, Retainer
21WP3976568 Whirlpool Timer
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32Block, Disconnect
333395683 Whirlpool Connector
34WP3394427 Whirlpool Clip
35Connector, Timer
39WP3395382 Whirlpool Push To Start Switch
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Almond)
62WP688805 Whirlpool Spring Clip
72Wire, Ground
75Receptacle, Latching (2-Way) (Uses Terminal 94614)
81Knob, Push-To-Start
84WP94614 Whirlpool Terminal
