LGT6638AN0 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Dryer
	Almond (Uncut)
	Instructions, Installation
	WP72107 Whirlpool Touchup
	Guide, Use & Care
	799344 Whirlpool Refrigerator Paint
	350938 Whirlpool Spray Gun
	Leveler (Thinner)
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly

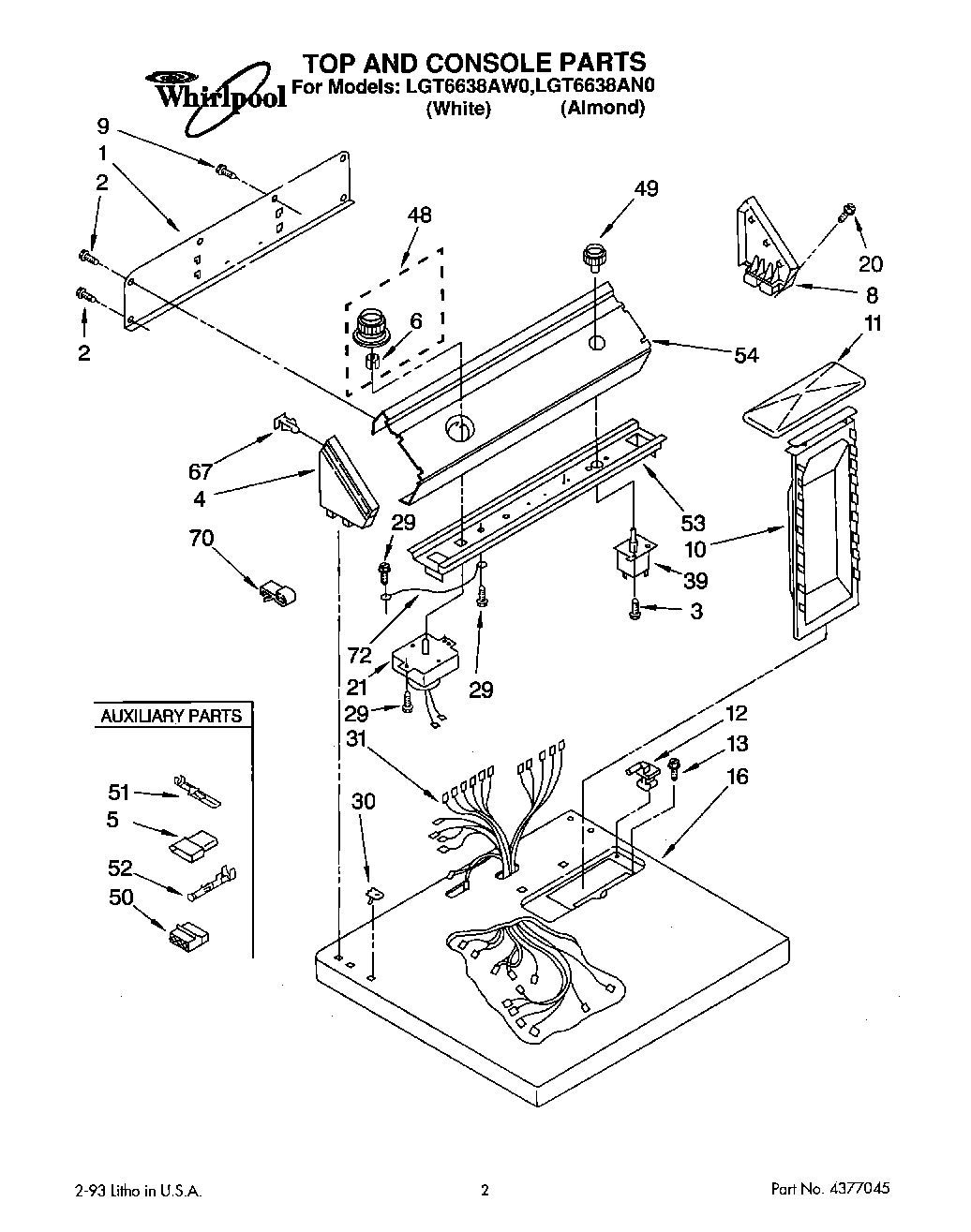

	List, Service Parts
1	Panel, Rear Console
2	WP489069 Whirlpool Compactor Screw
3	WP488729 Whirlpool Refrigerator Door Screw
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (White)
5	353424 Whirlpool Connector
6	WP688805 Whirlpool Spring Clip
8	Cap, End (R.H.) (White)
8	Cap, End (R.H.) (Almond)
9	WP693995 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
16	Top (White)
16	Top (Almond)
20	WP388326 Whirlpool Screw
21	WP3976569 Whirlpool Timer
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	Switch, Push-To-Start
48	WP3957752 Whirlpool Knob
49	Knob, Push-To-Start
50	Receptacle, 3-Way Terminal (Use W/94614)
51	WP596797 Whirlpool Terminal
52	WP94614 Whirlpool Terminal
53	Bracket, Control
54	Panel, Control (Almond)
54	Panel, Control (White)
67	WP689559 Whirlpool Nut
70	Clip, Retainer
72	Wire, Ground
