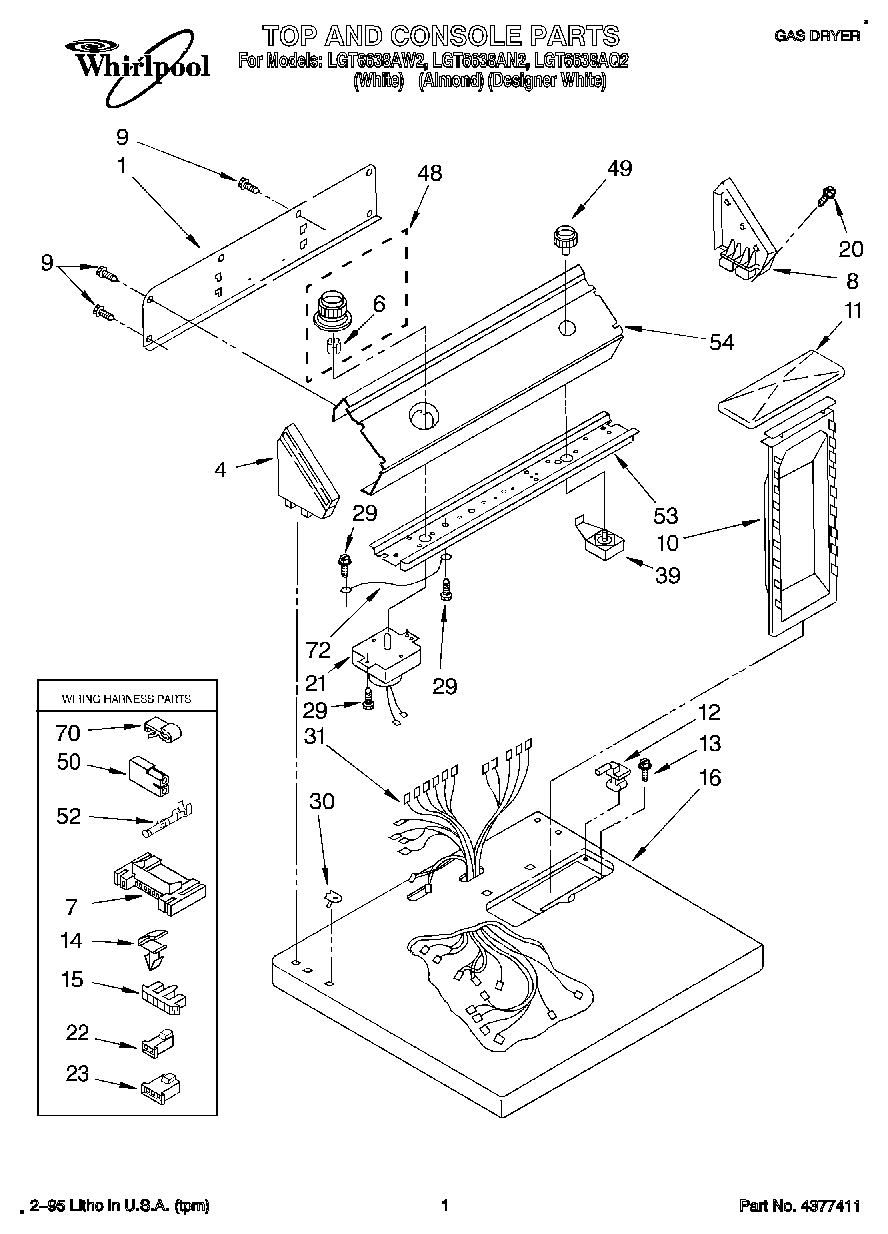

LGT6638AN2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Label, Wiring Diagram
	Dryer
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Instructions, Installation
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	Guide, Use & Care
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Almond)
6	WP688805 Whirlpool Spring Clip
7	3395683 Whirlpool Connector
8	Cap, End (R.H.) (White)
8	Cap, End (R.H.) (Almond)
9	WP693995 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP3394427 Whirlpool Clip
15	Connector, Timer
16	Top (White)
16	Top (Almond)
20	WP388326 Whirlpool Screw
21	WP3976569 Whirlpool Timer
22	Connector, 2-Position (Gas Valve)
23	Connector, 3-Position (Gas Valve)
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	WP3395382 Whirlpool Push To Start Switch
48	WP3957752 Whirlpool Knob
49	Knob, Push-To-Start
49	WP3957800 Whirlpool Knob
50	Receptacle, Latching (2-Way) (Uses Terminal 94614)
52	WP94614 Whirlpool Terminal
53	Bracket, Control
54	Panel, Control FOR MODEL (LGT6638AQ2)
54	Panel, Control (White)
54	Panel, Control (Almond)
70	Clip, Retainer
72	Wire, Ground
