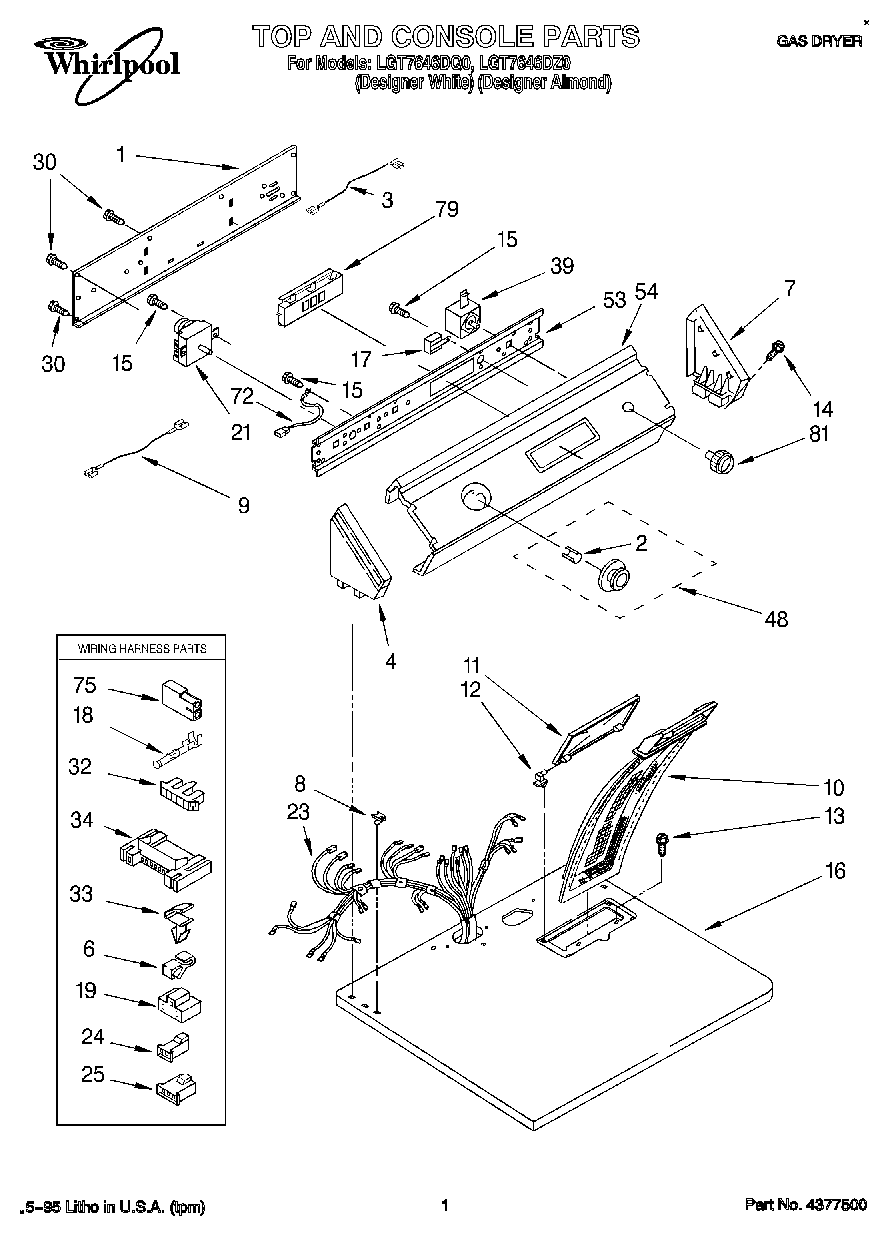

LGT7646DZ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Dryer
	Guide, Use & Care
	Instructions, Installation
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Label, Wiring Diagram
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	WP688805 Whirlpool Spring Clip
3	Wire, Jumper (Violet)
3	Wire, Jumper (Blue)
4	Cap, End (L.H.)
4	Cap, End (L.H.) (Almond)
6	Clip, Retainer
7	Cap, End (R.H.) (Almond)
7	Cap, End (R.H.)
8	WP357213 Whirlpool Hinge Stopper
9	Wire, Jumper (Black)
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	WPW10139210 Whirlpool Screw
16	Top (Almond)
16	Top (White)
17	WP694419 Whirlpool Buzzer Adjuster
18	WP94614 Whirlpool Terminal
19	3401144 Whirlpool Connector
21	WP3976574 Whirlpool Timer
23	Harness, Wiring
24	Connector, 2-Position (Gas Valve)
25	Connector, 3-Position (Gas Valve)
30	WP693995 Whirlpool Screw
32	Connector, Timer
33	WP3394427 Whirlpool Clip
34	3395683 Whirlpool Connector
39	WP3398095 Whirlpool Dryer Start Relay
48	WP3957752 Whirlpool Knob
48	3957753 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
72	Wire, Ground
75	Receptacle, Latching (2-Way) (Uses Terminal 94614)
79	Switch, Clean-Touch (White)
79	Switch, Clean-Touch (Almond)
81	WP3957796 Whirlpool Knob
81	3957797 Whirlpool Knob
