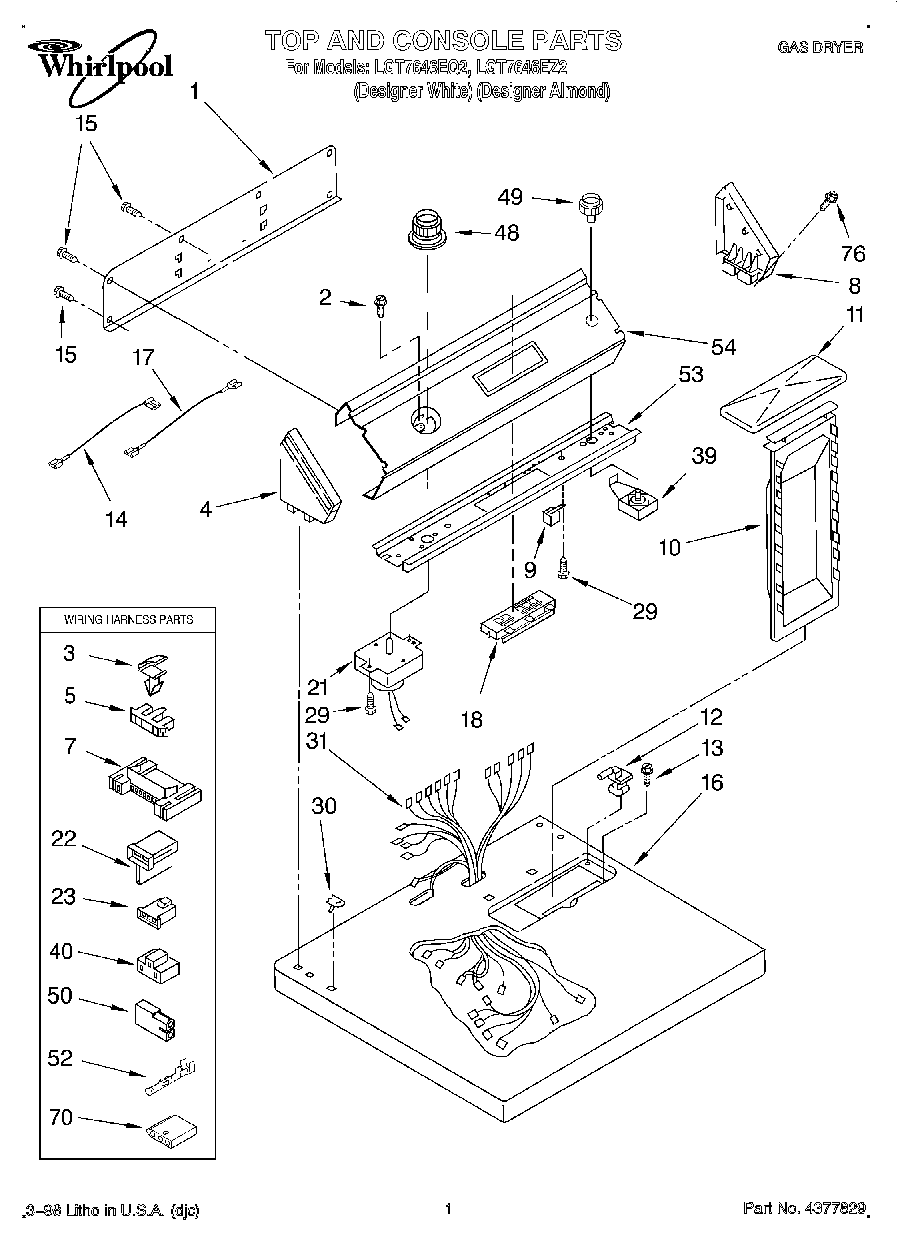

LGT7646EZ2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Installation
	WPL LIT3406071
	WPL LIT3406692
	Dryer
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	3400859 Whirlpool Screw
3	WP3394427 Whirlpool Clip
4	Cap, End (L.H.)
4	Cap, End (L.H.) (Almond)
5	Connector, Timer
7	3395683 Whirlpool Connector
8	Cap, End (R.H.)
8	Cap, End (R.H.) (Almond)
9	WP694419 Whirlpool Buzzer Adjuster
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Wire, Jumper (Blue)
14	Wire, Jumper (White)
14	Wire, Jumper (Violet)
15	WP693995 Whirlpool Screw
16	Top (Almond)
16	Top (White)
17	Wire, Jumper (Yellow)
17	Wire, Jumper (Black)
18	Switch, Clean Touch (Almond)
18	Switch, Clean Touch (White)
21	WP3976580 Whirlpool Timer
22	WP3403499 Whirlpool Connector
23	WP3403498 Whirlpool Connector
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	WP3398095 Whirlpool Dryer Start Relay
40	3401144 Whirlpool Connector
48	WP3957752 Whirlpool Knob
48	3957753 Whirlpool Knob
49	3957797 Whirlpool Knob
49	WP3957796 Whirlpool Knob
50	Receptacle, Latching (2-Way) (Uses Terminal 94614)
52	WP94614 Whirlpool Terminal
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
70	3936144 Whirlpool Connector
76	WP388326 Whirlpool Screw
