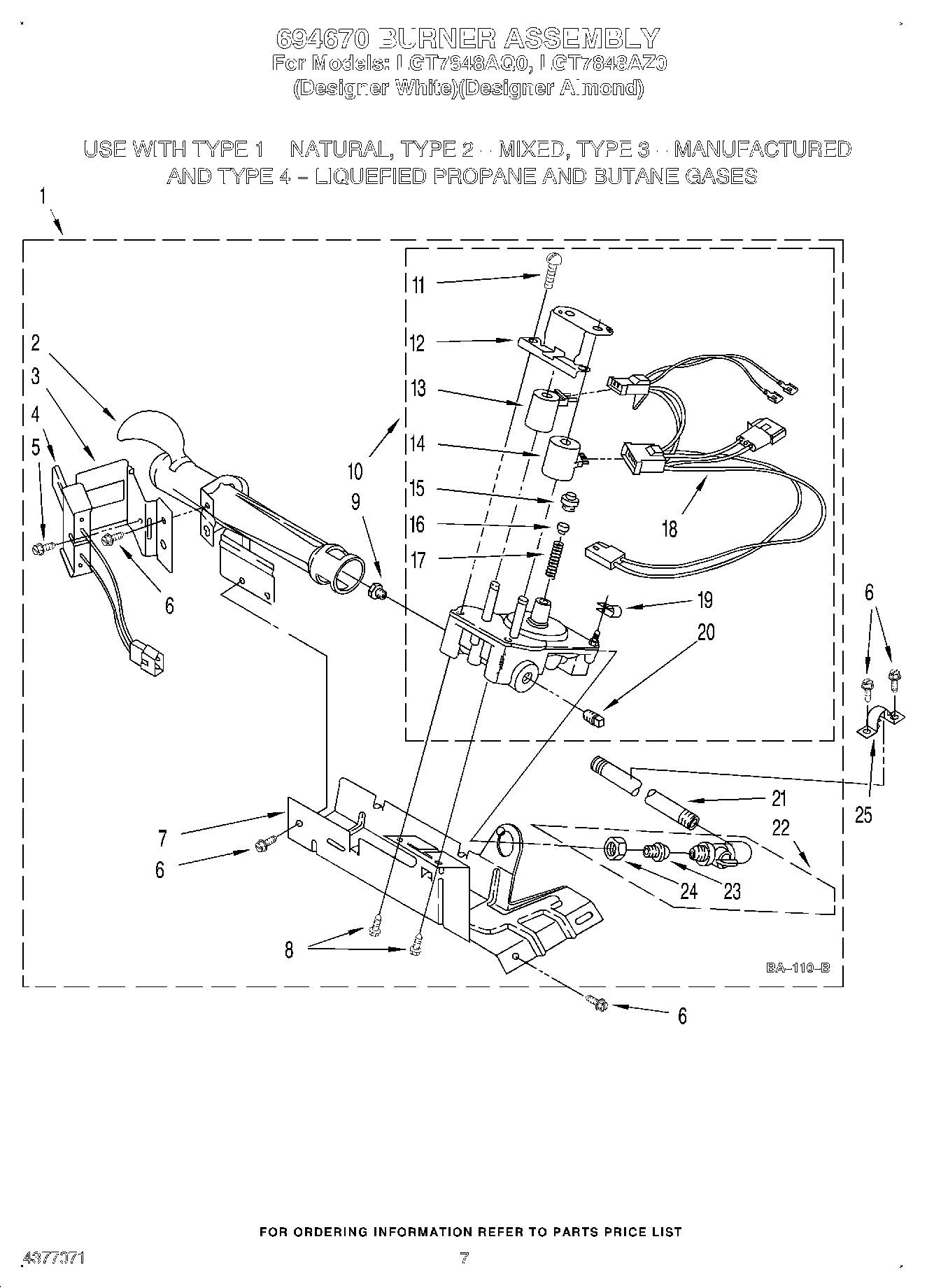

| 1 | Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown) |
| 2 | WP693140 Whirlpool Burner |
| 3 | WP694298 Whirlpool Bracket |
| 4 | 279311 Whirlpool Dryer Flat Igniter with Bracket |
| 5 | WPW10366705 Whirlpool Screw |
| 6 | SCREW |
| 7 | Base, Burner |
| 8 | WP90767 Whirlpool Screw |
| 9 | Orifice, Burner (Type 2) |
| 9 | WP234826 Whirlpool Gas Orifice |
| 9 | Orifice, Burner (Type 3) |
| 9 | WP234868 Whirlpool Gas Orifice |
| 9 | WP229742 Whirlpool Gas Orifice |
| 10 | 279923 Whirlpool Gas Valve |
| 11 | 694421 Whirlpool Screw Assembly |
| 12 | 694538 Whirlpool Bracket |
| 14 | 279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit |
| 15 | WP694424 Whirlpool Limiter |
| 16 | WP694423 Whirlpool Regulator |
| 17 | WP694422 Whirlpool Spring |
| 18 | WP3401850 Whirlpool Wire Harness |
| 19 | WPL 694510 |
| 20 | W10295523 Whirlpool Plug |
| 21 | Pipe, Gas Supply |
| 22 | Valve & Union, Shut-Off |
| 23 | 3393767 Whirlpool Pipe |
| 24 | Nut, Compression |
| 25 | 49572A Whirlpool Dryer Propane Gas Conversion Kit |
| 25 | 341029 Whirlpool Clamp |
| 25 | Kit, Conversion Type 1 To Type 3 (MFD) |
