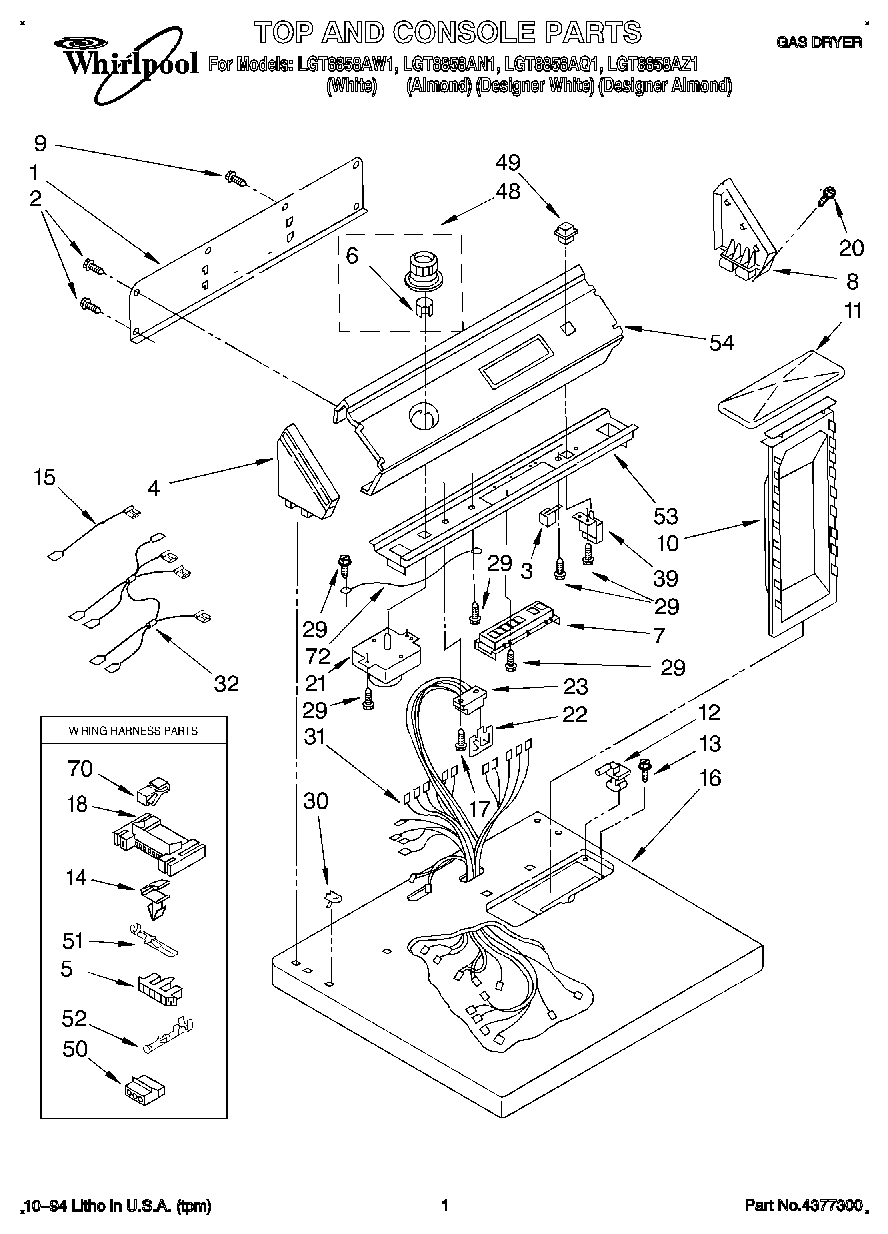

LGT8858AQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGT8858AQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGT8858AQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Dryer
Guide, Use & Care
Instructions, Installation
Almond (Uncut)
WPL LIT3399692
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
1Panel, Rear Console
2WP489069 Whirlpool Compactor Screw
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Almond)
5Connector, Timer
6WP688805 Whirlpool Spring Clip
7LGT8858AQ1
7LGT8858AZ1
7Switch, Clean-Touch
8Cap, End (R.H.) (White)
8Cap, End (R.H.) (Almond)
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP3394427 Whirlpool Clip
15Wire, Jumper (Blue)
15Wire, Jumper (Violet)
16Top (White)
16Top (Almond)
17SCREW
183395683 Whirlpool Connector
20WP388326 Whirlpool Screw
21WP3397273 Whirlpool Timer
22WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
233391885 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32Wire, Jumper (Signal Bypass)
39Relay, Push-To-Start
483957753 Whirlpool Knob
48WP3957752 Whirlpool Knob
49Button, Push To Start
49LGT8858AQ1
49LGT8858AZ1
50Receptacle, 3-Way Terminal (Use W/94614)
51WP596797 Whirlpool Terminal
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control FOR MODELS (LGT8858AQ1)
54Panel, Control (Almond)
54Panel, Control (White)
54Panel, Control FOR MODELS (LGT8858AZ1)
70Clip, Retainer
72Wire, Ground
