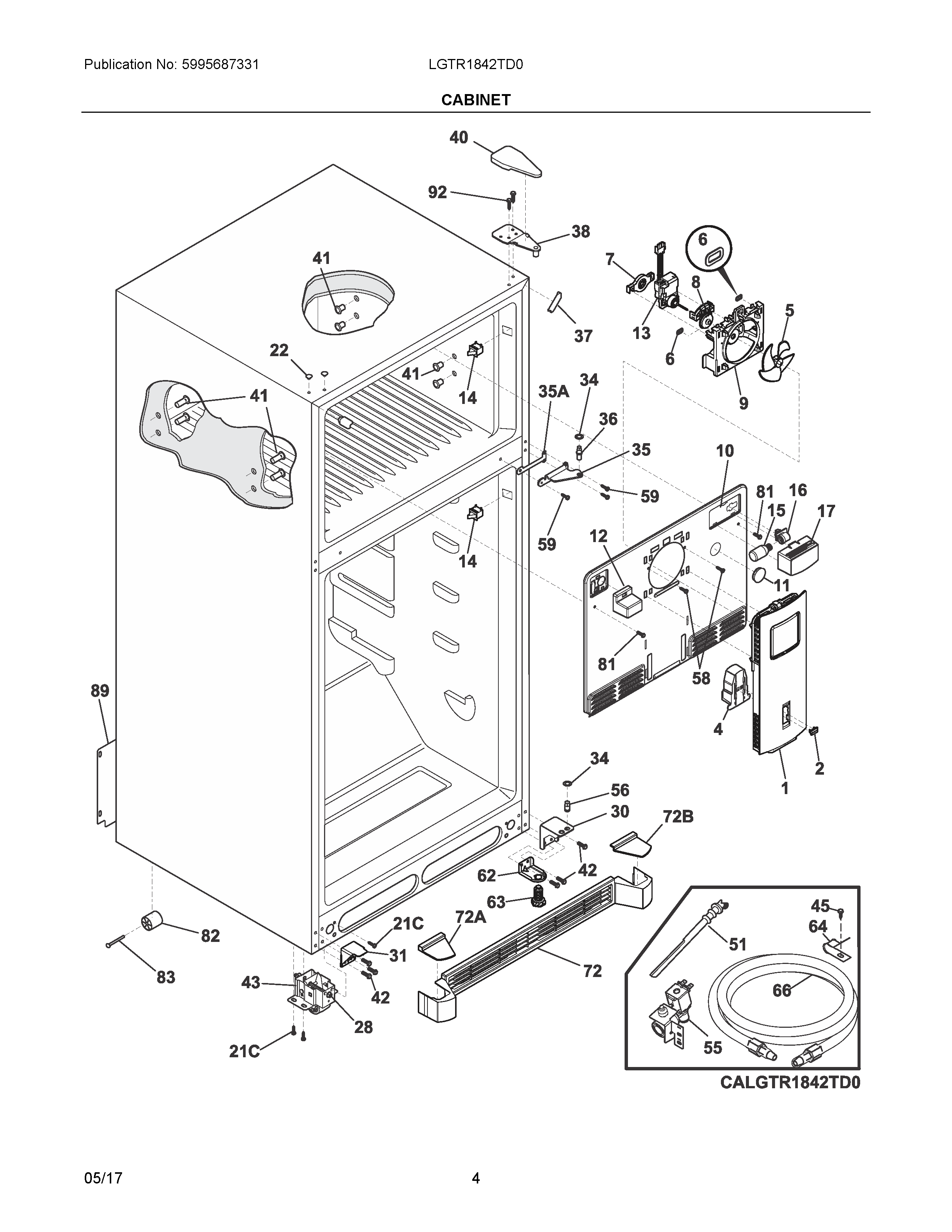

LGTR1842TD0 03 – CABINET

LGTR1842TD0 03 – CABINET

Written by

in

LGTR1842TD0 03 – CABINET

Products

PositionProduct
NIA218515401 Frigidaire Refrigerator Clip
NIAWCI 5304498949
NI218990901 Frigidaire Clip
NIB5304453707 Frigidaire Oven Screw
NI240494001 Frigidaire Refrigerator Plug Button
NI218843801 Frigidaire Refrigerator Screw
NIA5304434189 Frigidaire Refrigerator Seal Kit
NIA215474201 Frigidaire Refrigerator Washer
15304511140 Frigidaire Refrigerator Cover
2242229401 Frigidaire Refrigerator Knob
45304511141 Frigidaire Refrigerator Damper
5242219302 Frigidaire Refrigerator Evaporator Fan Blade
65304497413 Frigidaire Refrigerator Ring
7242287501 Frigidaire Refrigerator Grommet
8242237301 Frigidaire Grommet
9242229301 Frigidaire Refrigerator Shroud Bracket
10COVER, COIL
115303208309 Frigidaire Refrigerator Plug Hole
125304498990 Frigidaire Refrigerator Cover
13242219205 Frigidaire Refrigerator Blower Motor
14241554901 Frigidaire Refrigerator Light/Lamp Switch
155304510893 Frigidaire Refrigerator Light Bulb
16240590403 Frigidaire Refrigerator Light Socket
17242287601 Frigidaire LENS
21C218252201 Frigidaire Refrigerator Screw
22215774918 Frigidaire Refrigerator Button Plug
285304499445 Frigidaire Refrigerator Roller Assembly
30240314011 Frigidaire Refrigerator Lower Bracket Hinge
31SUPPORT, COVER, TOE GRILLE
34240311303 Frigidaire Refrigerator Hinge Nylon Washer
35A240336803 Frigidaire Refrigerator Hinge Spacer
35240313803 Frigidaire Refrigerator Center Hinge Bracket
36241708002 Frigidaire Refrigerator Center Hinge Pin
37242161202 Frigidaire Refrigerator Trim-Cabinet Corner
38240313703 Frigidaire Refrigerator Hinge
40240354404 Frigidaire Refrigerator Upper Hinge Cover
415304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42240578902 Frigidaire Screw Mounting Hinge
45241500305 Frigidaire Refrigerator Screw
51241796405 Frigidaire Refrigerator Fill Water Tube
55ICE MAKER WATER VALVE
56240516502 Frigidaire Refrigerator Lower Hinge Pin
58240433204 Frigidaire Refrigerator Screw
59240442707 Frigidaire Refrigerator Screw #10-32 X 3/4
62BRACKET, ANTI TIP, BLACK
635304498951 Frigidaire Refrigerator Screw
645304455846 Frigidaire Refrigerator Clamp
66241850615 Frigidaire Ice Maker Fill Tube Assembly
72BCOVER, LOWER HINGE, BLACK, RH
725304498916 Frigidaire Refrigerator Toe Grille
72ACOVER, LOWER HINGE, BLACK, LH
815304455650 Frigidaire Refrigerator Screw
82240335202 Frigidaire Refrigerator Roller
835304455655 Frigidaire Refrigerator Rivet
89241733911 Frigidaire Refrigerator Access Cover
92241710601 Frigidaire Refrigerator Screw
