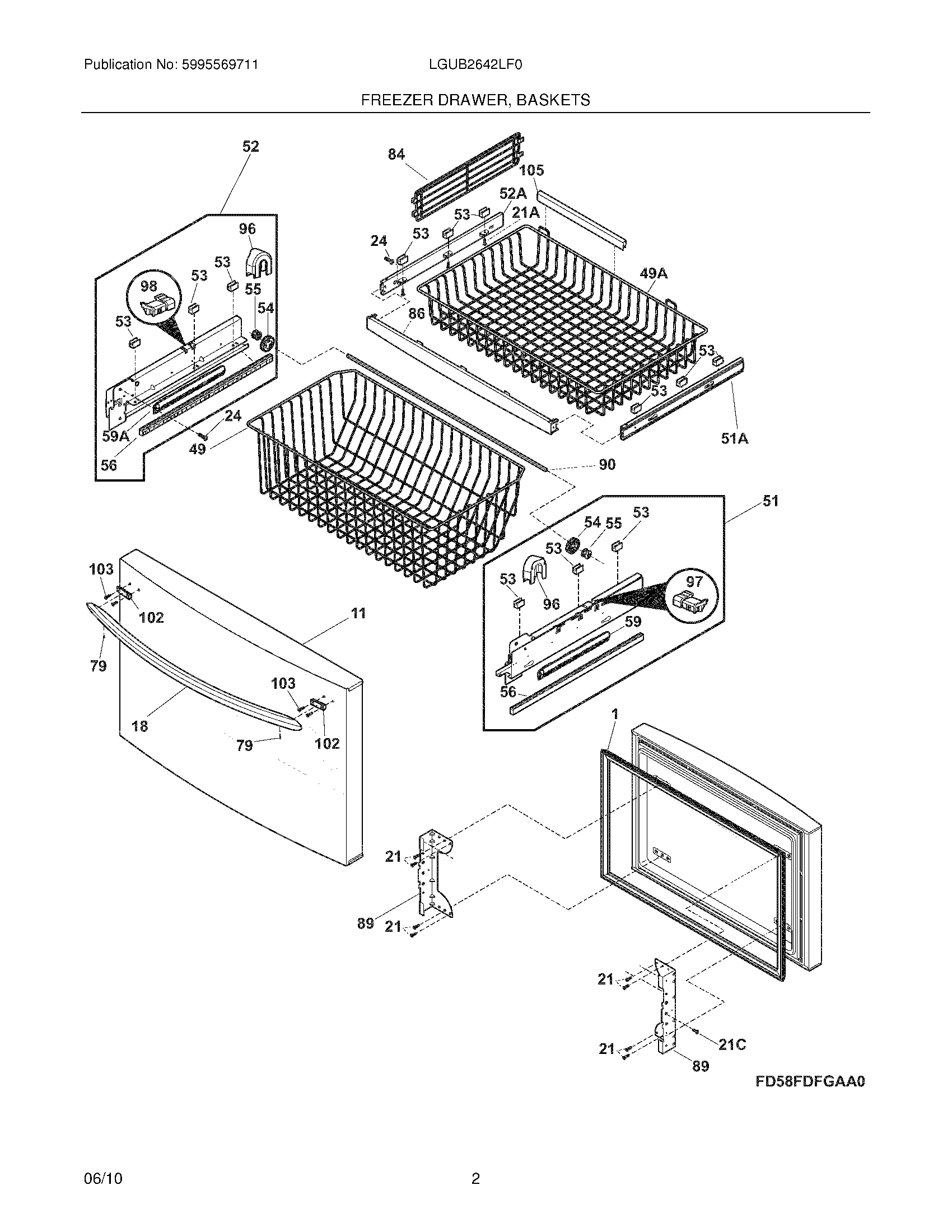

LGUB2642LF0 03 – FREEZER DRAWER

LGUB2642LF0 03 – FREEZER DRAWER

Written by

in

LGUB2642LF0 03 – FREEZER DRAWER

Products

PositionProduct
NI242039701 Frigidaire Refrigerator Screw
NI241979601 Frigidaire Refrigerator Bumper
NI241701902 Frigidaire Refrigerator 3/32" Screwdriver
NI5304467131 Frigidaire Refrigerator Wrench
NI242011101 Frigidaire Refrigerator Pin-Lock
1GASKET
11WCI 241987916
18242029401 Frigidaire Refrigerator Brushed Door Handle
21A241953902 Frigidaire Refrigerator Screw
21240383407 Frigidaire Refrigerator Screw
21C241899703 Frigidaire Refrigerator Screw
245304515677 Frigidaire Package of 4 Screws
49WCI 242026802
49AWCI 241780809
515304489981 Frigidaire Refrigerator Basket Slide Kit
51A241894223 Frigidaire Drawer Slide Rail, Right
52241883704 Frigidaire Refrigerator Slide Assembly
52A5304491063 Frigidaire Slide Rail Assembly Set
53WCI 241824201
54241770201 Frigidaire Refrigerator Pinion
55241770301 Frigidaire Guard
56WCI 241762801
595304474655 Frigidaire Refrigerator Self-Close Assembly
59A5304474656 Frigidaire Refrigerator Self-Close Assembly
79218755402 Frigidaire Refrigerator Set Screw
84241780904 Frigidaire Refrigerator Divider
86WCI 242090701
89241972302 Frigidaire Refrigerator Drawer Bracket (Freezer)
90WCI 241770703
96241973501 Frigidaire Refrigerator Cover Pinion White
97241926401 Frigidaire Refrigerator Actuator
98241926402 Frigidaire Refrigerator Actuator
102242029301 Frigidaire Refrigerator Door Handle Mounting Block
103242077302 Frigidaire Screw
105242116801 Frigidaire Refrigerator Trim-Basket
