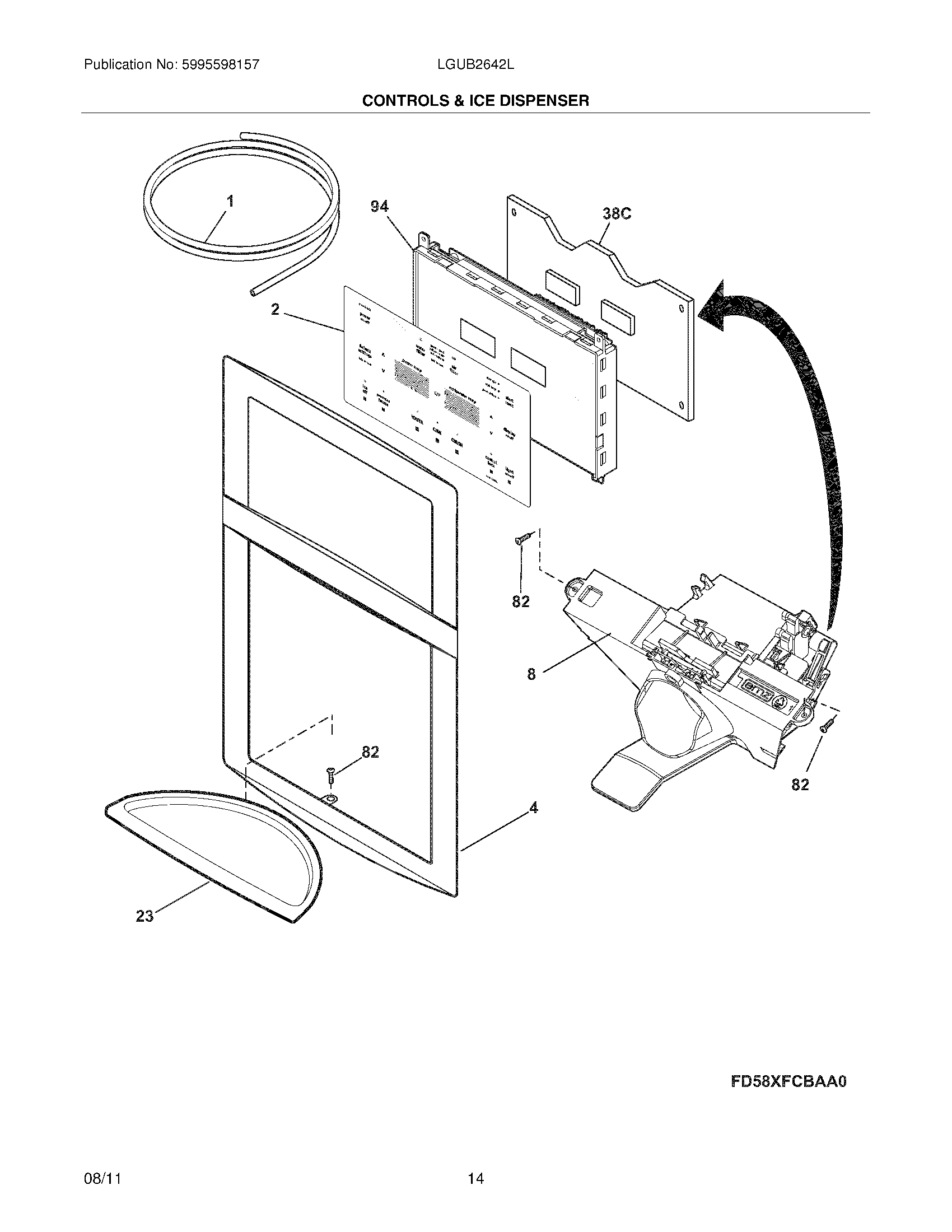

LGUB2642LF4 13 – CONTROLS & ICE DISPENSER

LGUB2642LF4 13 – CONTROLS & ICE DISPENSER

Written by

in

LGUB2642LF4 13 – CONTROLS & ICE DISPENSER

Products

PositionProduct
NITube-water,5/16 – 67“ ,natural
NI241510904 Frigidaire Refrigerator Dispenser Harness
NITube-water,1/4 – 24“ ,green
NI5303918596 Frigidaire Refrigerator Dispenser Heater Kit
NI241920106 Frigidaire Fill Tube Kit
NI5303918484 Frigidaire Dispenser
1Tube-water,5/16 – 64“ ,yellow ,SD
2242166901 Frigidaire Refrigerator Switch
4242089602 Frigidaire Refrigerator Module Cover
8242074216 Frigidaire Refrigerator Dispenser Module
23WCI 242034004
38C241973711 Frigidaire Refrigerator Dispenser Control Board
82241953902 Frigidaire Refrigerator Screw
94WCI 242034101
