LGUI2149LE0 09 – SYSTEM

LGUI2149LE0 09 – SYSTEM

Written by

in

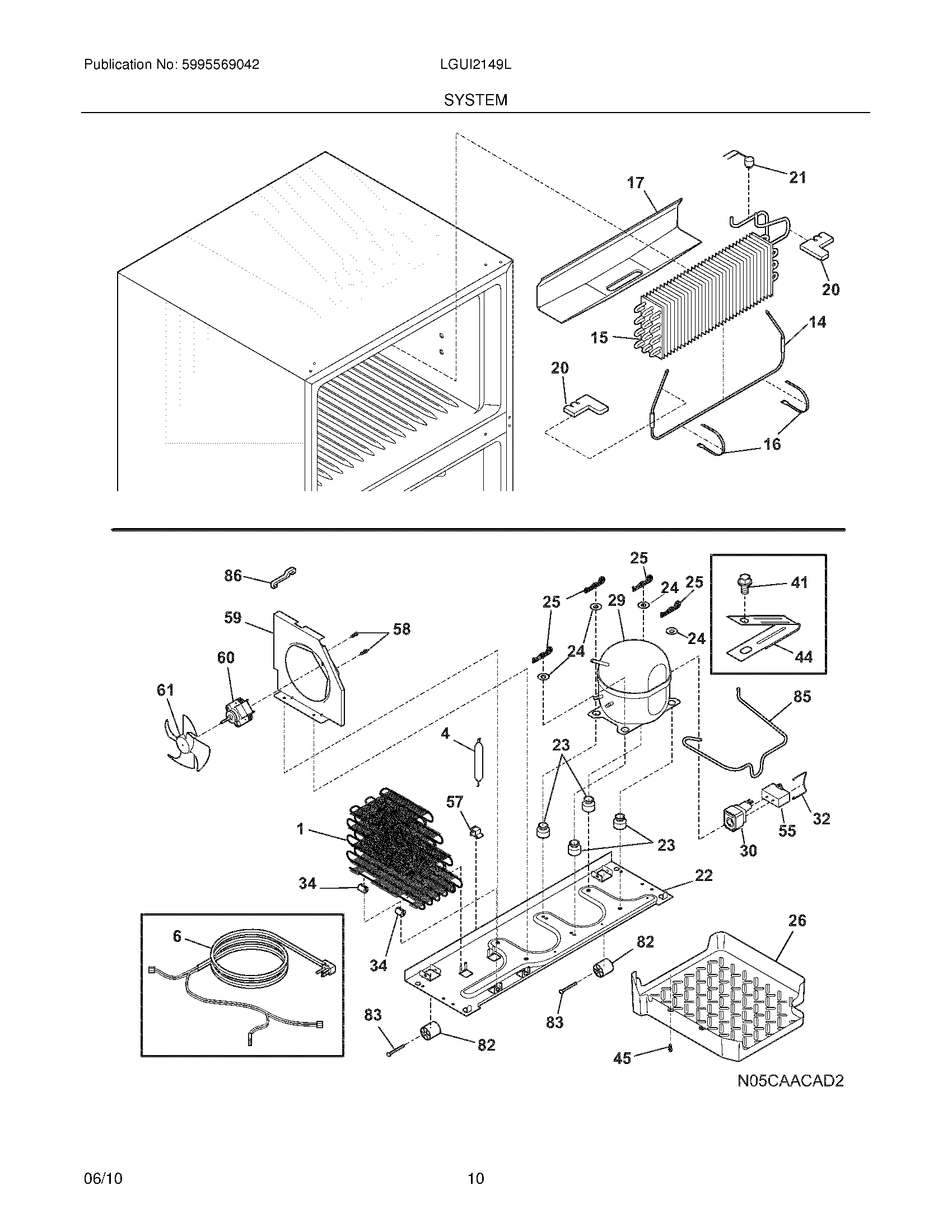

LGUI2149LE0 09 – SYSTEM

Products

PositionProduct
NI218252201 Frigidaire Refrigerator Screw
NI242081702 Frigidaire Refrigerator Wiring Harness
NI5303918327 Frigidaire Refrigerator Heat Exchanger Kit
NIWCI 5304421289
NI240346701 Frigidaire Refrigerator Foam Seal Tape
NIWCI 242085601
NI218709101 Frigidaire Refrigerator Handle Mounting Screw
NI240359403 Frigidaire Refrigerator Fan Shroud Screw
NI240396801 Frigidaire Refrigerator Tube Clamp
1241785405 Frigidaire Refrigerator Condenser
45303305677 Frigidaire Replacement Filter Dryer Filters
6241872701 Frigidaire Refrigerator Wiring Harness
14242044021 Frigidaire Refrigerator Defrost Heater
155303918274 Frigidaire Refrigerator P1-Evaporator Kit Os1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17241801301 Frigidaire Refrigerator Drain Trough
20241551902 Frigidaire Refrigerator Insulation Block
215303918202 Frigidaire Refrigerator Defrost Thermostat
22241665504 Frigidaire Refrigerator Compressor Base
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24241812301 Frigidaire Refrigerator Compressor Mount Washer
25242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26241697603 Frigidaire Defrost Pan
295304511982 Frigidaire Refrigerator Compressor Kit
30241941003 Frigidaire Refrigerator Relay Starter
32Clip,controller ,compressor
34240405201 Frigidaire Refrigerator Grommet
41240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
445303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455650 Frigidaire Refrigerator Screw
555304464438 Frigidaire Compressor Run Capacitor
57240542601 Frigidaire Clip-WIRING Harness
58240569202 Frigidaire Refrigerator Screw
59241946106 Frigidaire Refrigerator Shroud-Cond Fan
60297279500 Frigidaire Refrigerator Condenser Fan Motor
61241639502 Frigidaire Refrigerator Condenser Fan Blade
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
85241856901 Frigidaire Refrigerator Tube-Connector
86240409302 Frigidaire Refrigerator Condenser Tube Spacer
