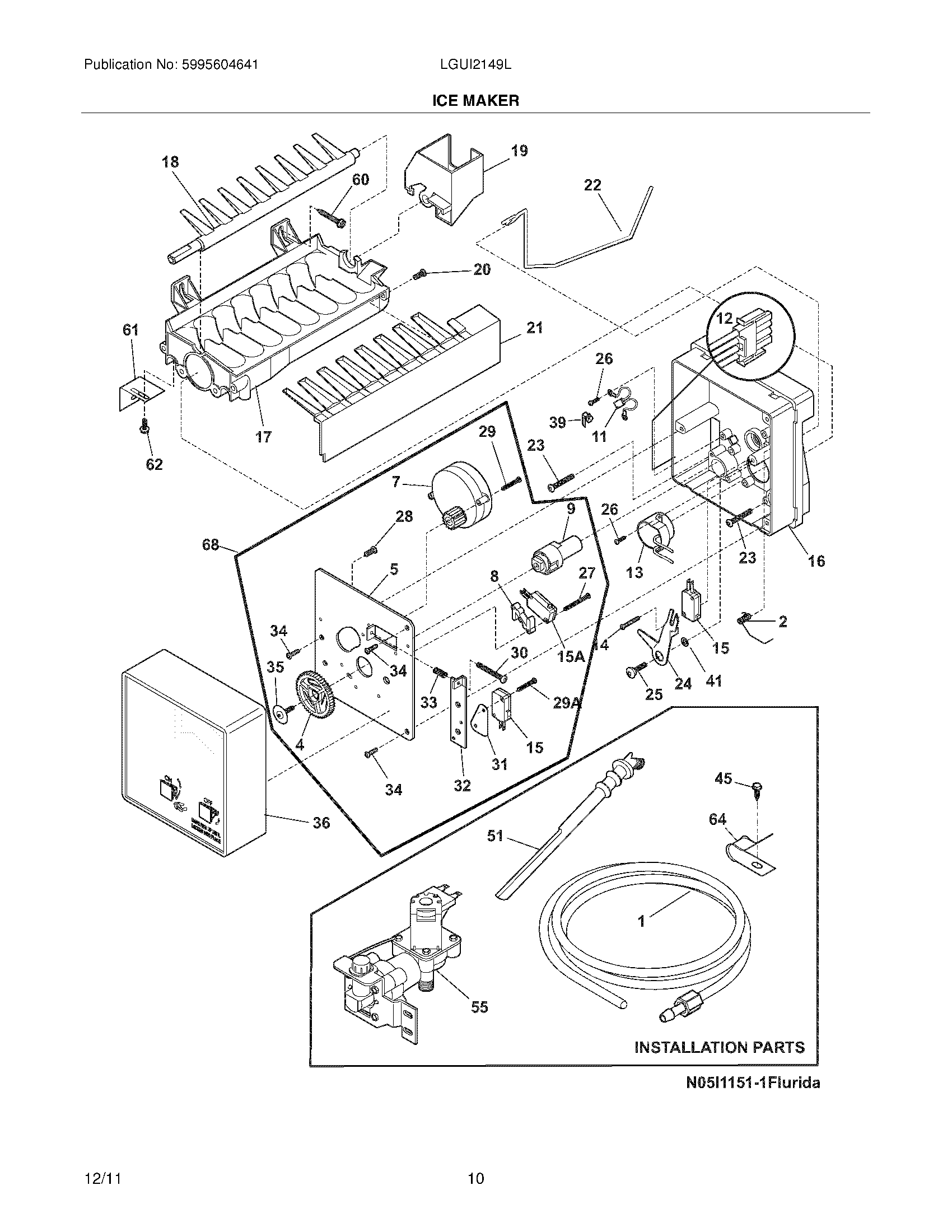

LGUI2149LP2 11 – ICE MAKER

Products

Position	Product
NI	241798231 Frigidaire Refrigerator Ice Maker Assembly
NI	240561701 Frigidaire Refrigerator Seal
NI	WCI 5304469406
NI	5304456693 Frigidaire Refrigerator Nut
NI	5304456692 Frigidaire Refrigerator Washer
NI	5304456689 Frigidaire Refrigerator Washer
1	241850615 Frigidaire Ice Maker Fill Tube Assembly
2	WCI 5304469396
4	5304469403 Frigidaire Gear
5	WCI 5304469399
7	5304469407 Frigidaire Refrigerator Ice Maker Motor
8	WCI 5304469404
9	WCI 5304469402
11	WCI 5304455695
12	WCI 5304469390
13	WCI 5304469387
14	Screw
15	WCI 5304469388
15A	WCI 5304469405
16	WCI 5304469379
17	5304469413 Frigidaire Refrigerator Mold-Ice Maker
18	WCI 5304469384
19	WCI 5304469386
20	5304480396 Frigidaire Screw
21	WCI 5304469378
22	WCI 5304469377
23	WCI 5304469392
24	WCI 5304469382
25	WCI 5304469397
26	WCI 5304469393
27	WCI 5304469410
28	218359202 Frigidaire Refrigerator Screw
29	WCI 5304469409
29A	Screw
30	Screw-timing adj
31	5304469389 Frigidaire Switch Spacer
32	WCI 5304469400
33	WCI 5304469401
34	WCI 5304469380
35	WCI 5304469411
36	WCI 5304469385
39	WCI 5304469383
41	WCI 5304469381
45	5304455650 Frigidaire Refrigerator Screw
51	241796405 Frigidaire Refrigerator Fill Water Tube
55	ICE MAKER WATER VALVE
60	218362501 Frigidaire Refrigerator Screw
61	218721500 Frigidaire Refrigerator Bracket-Leveling
62	WCI 5304469395
64	5304455846 Frigidaire Refrigerator Clamp
68	WCI 5304469398
