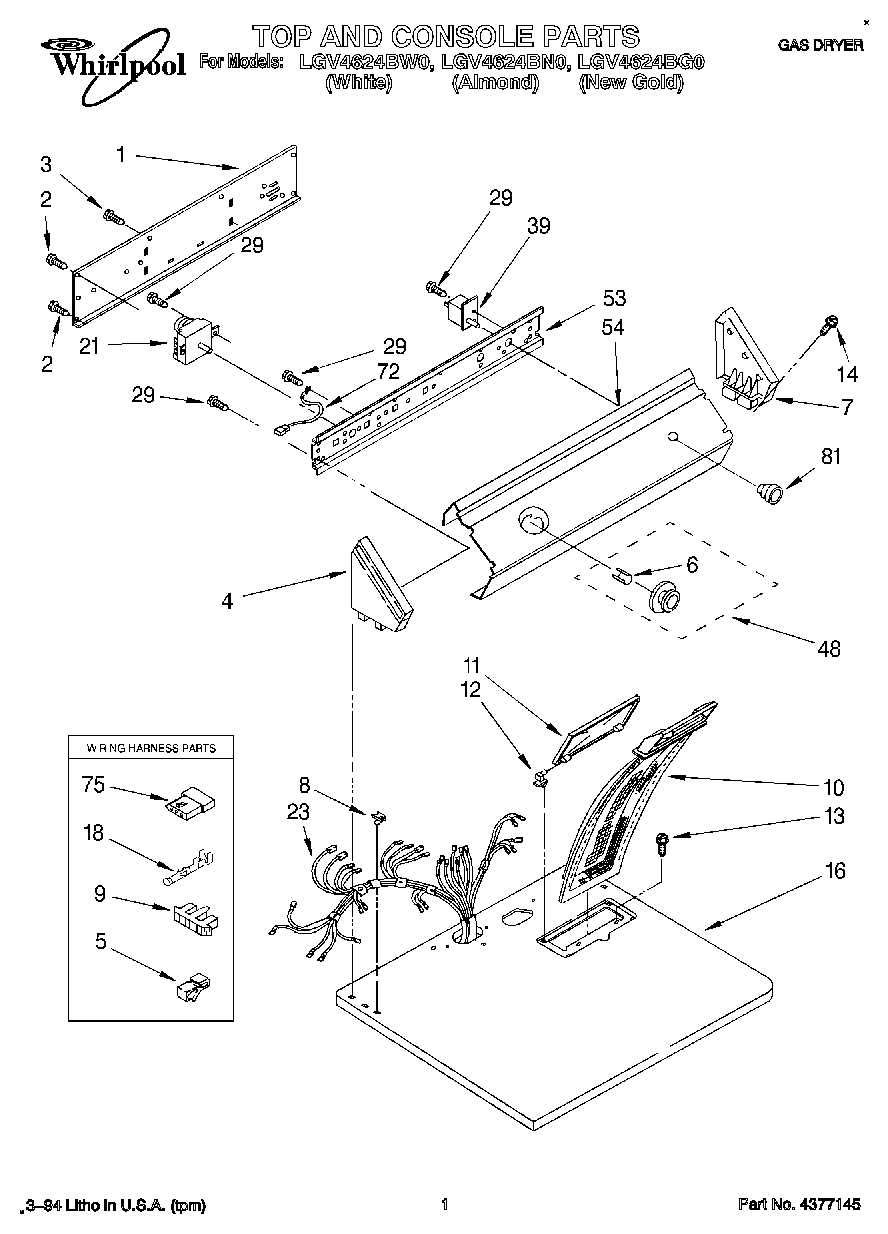

LGV4624BN0 01 – TOP AND CONSOLE, LIT/OPTIONAL
Written by
in
LGV4624BN0 01 – TOP AND CONSOLE, LIT/OPTIONAL
Products
Position
Product
350930 Whirlpool White Spray Paint
Leveler (Thinner)
Golden Harvest
Almond (Uncut)
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Instructions, Installation
Guide, Use & Care
Label, Wiring Diagram
Dryer
WP72107 Whirlpool Touchup
Golden Harvest (Uncut)
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
1
Panel, Rear Console
2
WP489069 Whirlpool Compactor Screw
3
WP693995 Whirlpool Screw
4
Cap, End (L.H.) (White)
4
Cap, End (L.H.) (Almond)
4
Cap, End (L.H.) (Black/Chrome)
5
Clip, Retainer
6
WP688805 Whirlpool Spring Clip
7
Cap, End (R.H.) (Almond)
7
WPL 3358518
7
Cap, End (R.H.) (White)
8
WP357213 Whirlpool Hinge Stopper
9
Connector, Timer
10
339392V Whirlpool Dryer Lint Filter Screen
11
Cover, Lint Screen (Almond)
11
Cover, Lint Screen (Golden Harvest)
11
Cover, Lint Screen (White)
12
WPW10044470 Whirlpool Hinge Assembly
12
WPW10044480 Whirlpool Hinge Assembly
13
W11693756 Whirlpool Screw Assembly
14
WP388326 Whirlpool Screw
16
Top (Almond)
16
Top (White)
16
Top (New Gold)
18
WP94614 Whirlpool Terminal
21
WP3976568 Whirlpool Timer
23
Harness, Wiring
29
WPW10139210 Whirlpool Screw
39
Switch, Push-To-Start
39
(Alt.)
48
WP3957752 Whirlpool Knob
53
Bracket, Control
54
Panel, Control (White Model)
54
Panel, Control (Almond Model)
54
Panel, Control (Gold Model)
72
Wire, Ground
75
Receptacle, 3-Way Terminal (Use W/94614)
81
Knob, Push-To-Start
81
Knob, Push To Start
←
