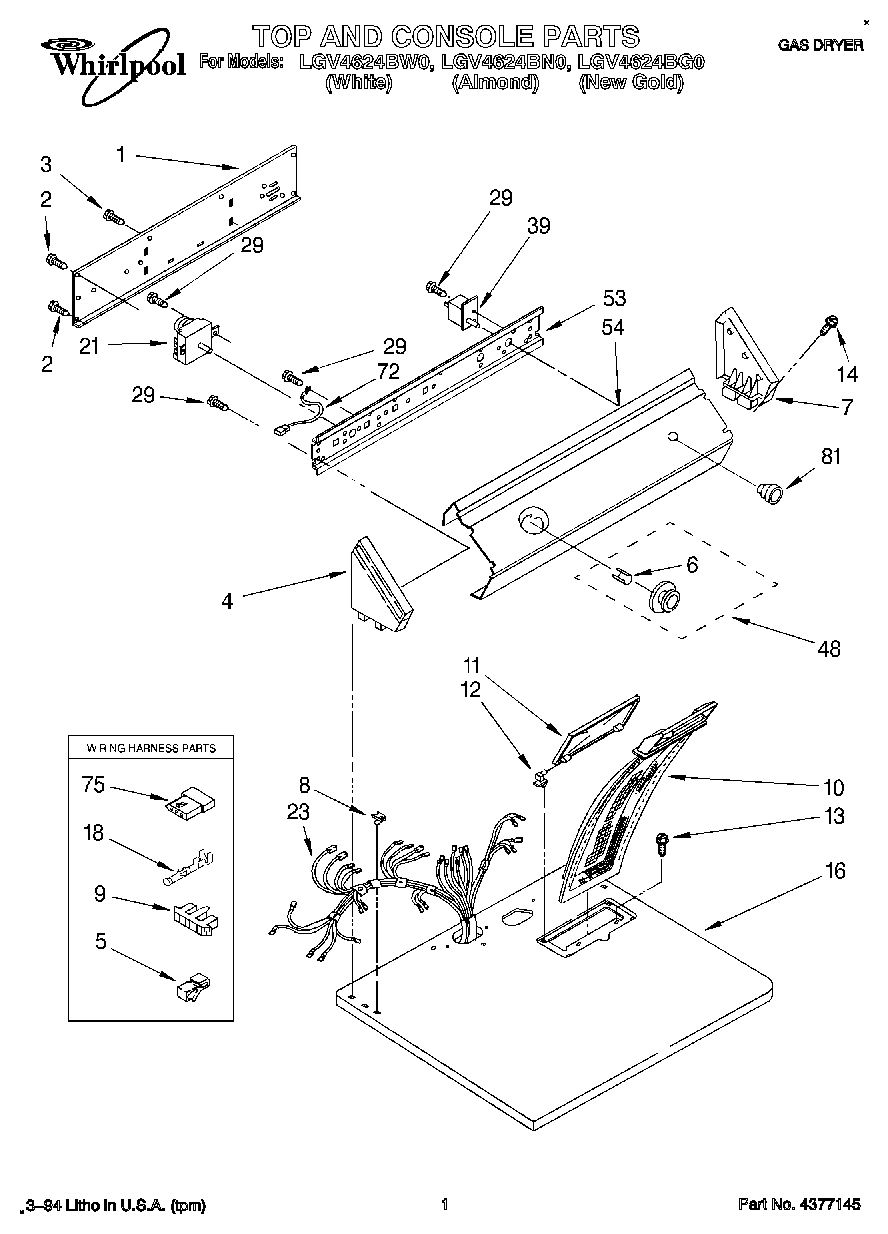

LGV4624BW0 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGV4624BW0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGV4624BW0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Leveler (Thinner)
Golden Harvest
Almond (Uncut)
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Instructions, Installation
Guide, Use & Care
Label, Wiring Diagram
Dryer
WP72107 Whirlpool Touchup
Golden Harvest (Uncut)
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
1Panel, Rear Console
2WP489069 Whirlpool Compactor Screw
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.) (Black/Chrome)
5Clip, Retainer
6WP688805 Whirlpool Spring Clip
7Cap, End (R.H.) (Almond)
7WPL 3358518
7Cap, End (R.H.) (White)
8WP357213 Whirlpool Hinge Stopper
9Connector, Timer
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
16Top (Almond)
16Top (White)
16Top (New Gold)
18WP94614 Whirlpool Terminal
21WP3976568 Whirlpool Timer
23Harness, Wiring
29WPW10139210 Whirlpool Screw
39Switch, Push-To-Start
39(Alt.)
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control (White Model)
54Panel, Control (Almond Model)
54Panel, Control (Gold Model)
72Wire, Ground
75Receptacle, 3-Way Terminal (Use W/94614)
81Knob, Push-To-Start
81Knob, Push To Start
