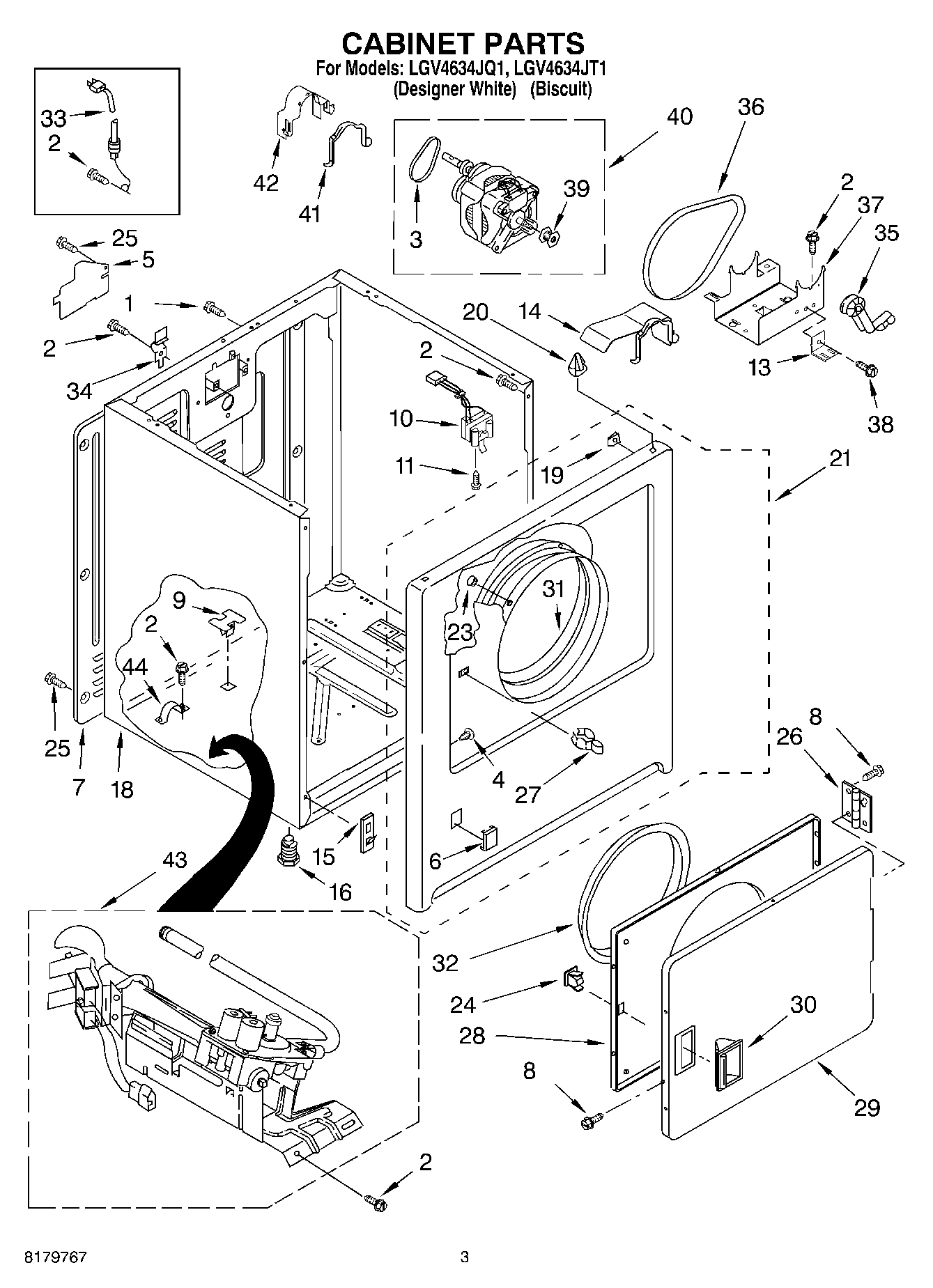

LGV4634JT1 02 – CABINET
Written by
in
LGV4634JT1 02 – CABINET
Products
Position
Product
1
W10850756 Whirlpool Screw
2
SCREW
3
WP3405160 Whirlpool Belt Assembly
4
Plug, Hinge Hole (4) (Biscuit)
4
WP3404413 Whirlpool Plug
5
W11539855 Whirlpool Refrigerator Pump
6
Plug, Front Panel (Biscuit)
6
Plug, Front Panel (White)
7
280040 Whirlpool Rear Panel
8
WP488627 Whirlpool Refrigerator Screw
9
Plug, Cabinet
10
WP3406105 Whirlpool Door Switch
11
WP3395530 Whirlpool Screw
13
3401805 Whirlpool Bracket
14
3401800 Whirlpool Shield
15
W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16
49621 Whirlpool Leveling Feet
18
8533643 Whirlpool Dryer White Cabinet
18
Cabinet (Biscuit)
19
WP98234 Whirlpool Nut
20
WP18776 Whirlpool Lock
21
Front Panel Assembly (White)
21
Front Panel Assembly (Biscuit)
23
279220 Whirlpool Clip
24
279570 Whirlpool Dryer Door Latch Kit
25
WP693995 Whirlpool Screw
26
WPW10362431 Whirlpool Hinge Assembly
28
Door, Rear
29
WP3403361 Whirlpool Door
29
WP3403363 Whirlpool Door
30
WP3405184 Whirlpool White Door Handle
30
WP3405189 Whirlpool Handle
31
279264 Whirlpool Bearing and Seal Kit
32
SEAL-DOOR DRYER
33
W11222083 Whirlpool Power Cord
34
WP8066217 Whirlpool Hinge
35
WP691366 Whirlpool Dryer Idler Pulley Assembly
36
341241 Whirlpool Dryer Drum Belt
37
3401801 Whirlpool Base Assembly
38
3400500 Whirlpool Screw
39
WP8066184 Whirlpool Dryer Motor Pulley
40
WPW10396039 Whirlpool Drive Motor
41
WP660658 Whirlpool Clamp
42
WP3404162 Whirlpool Clamp
43
W10823508 Whirlpool Gas Burner
44
341029 Whirlpool Clamp
←
