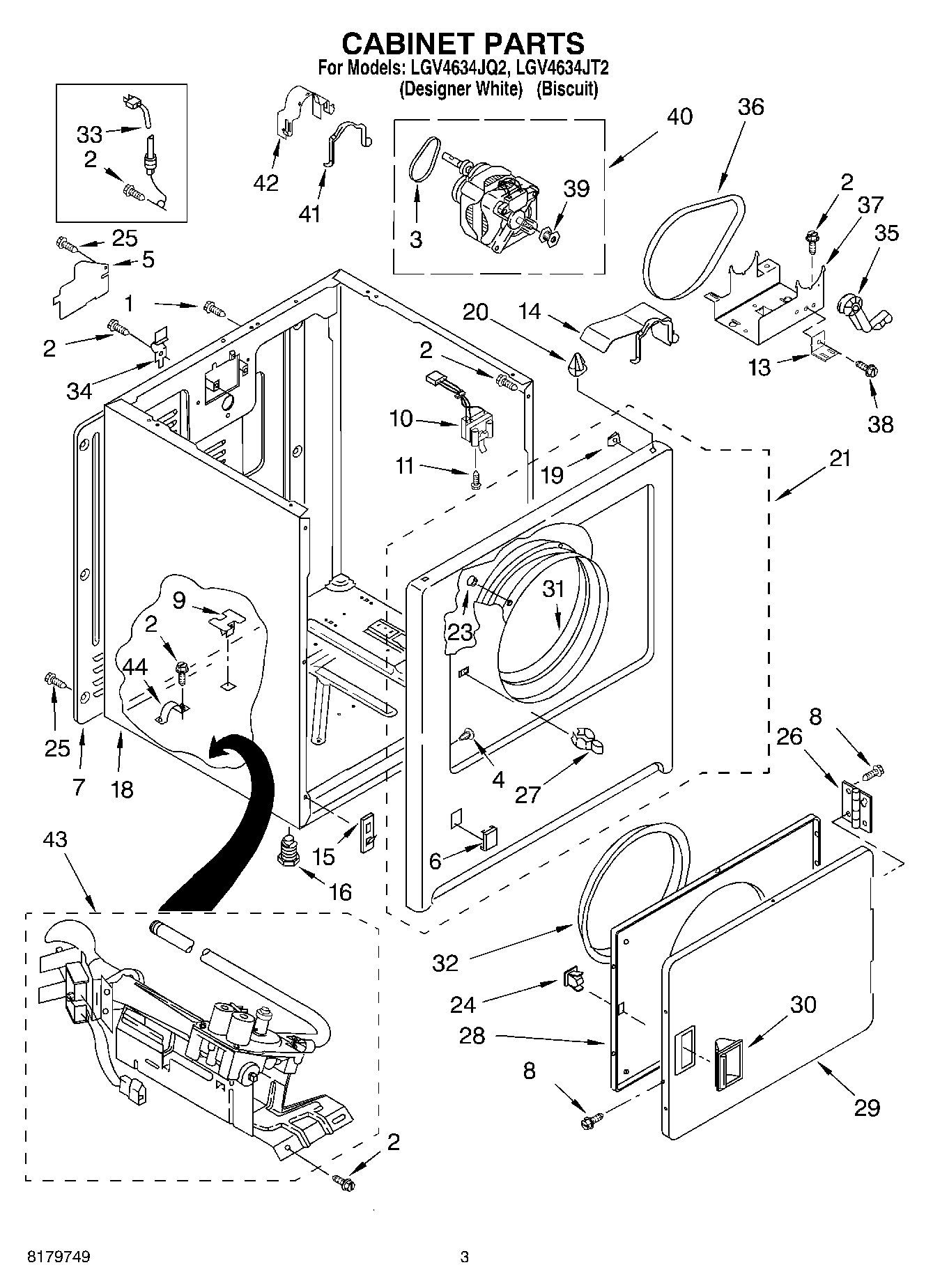

LGV4634JT2 02 – CABINET

LGV4634JT2 02 – CABINET

Written by

in

LGV4634JT2 02 – CABINET

Products

PositionProduct
1W10850756 Whirlpool Screw
2SCREW
3WP3405160 Whirlpool Belt Assembly
4Plug, Hinge Hole (4) (Biscuit)
4WP3404413 Whirlpool Plug
5W11539855 Whirlpool Refrigerator Pump
6Plug, Front Panel (Biscuit)
6Plug, Front Panel (White)
7280040 Whirlpool Rear Panel
8WP488627 Whirlpool Refrigerator Screw
9Plug, Cabinet
10WP3406105 Whirlpool Door Switch
11WP3395530 Whirlpool Screw
133401805 Whirlpool Bracket
143401800 Whirlpool Shield
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
188533643 Whirlpool Dryer White Cabinet
18Cabinet (Biscuit)
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Front Panel Assembly (White)
21Front Panel Assembly (Biscuit)
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
25WP693995 Whirlpool Screw
26WPW10362431 Whirlpool Hinge Assembly
28Door, Rear
29WP3403361 Whirlpool Door
29WP3403363 Whirlpool Door
30WP3405184 Whirlpool White Door Handle
30WP3405189 Whirlpool Handle
31279264 Whirlpool Bearing and Seal Kit
32SEAL-DOOR DRYER
33W11222083 Whirlpool Power Cord
34WP8066217 Whirlpool Hinge
35WP691366 Whirlpool Dryer Idler Pulley Assembly
36341241 Whirlpool Dryer Drum Belt
373401801 Whirlpool Base Assembly
383400500 Whirlpool Screw
39WP8066184 Whirlpool Dryer Motor Pulley
40WPW10396039 Whirlpool Drive Motor
41WP660658 Whirlpool Clamp
42WP3404162 Whirlpool Clamp
43W10823508 Whirlpool Gas Burner
44341029 Whirlpool Clamp
